10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps

10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-PII448L-xD

CONTACT US

Request A Quote
Product Details
Type:
Optical Transceiver
Use:
Network
Warranty Time:
1 Year
Network:
10G Ethernet
Power Source:
AC 220V
Connector Type:
LC
Power - Minimum Receivable:
3.3v
Frequency Range:
0-1
Product Name:
CC-PII448L-xD
Material:
Metal Housing
Application:
10G Ethernet
Cable Type:
Single Mode Fiber (SMF)
Receiver:
APD (Avalanche Photodiode)
Reach:
Up To 80km Over SMF
Data Rate:
Up To 11.3Gbps
Product Description
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 0

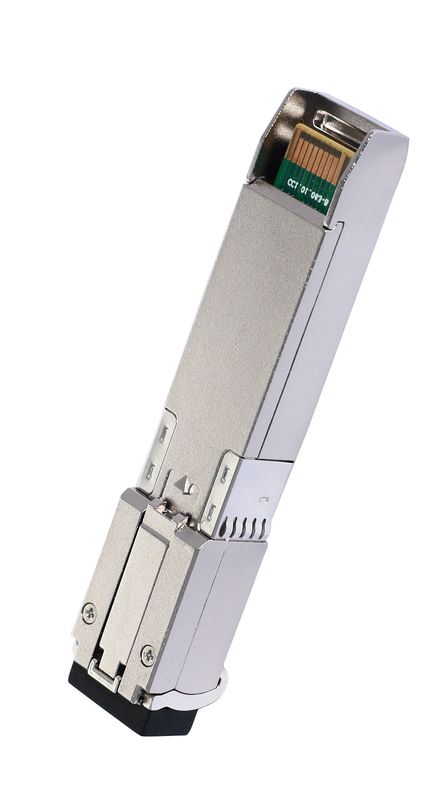

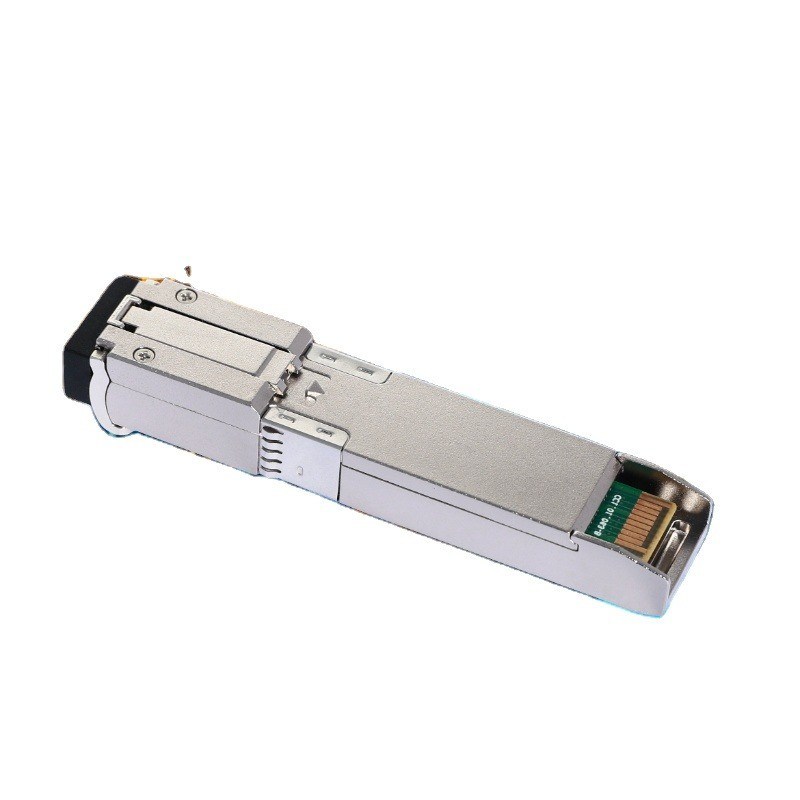

 10Gb/s 80km SFP+ Optical Transceiver Module CC-PII448L-xD

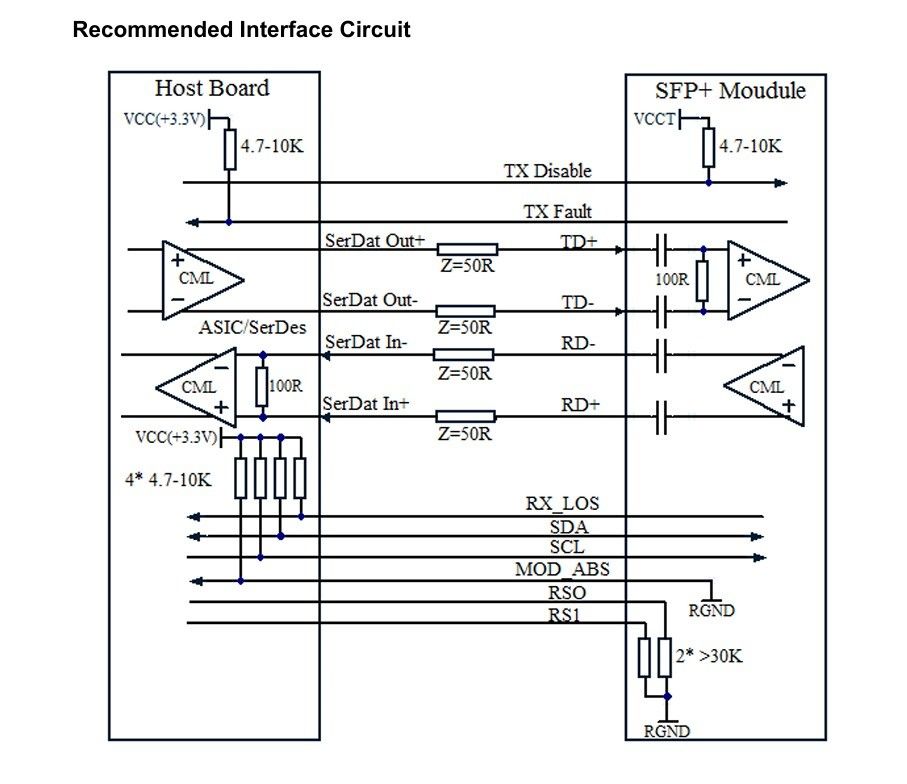

This 1550nm cooled EML 10Gbps SFP+ transceiver is designed to transmit and receive optical data in 10G Ethernet links over single mode optical fiber up to 80km. The SFP+ 80km module electrical interface is compliantto SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.



Standards

• SFF-8431/SFF-8472
• SFF-8432

Applications

•10G Ethernet
8.5G/10G Fiber Channel
• 10G SONET/SDH, OTU2/2e

Features
Hot Pluggable
LC Duplex optical interface
1550nm cooled EML transmitter, APD receiver
Support up to 11.3G bit rates
• Low power consumption<2w
Up to 80km SMF length
All-metal housing for superior EMI performance
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS compliant (lead free)
Operating case temperature Commercial: 0 to 70 °C Industrial: -40 to 85 °C


10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 1
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 2
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 3
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 4
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 5
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 6
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 7
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 8
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 9
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 10
10G SFP Module Ethernet Fiber Optical Transceiver 80km 11.3Gbps Time 1 year Data Rate Up to 11.3Gbps 11
