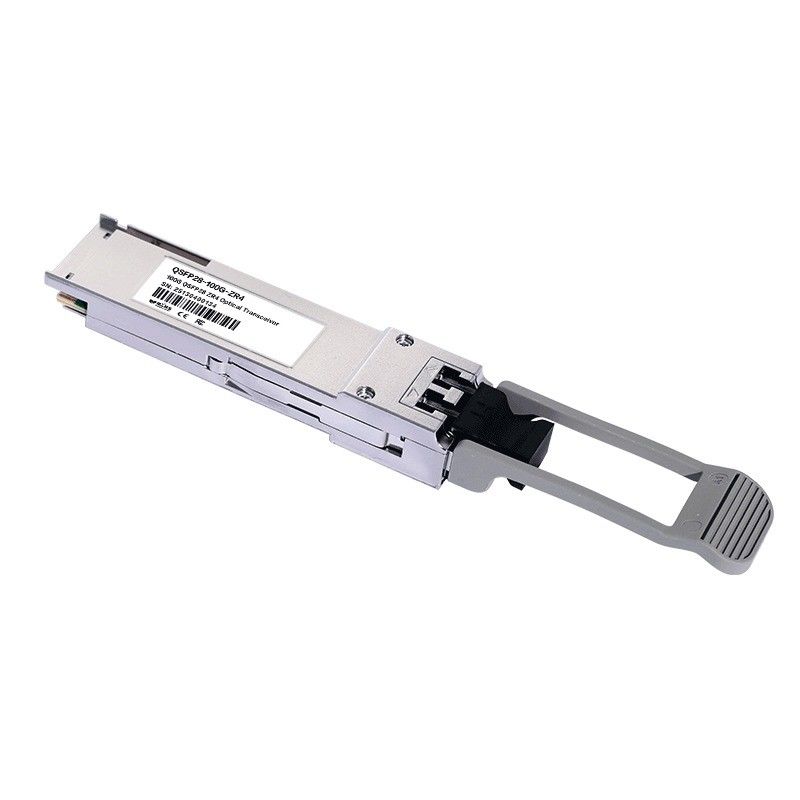

Name: 100G QSFP28 ZR4 LC Duplex Optical Transceiver 80km SFP28 LR4 103Gbps EML LAN-WDM Transceiver with Digital Diagnostics
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QKKLL8L-SD
Availability: InStock

Home > products > Starsurge >

100G QSFP28 ZR4 LC Duplex Optical Transceiver 80km SFP28 LR4 103Gbps EML LAN-WDM Transceiver with Digital Diagnostics

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QKKLL8L-SD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Data Center Fiber Optic Network

Warranty Time:

1 Year

Network:

Ethernet

Port:

Duplex LC Interface

Power Source:

Single 3.3V Power Supply

Connector Type:

LC Duplex

Frequency Range:

Based On 4x28Gbps

Transmission Distance:

80km (G.652 Single Mode Fiber)

Data Rate:

103Gbps

Laser Safety Class:

Class 1 (Compliant With FDA And IEC60825-1 Standards)

Operating Temperature:

-40°C ~ 85°C

Standard:

QSFP28 MSA Specification

Digital Diagnostic Function:

Supports I2C Interface Digital Diagnostic

Custom Attributes:

Suitable For 100GBASE-ZR4 Ethernet

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

100G QSFP28 ZR4 80km LAN-WDM Transceiver CC-QKKLL8L-SD

CC-QKKLL8L-SD is designed for 103 Gigabit Ethernet links over 80km single mode fiber. It is compliant with IEEE 802.3ba. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.

Applications

100GBASE-ZR4 Ethernet

Standards

 Compliant with QSFP28 MSA Specification

 Class 1 FDA and IEC60825-1 Laser Safety Compliant

Features

 Supports 103Gbps

 Up to 80km for G.652 SMF

 Single 3.3V Power Supply and Power dissipation < 7.5W

 4x28Gbps EML-based LAN-WDM cooling transmitter

 SOA+PIN and TIA array on the receiver side

 4x28Gbps retimed electrical interface

 Duplex LC receptacles

 Operating Case Temperature: -40°C ~85°C
