Name: Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QSS110M-SD
Availability: InStock

Home > products > Starsurge >

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QSS110M-SD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

High-Performance Computing Interconnect

Warranty Time:

1 Year

Network:

High-Speed Data Transmission Network

Port:

8 Independent Parallel Optical Channels

Power Source:

CML Compatible Electrical I/O

Connector Type:

MPO-16 APC Optical Receptacle

Power - Minimum Receivable:

<10W

Operating Temperature:

Commercial: 0°C To 70°C

Transmission Distance:

Up To 100m On OM4 Multi-mode Fiber

Data Rate:

Up To 26.56GBaud Per Channel

Compliance:

QSFP-DD MSA CMIS 4.0 RoHS II

Optical Technology:

850nm VCSEL/PD Array Technology

Fiber Type:

OM4 Multi-mode Fiber

Monitoring Features:

Temperature And Module Supply Monitoring

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

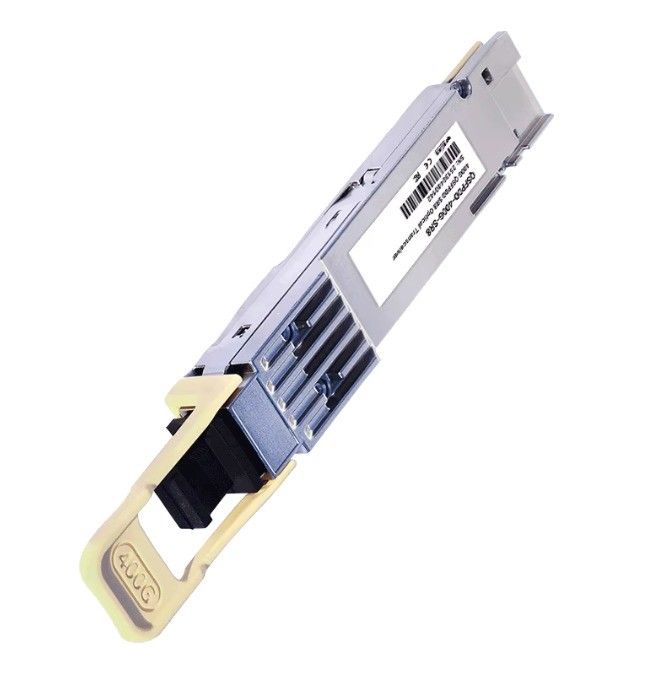

400G QSFP-DD SR8 Optical Transceiver CC-QSS110M-SD

CC-QSS110M-SD is a QSFP-DD Optical transceiver for 8 x 26.56GBaud optical links. It is compliant with the QSFP-DD MSA specifications. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber.

Applications

 High performance computing interconnect

 Data center

Features

 8 independent parallel optical channels

 Each channel data rate up to 26.56GBaud with CDR

 Hot Pluggable

 Up to 100m link on OM4 Multi-mode

 850nm VCSEL/PD Array Technology

 CML Compatible electrical I/O

 QSFP-DD MSA Compliance

 Optical connectivity via industry standard MPO/ MTP terminated fiber ribbon

 MPO-16 APC Optical Receptacle Type

 CMIS 4.0 Compliance

 Monitors for VCSEL bias, transmitted, received power , module

 temperature, and module supply

 Case Operating Temperature: Commercial: 0 to 70ºC

 RoHS II Compliance
