Name: 200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QRRAOCX-SD
Availability: InStock

Home > products > Starsurge >

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QRRAOCX-SD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

High-performance Computing Interconnect

Warranty Time:

1 Year

Network:

Optical Network

Port:

QSFP56

Power Source:

CML Compatible Electrical I/O

Connector Type:

QSFP56 Connector

Frequency Range:

26.56 GBaud

Optical Cable Type:

OM3 / OM4 Multi-mode Fiber

Number Of Channels:

4 Independent Parallel Optical Channels

Data Rate Per Channel:

Up To 26.56 GBaud

Maximum Transmission Distance:

Up To 100m Over OM4 70m Over OM3

Operating Temperature Range:

0 To 70 (Commercial)

Compliance Standards:

QSFP56 MSA SFF8636 RoHS II

Target Industries:

Data Centers And High-Performance Computing

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

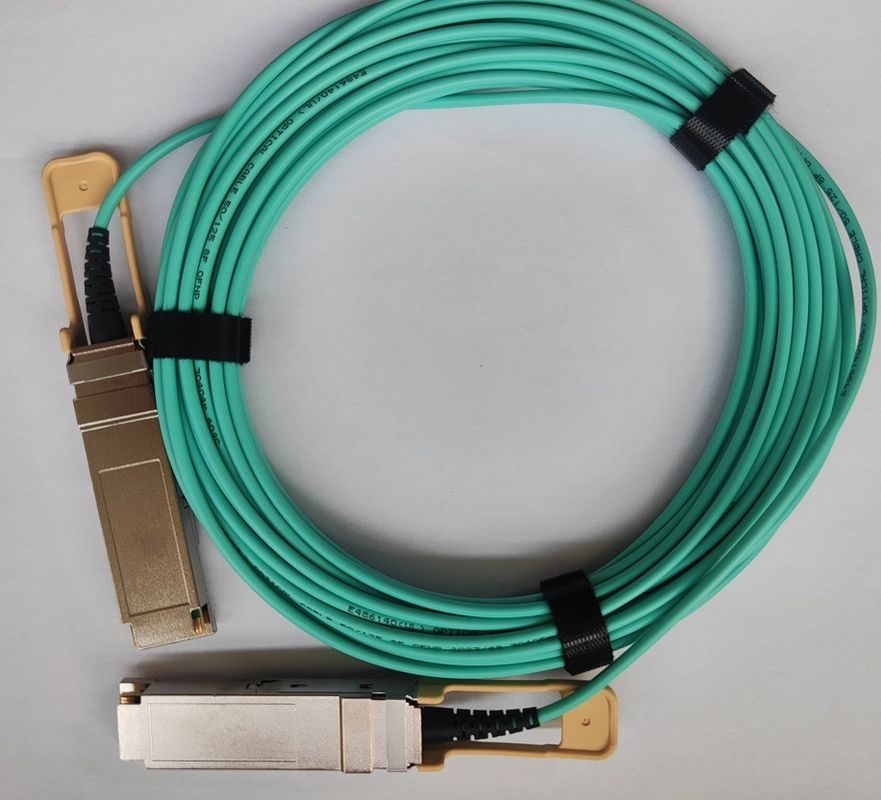

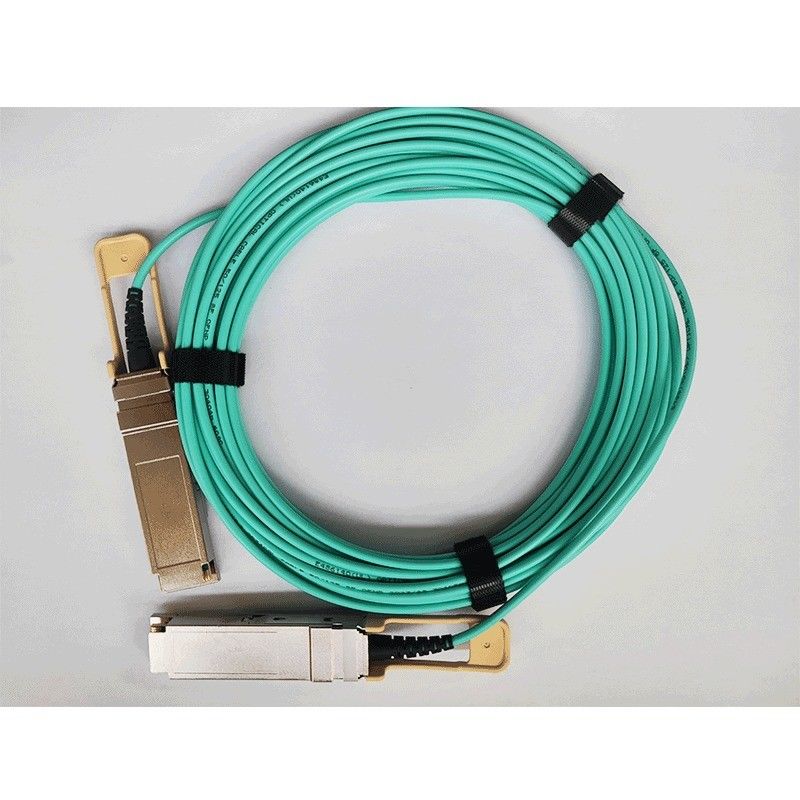

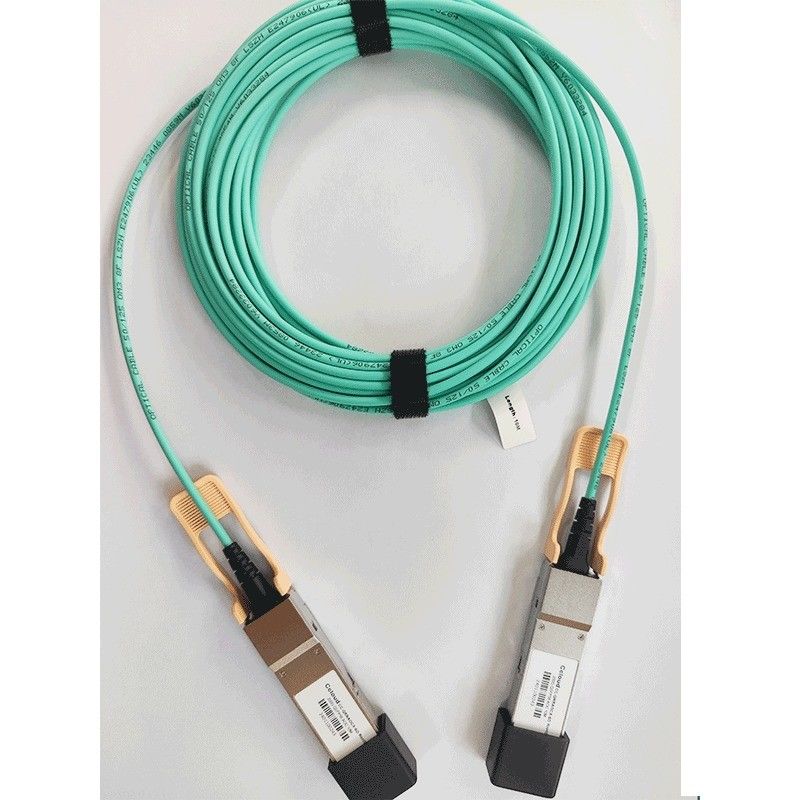

200G QSFP56 Active Optical Cable CC-QRRAOCX-SD

The CC-QRRAOCX-SD is an active optical cable (AOC) for 4 x 26.56GBaud optical links. It is compliant with the QSFP56 MSA specifications. It operates at 26.56GBaud and the cable length is up to 100m .

Applications

 High performance computing interconnect

 Data center

Features

 4 independent parallel optical channels

 Each channel data rate up to 26.56GBaud

 Hot Pluggable

 Up to 100m link over OM4 Multi-mode and 70m link over OM3 Multi -mode

 CML Compatible electrical I/O

 Case Operating Temperature Range: Commercial: 0 to 70ºC

 RoHS II Compliance

 Fiber Cable: Use OFNP Jacket (Aqua Colored Jacket)

 QSFP56 MSA Compliance

 SFF8636 Compliance
