Name: Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QSFD04DR4-12D
Availability: InStock

Home > products > Starsurge >

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QSFD04DR4-12D

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Data Center

Warranty Time:

1 Year

Network:

400GBASE - DR4

Port:

MPO-12 Connector With 8° Angled End-face

Power Source:

Power Consumption <8 W

Connector Type:

MPO-12

Frequency Range:

53.125GBd PAM4 26.5625GBd PAM4

Transmission Distance:

Up To 500m Over Single Mode Fiber

Operating Temperature:

0 To 70

Management Interface:

CMIS 4.0

Compliance:

QSFP-DD MSA Compliant IEEE 400GBASE-DR4 Compliant

Modulation Format:

PAM4 Pulse Amplitude Modulation 4 - Level

Transmission Standard Compatibility:

Compatible With IEEE 400GBASE - DR4

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

400G DR4 QSFP-DD Transceiver CC-QSFD04DR4-12D

CC-QSFD04DR4-12D-MF000, 400GBASE-DR4, hot pluggable optical transceiver is a high-performance solution for 400GE links for up to 500 m over single mode fiber (SMF) with MPO-12 connector. It combines 8x 26.5625 GBd PAM4 electrical lanes into 4x 53.125 GBd PAM4 optical channels in compliance with IEEE 400GBASE-DR4. Superior performance and reliability is achieved through YSOD’s advanced transmitter and receiver design using cooled 4x EA-DFB-LDs and 4x PIN PDs.

Applications

 Data Center 400GE 500 m SMF links

 400GE to 4x 100GE breakout over 500 m

 Switch/Router interconnections

Features

 Aggregation Mode

400GBASE-DR4 compliant 4x 53.125GBd PAM4

400GAUI-8 compliant 8x 26.5625 GBd PAM4

 Breakout Mode

4x 100GBASE-DR compliant 53.125GBd PAM4

100GAUI-2 compliant 2x 26.5625 GBd PAM4

 QSFP-DD MSA compliant

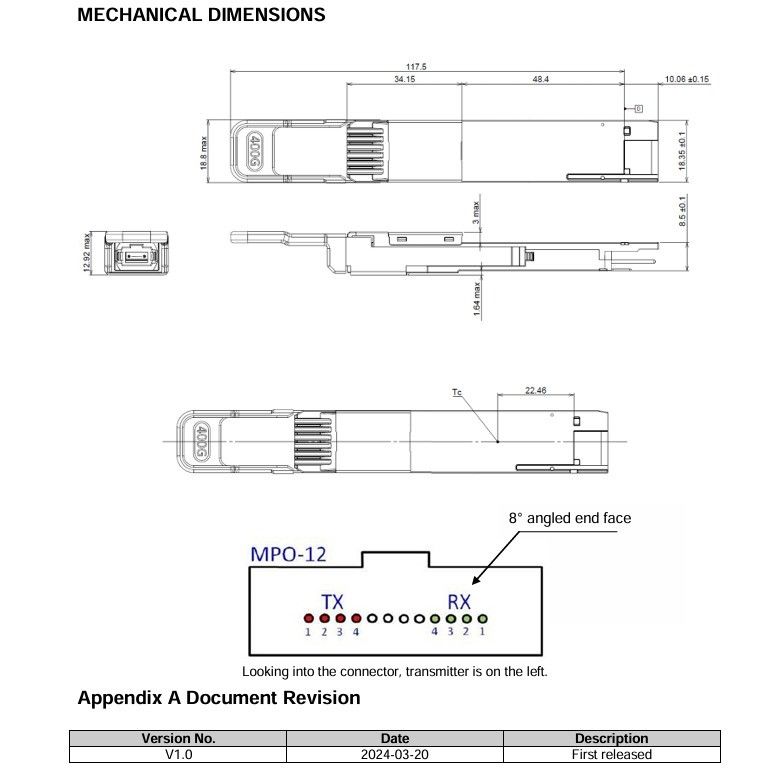

 MPO-12 connector with 8° angled end-face

 Power consumption<8 W (Target)

 Operating case temperature 0 to 70 ºC

 CMIS 4.0 management interface

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Q1.What can you buy from us?

Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.

Q2.How about the delivery date?

It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

We supply 12 months warranty time.

Q4.How about the Shipping Method?

We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7.Price questions

The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
