Name: Ethernet Network Connection Solution 400G QSFP112 DR4 Optical Transceiver for Single-Mode Fiber Transmission up to 500m
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QSFP04DR4-12D
Availability: InStock

Home > products > Starsurge >

Ethernet Network Connection Solution 400G QSFP112 DR4 Optical Transceiver for Single-Mode Fiber Transmission up to 500m

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QSFP04DR4-12D

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

High-Performance Computing Interconnect

Warranty Time:

1 Year

Network:

Ethernet

Port:

QSFP112 Port

Connector Type:

MPO-12 APC Optical Interface

Transmission Rate:

4x106.25 Gb/s Electrical Interface, Aggregated Rate Of 400 Gb/s

Transmission Distance:

Up To 500 Meters Over Single-Mode Fiber (SMF)

Technology Type:

Silicon Photonics Integrated Solution

Support:

Hot-Pluggable

Product Model:

CC-QSFP04DR4-12D

Product Features:

High-Density 400G Ethernet Connectivity Solution

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

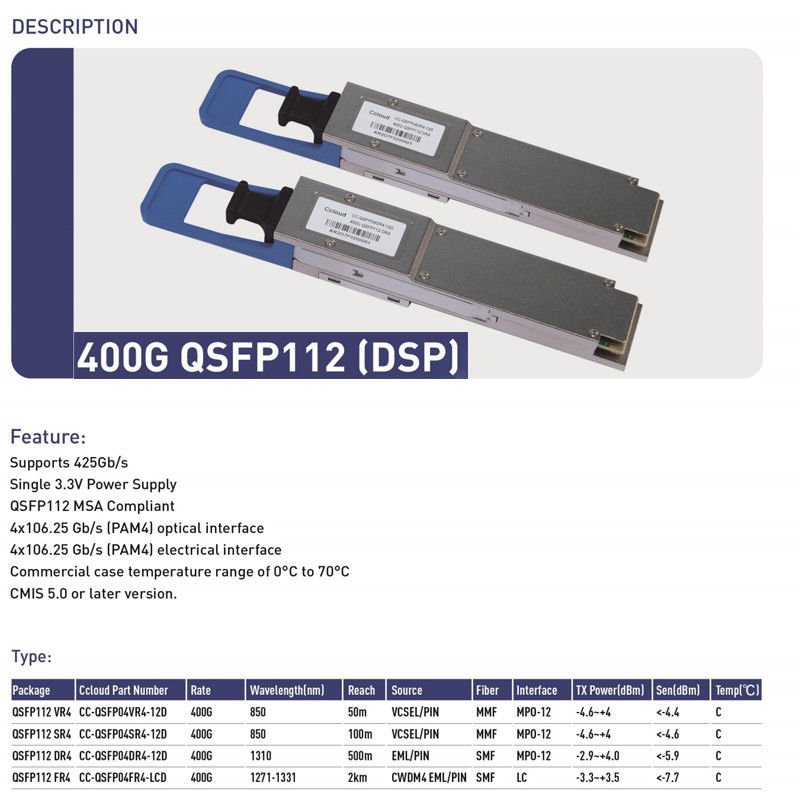

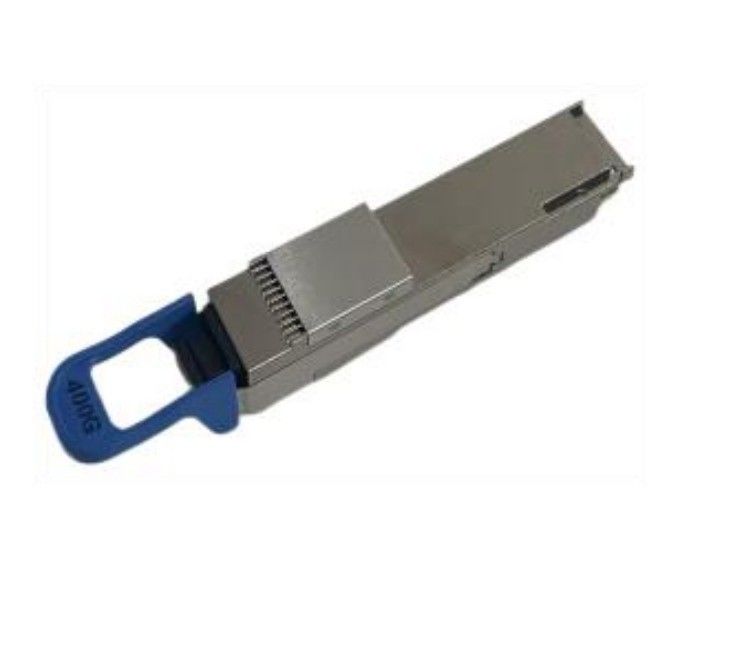

400G QSFP112 DR4 Optical Transceiver CC-QSFP04DR4-12D

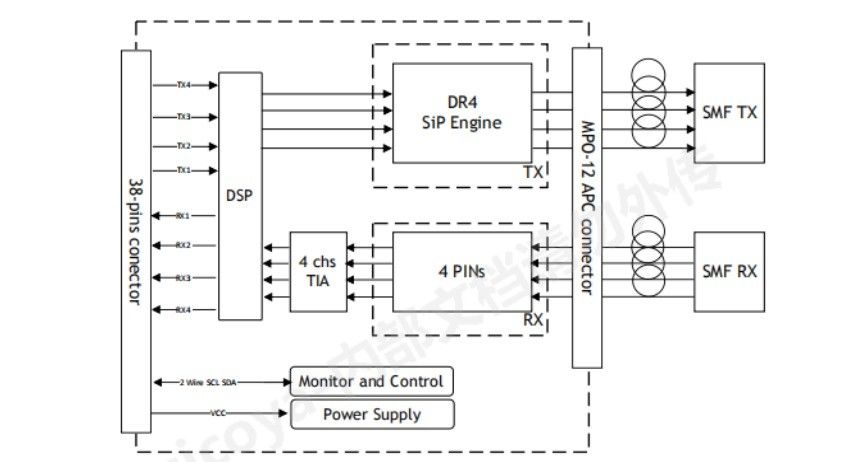

CC-QSFP04DR4-12D optical transceiver is a full duplex, silicon-photonics-based optical transceiver that provides a high-speed link at an aggregated data rate of Gigabit per second (Gb/s)over 500 meters on single-mode fibers (SMF). This product offers a high-density 400 Gb/s Ethernet connectivity solution for data centers, high-performance computing networks, enterprise core and distribution lavers, and service provider transport applications. Our transceiver modules are designed to meet commercial temperature application environments and to be compliant with all applicable standards.

Applications

 Data centers and cloud networks

 400G Ethernet

Features

 Silicon photonics integrated solution

 Hot-pluggable QSFP112

 MPO-12 APC

 Up to 500 meters reach on single-mode fiber

4x106.25 Gb's electrical interface
