Name: Bandwidth 400G Ethernet Network OSFP SR4 Multimode Fiber Transceiver Module with Hot-Plug Digital Diagnostic Functions
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-OSFP04SR4-12D
Availability: InStock

Home > products > Starsurge >

Bandwidth 400G Ethernet Network OSFP SR4 Multimode Fiber Transceiver Module with Hot-Plug Digital Diagnostic Functions

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-OSFP04SR4-12D

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

High-Performance Computing Interconnect

Warranty Time:

1 Year

Network:

400G Ethernet, InfiniBand

Port:

OSFP Interface

Power Source:

Max Power Consumption 8.5W (4 Channels), 6.5W (2 C

Connector Type:

MPO-12 APC

Transmission Distance:

Up To 70m Reach On OM3, Up To 100m Reach On OM4

Operating Temperature:

0°C To 70°C

Compliance Standards:

OSFP MSA, RoHS Compliant, CMIS Rev 5.0 And Above

Supported:

Hot-pluggable

Modulation:

4-channels Of 100G-PAM4 Electrical And Optical Modulation

Special Features:

Can Be Used As A 200Gb/s NDR200 Transceiver With A 2-fiber Splitter

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

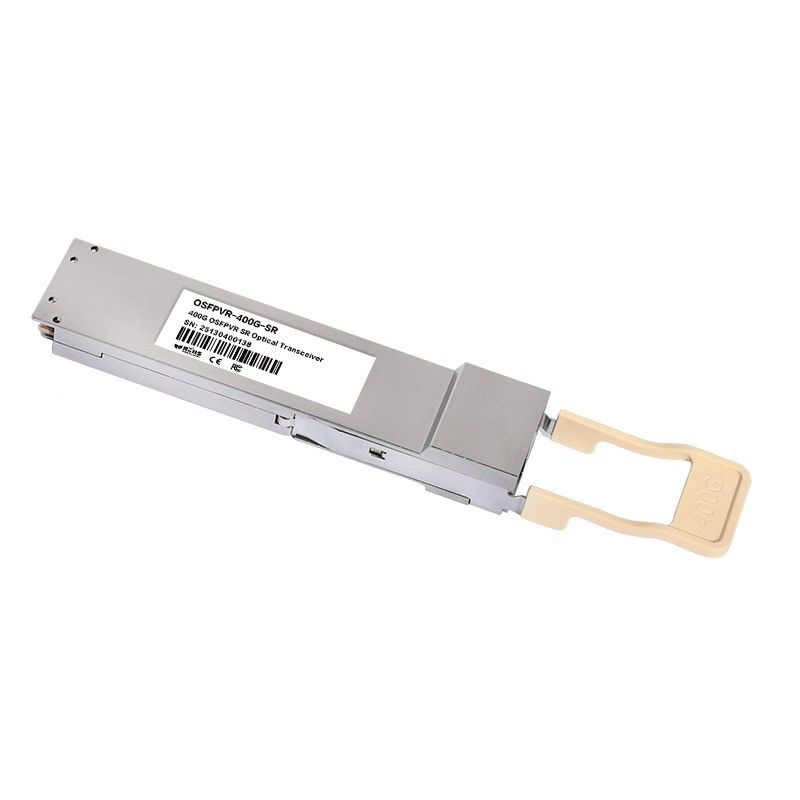

400G OSFPSR4Transceiver CC-OSFP04SR4-12D

CC-OSFP04SR4-12D OSFP transceiver modules are designed for use in 400 Gigabit Ethernet or InfiniBand links up to 100m multi-mode fiber. They are compliant with the OSFP MSA, IEEE P802.3db/D3.0 and IEEE P802.3ck . Digital diagnostic functions are available via
the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Applications

 InfiniBand NDR

 400GSR4applications with FEC

 4x100GbEbreakoutapplication

Features

 Hot-pluggable OSFP400G SR4 multimode transceiver

 Compliant with OSFP RHS

 Compliant with CMIS Rev 5.0and above revision

4-channels of 100G-PAM4 electrical and optical modulation

 Maximumpowerconsumption 8.5W with 4 channels and 6.5W with 2 channels
 Single MPO-12 APCreceptacles

 Upto70mreachonOM3and100mreach on OM4

 Operates as a200Gb/s NDR200 transceiver with 2-fiber splitter ends

 Caseoperating temperature 0°C to 70°C
