Name: 400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QCS110M-SD
Availability: InStock

Home > products > Starsurge >

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QCS110M-SD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Data Center Optical Interconnects

Warranty Time:

1 Year

Network:

Fiber Optic Network

Port:

MPO-12

Power Source:

Single +3.3V Power Supply

Connector Type:

MPO-12 APC Optical Interface

Operating Temperature:

0°C To +70°C

Center Wavelength:

850nm

Data Rate:

400Gbps(4x 106.25Gbps)

Product Type:

QSFP112 Optical Transceiver

Compliance Standards:

RoHS 6/6, QSFP112 MSA, CMIS4.0

Housing Material:

Metal

Packaging Information:

Original Factory Packaging With Anti-static Bag

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

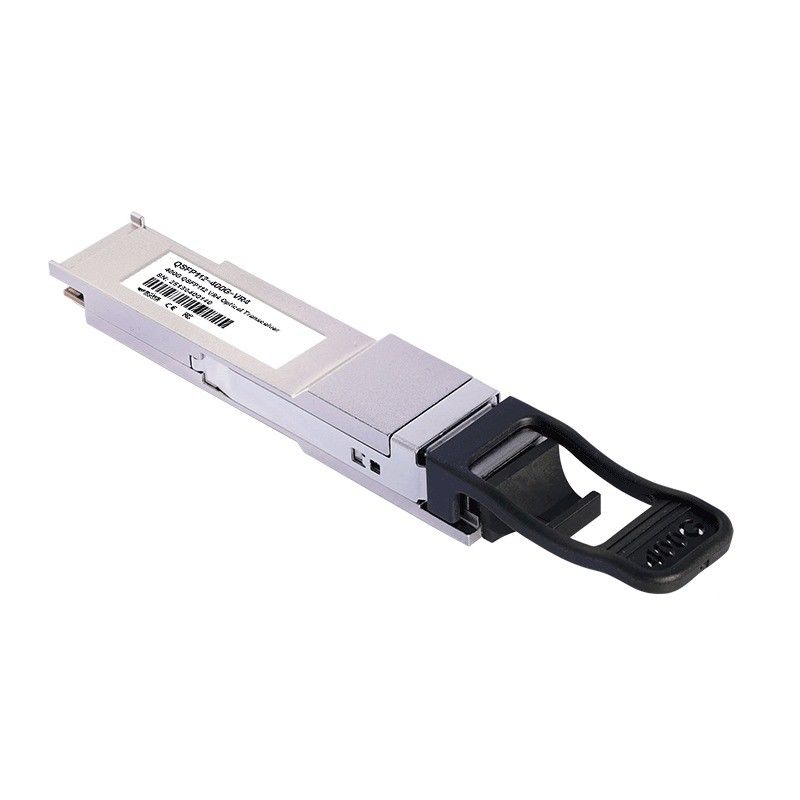

400G QSFP112 100m SR4 Transceivers CC-QCS110M-SD

This module is a hot pluggable fiber optic transceiver in the QSFP form factor with digital diagnostics monitoring functionality (DDM) and control function. The 400G QSFP112 SR4 module has four identical and independent lanes which provides a point-to-point 400Gb/s link over OM4 multimode fiber up to 100m. This makes it an ideal low-cost solution for short reach data center optical interconnects.

The central wavelength of each lane is at 850nm wavelength. The low power consumption and excellent EMI performance enable system design with high port density. The product is designed and tested in accordance with industry safety standards.

The transceiver is Class 1 Laser product per U.S. FDA/CDRH and IEC 60825-1:2007 & IEC 60825-2:2004+A1+A2standards. The transceiver can be conveniently assembled into and released from the host system through the latch.

The transceiver operates from a single +3.3V power supply over an operating case temperature range of 0oC to +70oC. The housing is made of metal for EMI immunity.

Features

 Support 100GBASE per lane in multimode fiber

 Hot-pluggable QSFP112 Type 1 form factor

 Data rate up to 425Gbps (4x 106.25Gbps )

Reach up to 100m on MMF(OM4)

850nm VCSEL laser and PIN receiver

High speed I/O electrical interface (400GAUI-4)

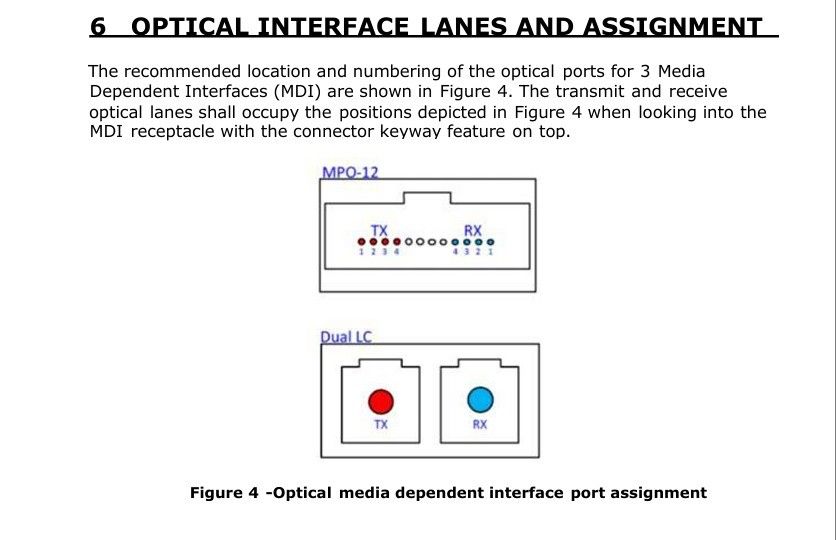

Single MPO-12 receptacle

Operating case temperature: 0 to +70°C

Compliant to RoHS 6/6

Compliant to 400G QSFP112 MSA and CMIS4.0
