Name: Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-PII110L-xD
Availability: InStock

Home > products > Starsurge >

Fiber Type Multi Mode Fiber OM3 network 10G SFP 850nm 300m LC Optical Transceiver Module for Data Center

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-PII110L-xD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Network

Warranty Time:

1 Year

Network:

Data Center SFP Industrial Network

Product Name:

CC-PII110L-xD

Technology:

10GBASE-SR/SW

Max Speed:

300m On OM3 MMF

Working Temperature:

0~+70 (Commercial) / -40~+80 (Industrial)

Fiber Type:

Multi Mode Fiber (OM3)

Application:

Data Center Short-Range Fiber Links

Material:

All-Metal Housing

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

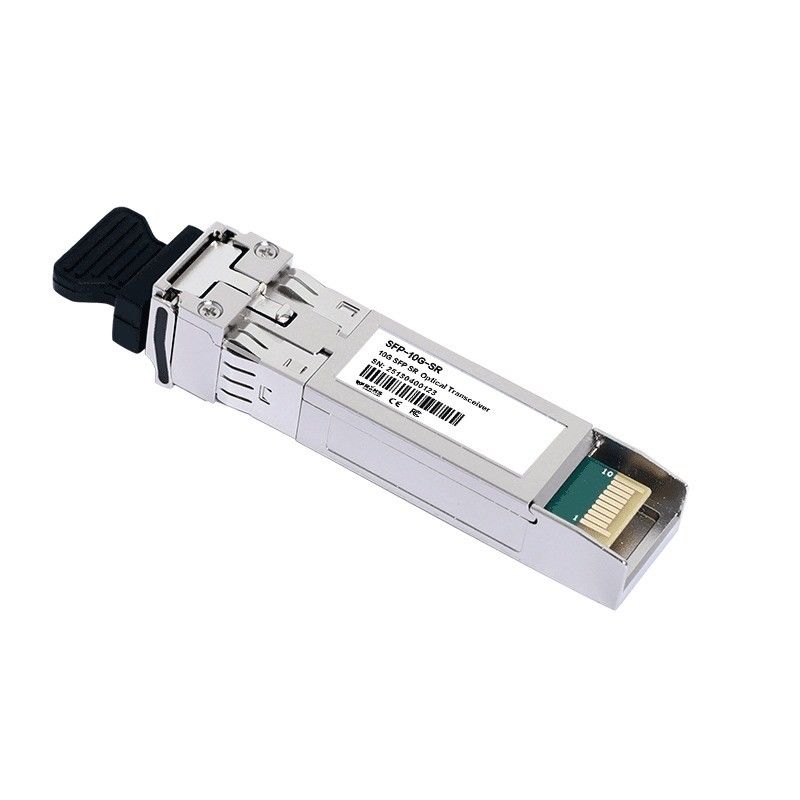

10Gb/s 850nm 300m SFP+ Optical Transceiver Module CC-PII110L-xD

This 850nm SFP+ transceiver is designed to transmit and receive optical data over

multimode fiber for 10G ethernet. The module

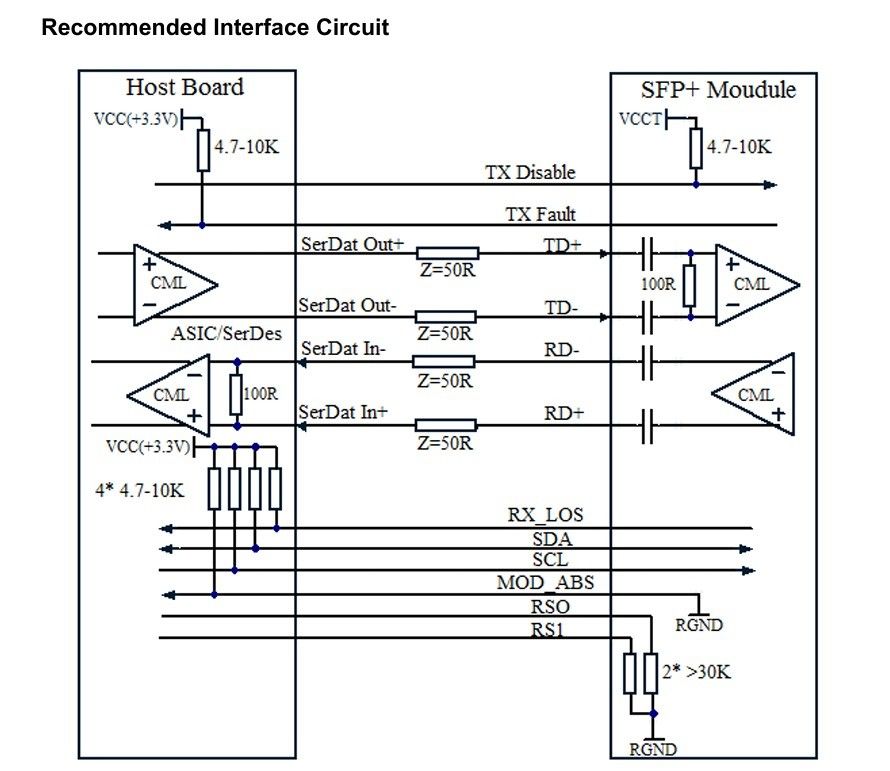

electrical interface is compliant to SFI electrical specifications. The transmitter

input and receiver output impedance is 100

Ohms differential. Data lines are internally AC coupled. The module provides

differential termination and reduce differential to

common mode conversion for quality signal termination and low EMI.

Standards

 IEEE 802.3ae 10GBASE-SR/SW

 SFF-8431, SFF-8432

 SFF-8472

Applications

 10GBASE-SR/SW

 Other optical links

Features

 Hot Pluggable

 LC Duplex optical interface

 850nm VCSEL transmitter, PIN receiver

 Operating case temperature: Commercial:0 to 70 °C Industrial:-40 to 85 °C

 Low power consumption

 Maximum link length of 300m on OM3 MMF

 All-metal housing for superior EMI performance

 Advanced firmware allow customer system encryption

 Information to be stored in transceiver

 Cost effective SFP+ solution, enables higher port densities and greater bandwidth

 RoHS compliant (lead free)
