Name: Seamless Networking Solutions with 10Gb/s SFP Bidirectional Optical Transceiver Module and OTU2/OTU2e at Up to 80km Reach
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-PII348L-xD/CC-PII438L-xD
Availability: InStock

Home > products > Starsurge >

Seamless Networking Solutions with 10Gb/s SFP Bidirectional Optical Transceiver Module and OTU2/OTU2e at Up to 80km Reach

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-PII348L-xD/CC-PII438L-xD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Network

Warranty Time:

1 Year

Transmitter & Receiver:

EML Transmitter (1490nm) / APD Receiver (1550nm)

Application:

10G Ethernet, 10G SONET/SDH, OTU2/OTU2e

Material:

Metal Housing

Operating Temperature:

Commercial: 0°C To 70°C Industrial: -40°C To 85°C

Cable Type:

Single Mode Fiber (SMF)

Interface Type:

LC Duplex

Reach:

Up To 80km

Data Rate:

10Gbps (Bidirectional)

Power Consumption:

<2W (Single +3.3V Supply)

Power Consumption:

<2W (Single +3.3V Supply)

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

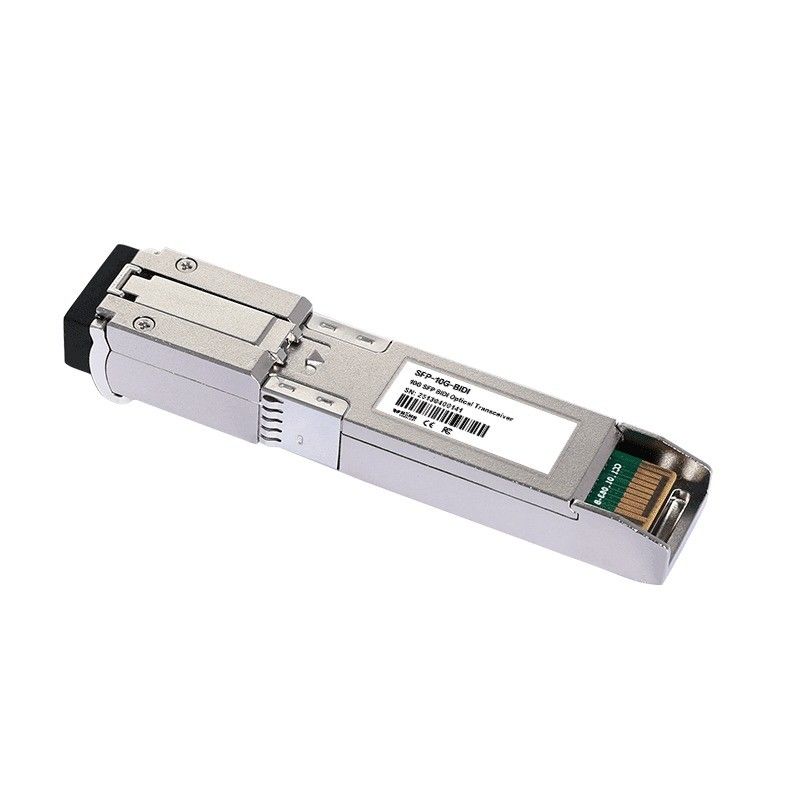

10Gb/s 80km SFP+ Bidirectional Optical Transceiver Module CC-PII348L-xD/CC-PII438L-xDThis EML 10Gbps SFP+ Bidirectional

transceiver is designed to transmit and receive optical data in 10G Ether net links over single mode optical fiber up to 80km.

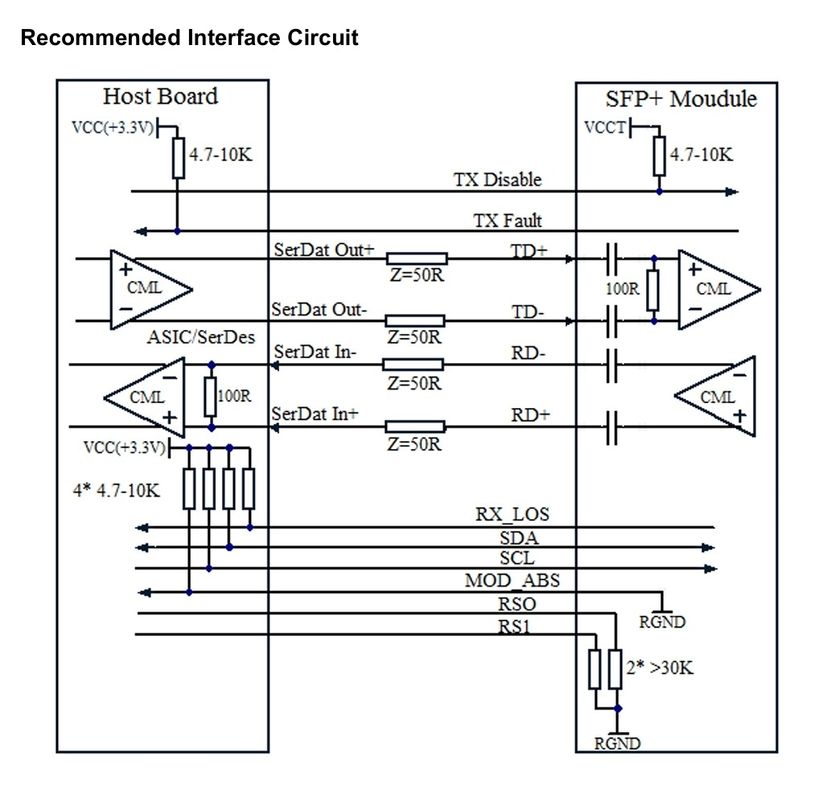

The SFP+ Bidirectional 80km module electrical interface is compliant to SFI electrical specifications. The trans mitter input and

receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The mod ule provides differential

termination and reduce differential to common mode conversion for quality signal termina tion and low EMI.

Standards

• SFF-8431/SFF-8472

• SFF-8432

Applications

• 10G Ethernet

• 10G SONET/SDH, OTU2/2e

Features

• Hot Pluggable • Single LC interface, Duplex operation • 1490nm/1550nm EML transmitter, APD receiver
• Power consumption<2W
• Applicable for 80km SMF connection
• Single +3.3V power supply
• All-metal housing for superior EMI performance
• Cost effectiveSFP+ solution, enables higher port densities and greater bandwidth
•Operating case temperature: Commercial:0 to 70 °C ,Industrial:-40 to 85 °C
• RoHS compliant (lead free)

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Q1.What can you buy from us?

Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's yourwarranty terms?
We supply 12 months warranty time.
Q4.How about the Shipping Method?
We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7.Price questions
The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
