Name: Single 3.3V±5% Power Source 25G SFP28 10km Fiber Optical Transceiver Speed Communications Equipment with 1 and Single Mode
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-PMM56(65)1L-XD
Availability: InStock

Home > products > Starsurge >

Single 3.3V±5% Power Source 25G SFP28 10km Fiber Optical Transceiver Speed Communications Equipment with 1 and Single Mode

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-PMM56(65)1L-XD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Data Center Backbone, Ethernet Switches, High-Spee

Warranty Time:

1 Year

Network:

Fiber Optic Network

Port:

SFP28 Port

Power Source:

Single +3.3V±5%

Connector Type:

LC Single Connector, Hot Pluggable 20pin Connector

Power - Minimum Receivable:

<1.4W

Transmission Distance:

Up To 15km

Data Rate:

24.33Gbps To 25.78Gbps

Operating Temperature Range:

Commercial: 0°C To +70°C, Industrial: -40°C To +85°C

Laser Safety Class:

Class I Laser Safety Compliant

Compliance Standards:

SFP28 MSA, SFF-8431, SFF-8432, RoHS Compliant, SFF-8472

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

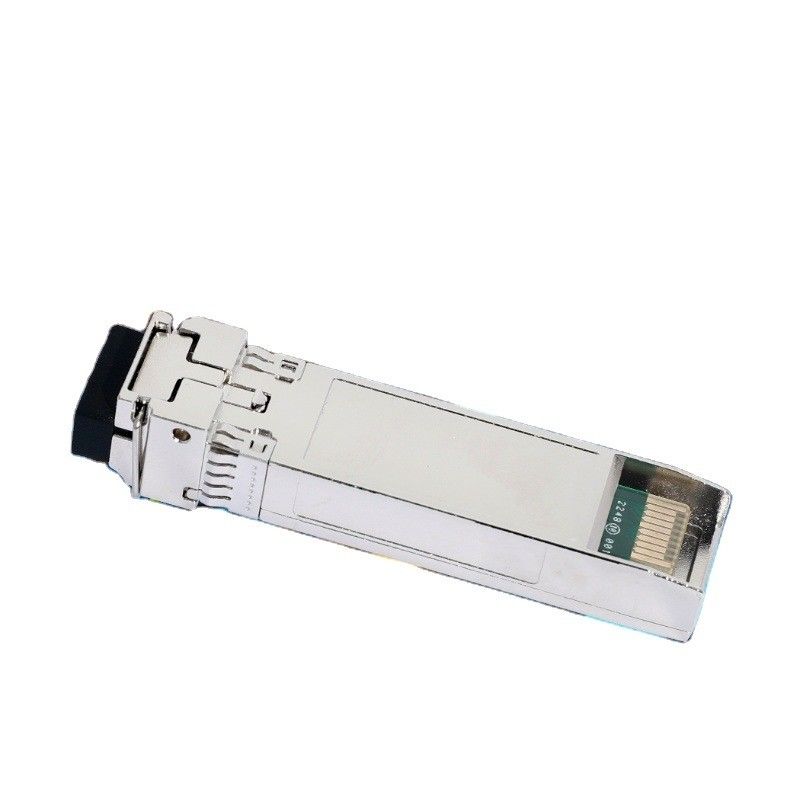

25G SFP28 15km BIDI Transceivers CC-PMM56(65)1L-XD

The CCM-PMM56(65)1L-XD Transceiver is intended for 15km reach service from 24.33Gb/s to 25.78Gb/s BI- direction single mode high-speed communications equipment where low-cost, extraordinary performance and relia- bility are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. It utiliz- es internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Applications

Data Center Backbone

Ethernet Switches

High-speed Servers

High-performance Computing

Features

 Operating data rate up to 25.78Gbps

 Up to 15km transmission distance

 High sensitivity Pin photodiode and TIA

 Rate Adaptation

 LC single connector

 Hot pluggable 20pin connector

 Low power consumption

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Q1.What can you buy from us?

Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.

Q2.How about the delivery date?

It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

We supply 12 months warranty time.

Q4.How about the Shipping Method?

We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7.Price questions

The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
