Name: Single 3.3V Power Source 100GBase QSFP28 ER4 40KM Fiber Optic Equipment Duplex LC Optical Transceiver Module for Your Requirements
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QKKLL4L-SD
Availability: InStock

Home > products > Starsurge >

Single 3.3V Power Source 100GBase QSFP28 ER4 40KM Fiber Optic Equipment Duplex LC Optical Transceiver Module for Your Requirements

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QKKLL4L-SD

Request A Quote

Product Details

Features:

Hot Pluggable, Low Power Consumption, High-speed Transmission

Type:

Optical Transceiver

Use:

Data Center, Telecom Network

Warranty Time:

1 Year

Network:

Ethernet

Port:

QSFP28

Power Source:

Single +3.3V

Connector Type:

LC Duplex

Power - Minimum Receivable:

<4.5W

Frequency Range:

25.78125Gb/s

Transmission Distance:

40km

Fiber Type:

SMF

Standards:

SFF8436, SFF-8636, SFF-8665, SFF8661, IEEE 802.3ba

EMI Performance:

All-metal Housing

Compliance:

RoHS

Receiver Sensitivity:

<-15dBm

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

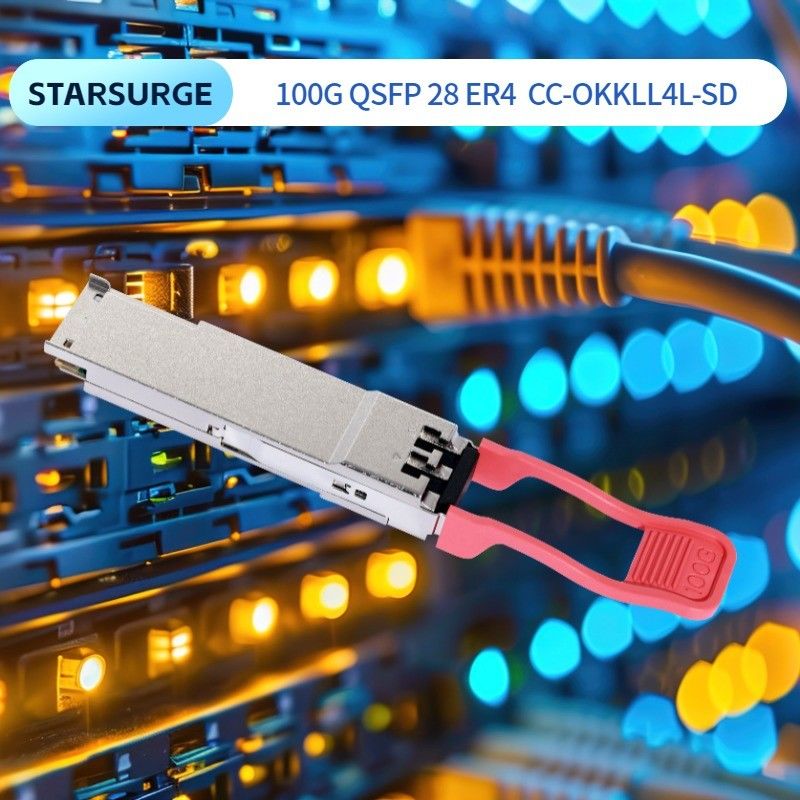

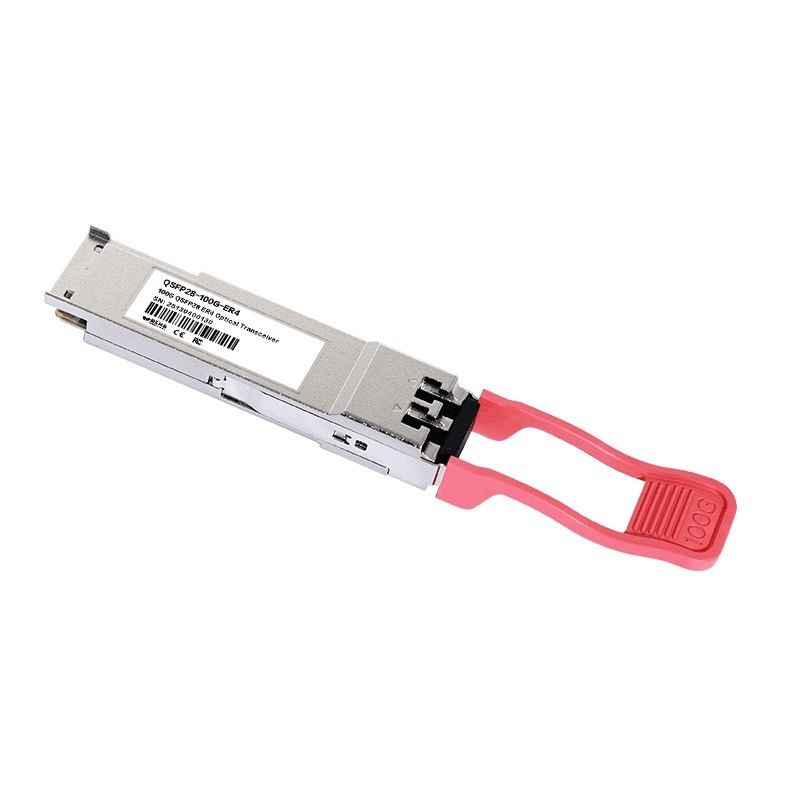

100GBase QSFP28 ER4 40KM Optical Transceiver Module CC-QKKLL4L-SD

The 40km 100GBase-ER4 QSFP28 transceiver is designed to meet the requirements of 100G ethernet links over SMF up to 40km. It is compliant with QSFP28 MSA, IEEE 802.3ba. It is cost-effective, low power consumption with a single 3.3V power supply. The module has an aggregate bit rate up to 103.125Gbps by multiplexing of 4 inde pendent LAN-WDM optical lanes, each lane capable of transmitting 25.78125Gb/s over 40km SMF with FEC. It is fabricated with all-metal and compact size housing for superior EMI performance.

Applications

 100G ethernet

 Other optical links

Standards

 SFF8436,SFF-8636

 SFF-8665, SFF8661

 IEEE 802.3ba

Features

 Hot Pluggable QSFP28 form factor

 Supports aggregate bit rate up to 103.125Gb/s

 LC Duplex optical interface

 4x25Gb/s LAN-WDM transmitter, EML laser,APD ar ray detector

 Operating case temperature:0 to 70 °C

 Low power consumption<4.5W

 Applicable for 40km SMF connection without FEC

 All-metal housing for superior EMI performance

 IIC management interface

 Single +3.3V power supply

 RoHS compliant (lead free)
