3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module

3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QKK11SL-SD

CONTACT US

Request A Quote
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module
Product Details
Type:
Optical Transceiver
Use:
Data Center, High Performance Computing Interconne
Warranty Time:
1 Year
Network:
Ethernet
Port:
QSFP28
Power Source:
3.3V DC
Connector Type:
LC
Power - Minimum Receivable:
≤ 3.5W
Product Type:
QSFP28 Optical Transceiver
Transmission Rate:
100Gbps / 40Gbps
Transmission Distance:
OM3/70m OM4/100m
Wavelength:
850nm / 908nm
Operating Temperature:
0~70
Digital Monitoring:
Supports Digital Monitoring And Maskable Interrupts
RELATED PRODUCTS
Good price 200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector online video

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price
Good price Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link online video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price
Good price Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC online video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price
Good price 400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects online video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price
CONTACT US
86-186-1839-4729
Elva@cnstarsurge.com
Contact Now
Product Description
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 0
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 1

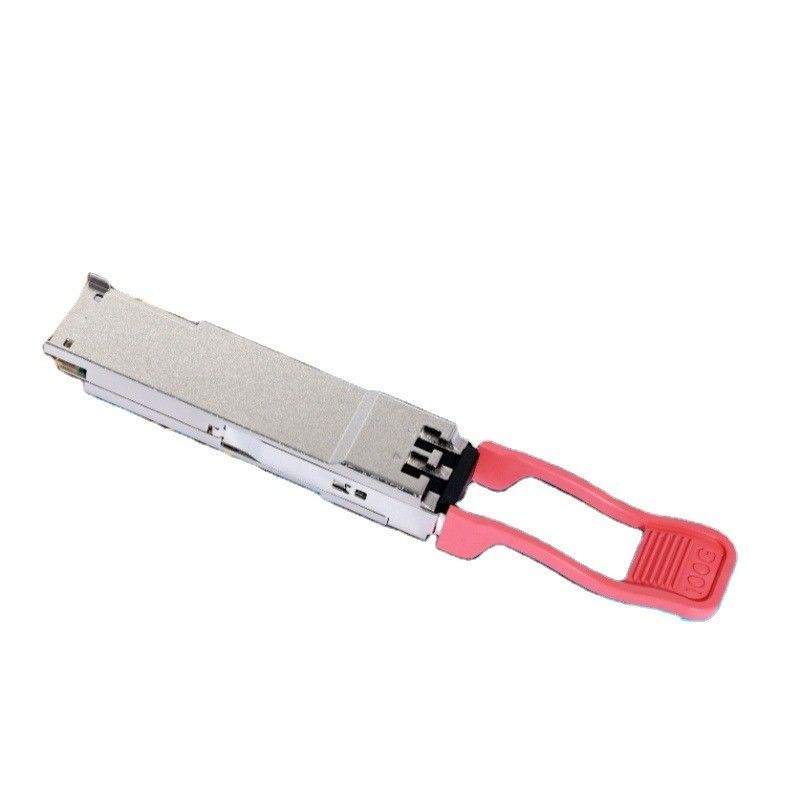

100G QSFP28 BIDI SR Transceiver CC-QKK11SL-SD
The CC-QKK11SL-SD is a QSFP28 Optical transceiver for 100Gbps and 40Gbps interconnects . It is compliant with the QSFP28 MSA specifications,operates from a 3.3V DC power supply. It is fabricated with a rugged die cast metal housing and cage assembly.
Applications

 Data Center
 High performance computing interconnect

Features

 QSFP28 MSA Specification Compliant, including new functions per SFF-8636
 100G and 40G Link Distances up to 70m over OM3, 100m over OM4
 Hot Pluggable
 Dual Wavelength VCSEL Bi-Directional Optical Interface, PAM4 2x50Gbps 850nm/908nm
 Interface with Digital monitoring and maskable Interrupts for Ex- panded functionality
 Case Operating Temperature:Range: 0 to 70ºC
 RoHS II Compliance
 Operating Mode
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 2
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 3
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 4
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 5
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 6
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 7
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 8
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 9
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 10
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 11
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 12
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 13
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 14
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 15
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 16
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 17


3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 18


3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 19


3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 20


3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 21


3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 22


3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 23


3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 24
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 25
Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 26
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 27
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 28
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 29
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 30
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 31
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 32
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 33
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 34
3.3V DC Power Source Computing Interconnect 100G QSFP28 BIDI SR Transceiver for Data Center Hot Pluggable Optical Module 35
Q1.What can you buy from us?
Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
We supply 12 months warranty time.
Q4.How about the Shipping Method?
We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7.Price questions
The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
