Name: ≤ 17W Minimum Receivable Power 800G OSFP SR8 Transceiver for InfiniBand NDR 8x100GbE Breakout Fiber Optic Equipment
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-OSFP08SR8-12D
Availability: InStock

Home > products > Starsurge >

≤ 17W Minimum Receivable Power 800G OSFP SR8 Transceiver for InfiniBand NDR 8x100GbE Breakout Fiber Optic Equipment

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-OSFP08SR8-12D

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Data Center High-Performance Computing (HPC)

Warranty Time:

1 Year

Network:

800G Ethernet/InfiniBand

Port:

OSFP Interface

Connector Type:

Dual MPO-12 APC Receptacles

Power - Minimum Receivable:

≤ 17W

Operating Temperature:

0°C To 70°C

Protocol Standards:

Compliant With OSFP MSA IEEE P802.3db/D3.0 IEEE P802.3ck

Diagnostics Features:

Digital Diagnostic Functions Via I2C Interface

Max Data Rate:

800Gbps

Compatibility:

Compatible With OSFP MSA Type2 Platforms

Additional Features:

Hot-pluggable Design Supports 8x100GbE Breakout Application

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

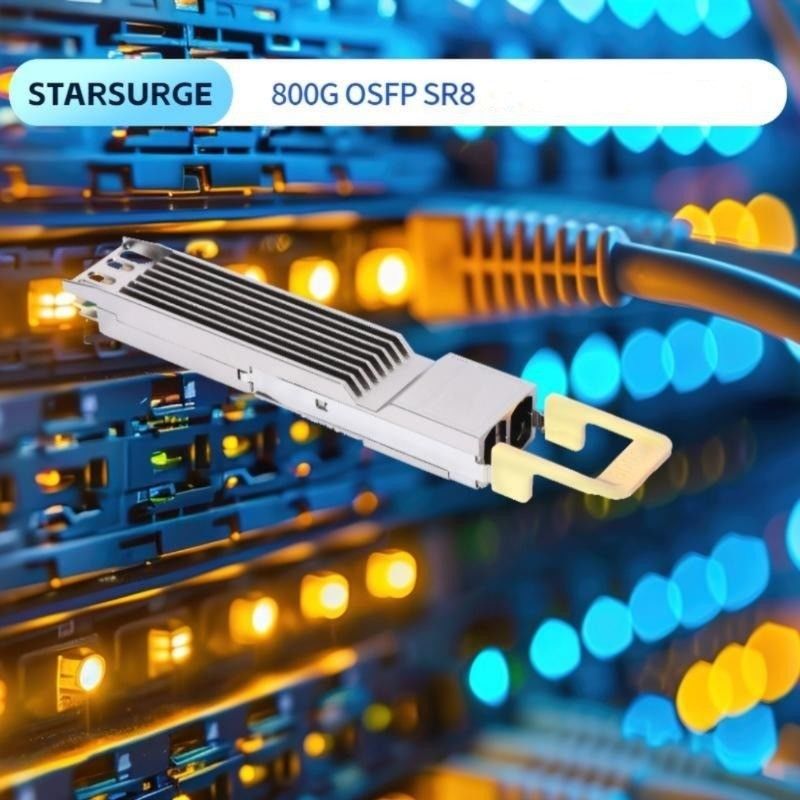

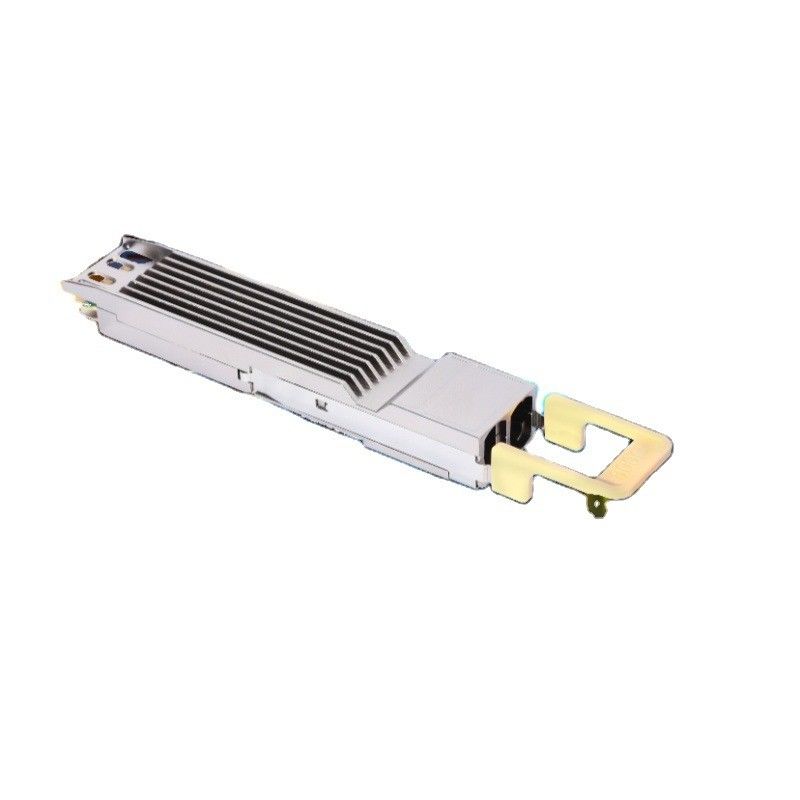

800G OSFPSR8Transceiver CC-OSFP08SR8-12D

CC-OSFP08SR8-12D OSFP transceiver modules are designed for use in 800 Gigabit Ethernet or InfiniBand links up to 100m multi-mode fiber. They are compliant with the OSFP MSA, IEEE P802.3db/D3.0 and IEEE P802.3ck . Digitaldiagnostic functions are available via
the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHScompliant as described in Application Note AN-2038.

Applications

 InfiniBand NDR

 800GSR8applications with FEC

 8x100GbEbreakoutapplication

Features

 Hot-pluggable OSFP 800G SR8 multimode transceiver

 Compliantwith OSFP MSA Type2 flat top with dual MPO-12 connector

 Compliant with CMIS Rev 5.0 and above revision

 Maximumpowerconsumption17W

 DualMPO-12APC receptacles

 Upto70mreach on OM3and 100m on OM4
 Caseoperating temperature 0°C to 70°C
