Name: Optical Transceiver Hot-Pluggable and 200G QSFP56 to 2x 100G QSFP56 Active Optical Cable with Breakout PAM4 Modulation
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-AOC-Q2Q1-xxC
Availability: InStock

Home > products > Starsurge >

Optical Transceiver Hot-Pluggable and 200G QSFP56 to 2x 100G QSFP56 Active Optical Cable with Breakout PAM4 Modulation

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-AOC-Q2Q1-xxC

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Data Center, Cloud Computing, 200G InfiniBand HDR

Warranty Time:

1 Year

Network:

Data Center Network, Cloud Network, InfiniBand Net

Port:

QSFP56 200G Port X 1, QSFP56 100G Port X 2

Connector Type:

QSFP56

Frequency Range:

PAM4 Modulation, Up To 53.125Gbps Per Channel

Product Name:

CC-AOC-Q2Q1-xxC

Operating Temperature:

0℃ To 70℃

Standards Compliance:

IEEE 802.3cd, InfiniBand 4xHDR, SFF 8679, CMIS4.0 Or SFF8636

Product Type:

Active Optical Cable (AOC) With QSFP56 200G

Data Rate:

Up To 53.125Gbps Per Channel (PAM4 Modulation)

Modulation Technology:

PAM4 (Pulse Amplitude Modulation)

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

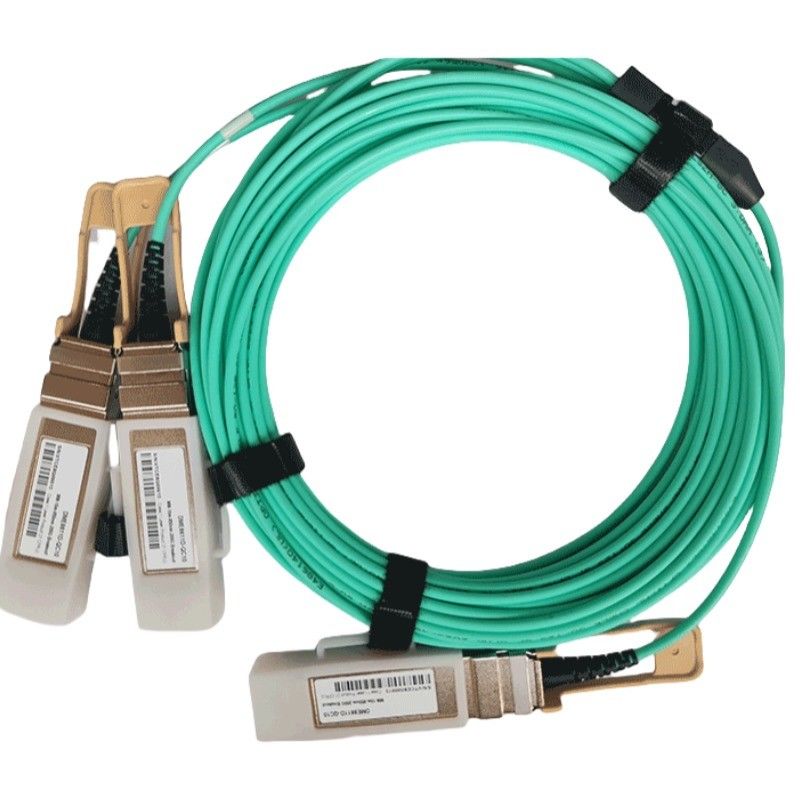

200G QSFP56 SR4 to 2xQSFP56 SR2 Active Optical Cable CC-AOC-Q2Q1-xxC

Applications

 Datacenters and Cloud

 Networks

 200G InfiniBand HDR systems

Features

 Active optical cable with breakout from QSFP56 200G to two QSFP56 100G

 Up to 53.125Gbps data rate per channel PAM4 modulation
 Integrated 850nm VCSEL array and PD array

 DDM function implemented

 Hot-pluggable

 Low power dissipation

Commercial operating case temperature range: 0℃ to 70 ℃

 Compliant with ROHS2.0

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Q1.What can you buy from us?

Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.

Q2.How about the delivery date?

It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

We supply 12 months warranty time.

Q4.How about the Shipping Method?

We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7.Price questions

The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
