Name: 200G-SR4 Multimode Optical Transceiver 200G Hot Pluggable Design 1 Max 4W Power Min Receivable Compatible with OM3/OM4
Brand: Hong Kong Starsurge Group Co., Limited
SKU: CC-QRR110M-SD
Availability: InStock

Home > products > Starsurge >

200G-SR4 Multimode Optical Transceiver 200G Hot Pluggable Design 1 Max 4W Power Min Receivable Compatible with OM3/OM4

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QRR110M-SD

Request A Quote

Product Details

Type:

Optical Transceiver

Use:

Data Center

Warranty Time:

1 Year

Network:

Ethernet

Port:

4x 53.125Gb/s (200GAUI-4)

Power Source:

3.3V Power Supply

Connector Type:

MPO12

Power - Minimum Receivable:

Max 4W

Frequency Range:

26.5625GBd Per Lane

Transmission Rate:

200Gbps

Standards:

IEEE 802.3cd, SFF 8679, CMIS4.0

Optical Specification:

200G-SR4

Electrical Interface:

4x53.125Gb/s (200GAUI-4)

Fiber Type:

Multimode Fiber (MMF)

Max Distance (OM3):

70m

Max Distance (OM4):

100m

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price

video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price

video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price

video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price

86-186-1839-4729

Elva@cnstarsurge.com

Contact Now

Product Description

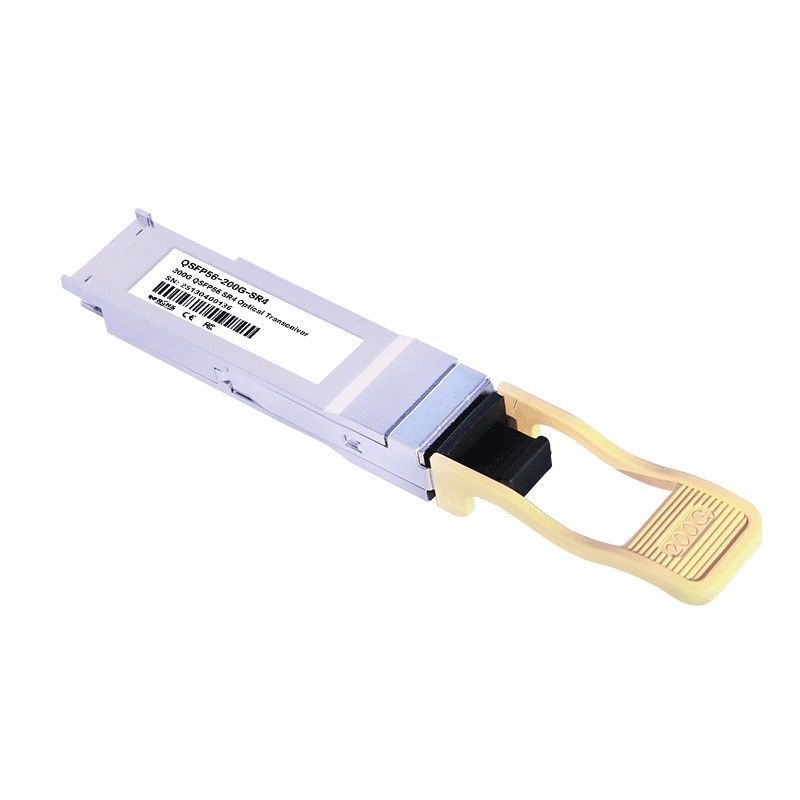

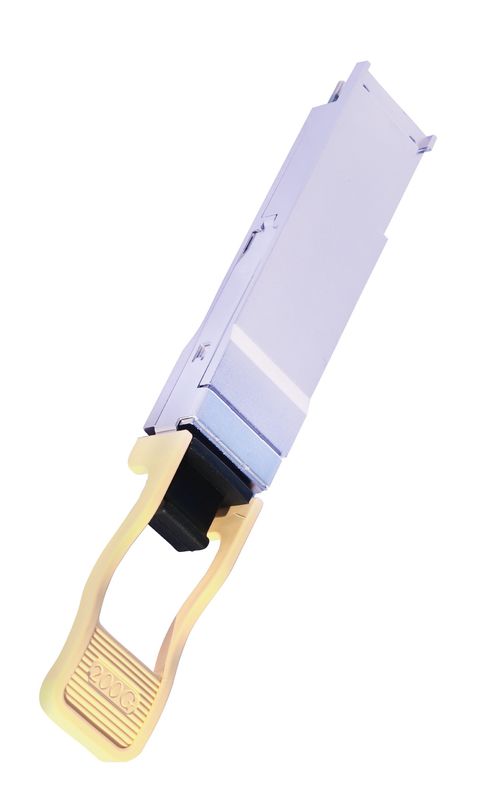

200G QSFP56 SR4 Optical Transceiver CC-QRR110M-SD

CC-QRR110M-SD is a 4x 53.125Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70m on fiber OM3 fiber or 100m on OM4 fiber with FEC.

Applications

 200G BASE-SR4 Ethernet links

 Data centers

Features

 Compliant with 200G-SR4 optical specifications

 4x53.125Gb/s electrical interface (200GAUI-4)

 Reach up to 70m on MMF(OM3)

Reach up to 100m on MMF(OM4)

 Single +3.3V power supply

 Case temperature range: 0 ~ +70℃

 Maximum power consumption 4W

Single MPO12 connector

 RoHS complaint
