Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber

Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber

Place of Origin:

China

Brand Name:

Starsurge

Certification:

RoHS CE FCC UL

Model Number:

CC-QSFP02SR4-12C

CONTACT US

Request A Quote
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber
Product Details
Type:
Optical Transceiver
Use:
High-Performance Computing Interconnect
Warranty Time:
1 Year
Network:
Optical Network
Port:
4 Independent Parallel Optical Channels
Power Source:
CML Compatible Electrical I/O
Connector Type:
MPO-12 APC Interface
Frequency Range:
26.56GBaud
Data Rate:
Typical Data Rate: 26.56GBaud Per Channel
Fiber Type:
OM4 Multimode Fiber (100m), OM3 Multimode Fiber (70m)
Wavelength:
850nm VCSEL/PD Array Technology
Compliance:
Compliance
Environmental Certification:
RoHS II Compliance
Maximum Transmission Distance:
100m On OM4 Multimode Fiber, 70m On OM3 Multimode Fiber
Interface Standard:
SFF-8679 MSA
RELATED PRODUCTS
Good price 200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector online video

200G QSFP56 Active Optical Cable 26.56GBaud Speed Data Transmission Compatible with OM3/OM4 Connector Type QSFP56 Connector

Get Best Price
Good price Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link online video

Data Center Management Interface CMIS 4.0 400G Optical Transceiver with 500m SMF Link

Get Best Price
Good price Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC online video

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Get Best Price
Good price 400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects online video

400G QSFP112 SR4 Hot-Plug Multimode Fiber Optic Transceiver 100m Interconnect for Data Centers and Optical Interconnects

Get Best Price
CONTACT US
86-186-1839-4729
Elva@cnstarsurge.com
Contact Now
Product Description
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 0
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 1

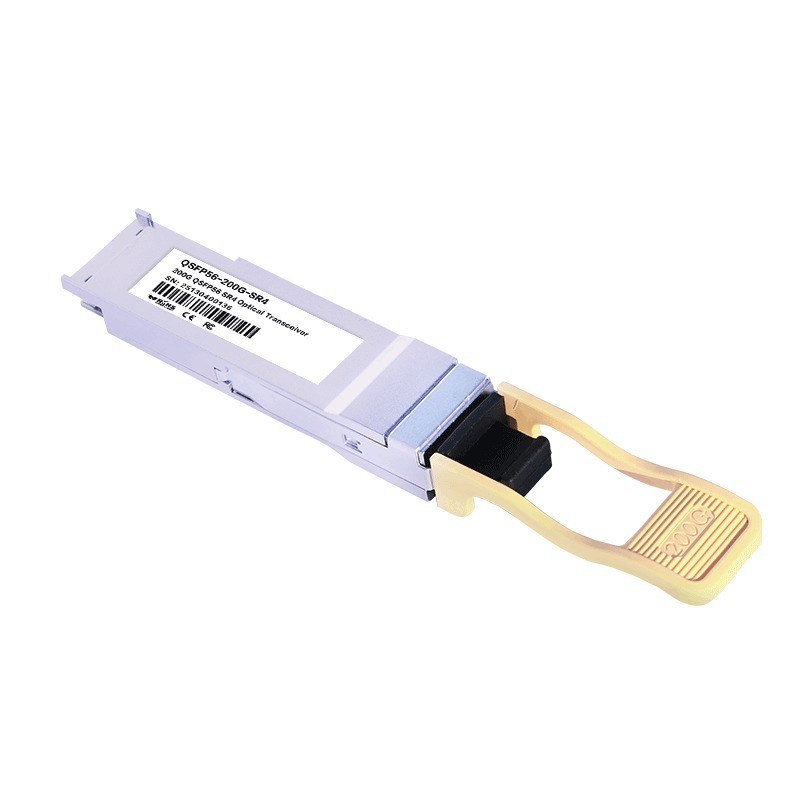

200G QSFP56 SR4 Optical Transceiver CC-QSFP02SR4-12C

The Product is a QSFP56 Optical transceiver for 4x26.56GBaud optical links. It is compliant with the SFF -8679 MSA. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber.

Applications

 High performance computing interconnect
 Data center

Features

 4 independent parallel optical channels
 Each channel typical data rate 26.56GBaud with inte grated CDR
 Hot Pluggable
 Up to 100m link on OM4 Multi-mode Fiber and 70m OM3 Multi- mode Fiber
 850nm VCSEL/PD Array Technology
 CML Compatible electrical I/O
 SFF-8679 MSA Compliance
Timing requirement of control and status I/O comply QSFP-DD Hardware Rev5.1
 MPO-12 APC Interface
 CMIS5.0
 Case Operating Temperature: Commercial: 0 to 70ºC
 RoHS II Compliance

Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 2
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 3
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 4
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 5
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 6
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 7
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 8
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 9
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 10
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 11
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 12
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 13
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 14
Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 15
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 16
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 17
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 18
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 19
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 20
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 21
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 22
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 23
Data Center Interconnect Solution 200G QSFP56 SR4 Optical Transceiver with 100m Transmission Distance on OM4 Fiber 24
Q1.What can you buy from us?
Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
We supply 12 months warranty time.
Q4.How about the Shipping Method?
We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7.Price questions
The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
