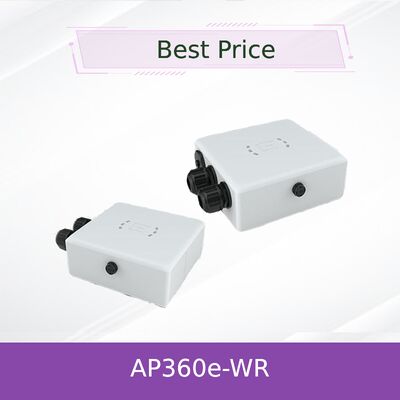

ExtremeWireless AP360E-WR --- Wi-Fi 6 Outdoor Access Point With External Antenna Connectors And Full-Time Security Sensor For EMEA
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP360e-WR |
| Document: | ap460-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | AP360e-WR | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 12V |
| Antenna Gain: | 4.8 DBi | Certification: | ISO9001, RoHS, FCC, CE |
| Selling Units: | Single Item | Specification: | 260mm X 192mm X 65mm |
| Highlight: | Wi-Fi 6 outdoor access point,Outdoor access point with external antennas,Access point with security sensor |
||
Product Description
ExtremeWireless AP360E-WR: Outdoor Wi-Fi 6 Access Point with External Antenna Flexibility for EMEA
Maximum Deployment Flexibility for Demanding Outdoor Networks
The ExtremeWireless AP360E-WR delivers the full power of Wi-Fi 6 with the ultimate flexibility for outdoor coverage. Unlike fixed-antenna models or a basic internal network card solution, its external antenna ports allow you to tailor the wireless pattern to your exact environment—from long-range point-to-point links to focused sector coverage. Certified for the EMEA/RoW region and built to rugged IP67 standards, this tri-radio access point, which surpasses the capabilities of a standard mq9700 type device, combines high performance with customizable radio frequency design.
1. Product Overview
The ExtremeWireless AP360E-WR is the external antenna variant of the high-performance AP360 series, specifically configured for the EMEA and Rest of World markets. This tri-radio, Wi-Fi 6 (802.11ax) outdoor access point is engineered for environments where standard antenna patterns are insufficient. By supporting a wide range of external antennas, it enables network architects to design optimal coverage for challenging layouts such as long perimeters, stadiums, or industrial sites, providing a versatile and powerful alternative to inflexible nic card-based wireless solutions.
2. Key Characteristics
- External Antenna Ready: Features eight N-type connectors for primary radios and one dedicated N-type for BLE, enabling use of directional, sector, or high-gain omni antennas.
- Tri-Radio with Dedicated Sensor: Incorporates a full-time, dual-band security sensor radio alongside high-speed 4x4:4 (5GHz) and 2x2:2 (2.4GHz) client radios.
- Wi-Fi 6 (802.11ax) Core: Delivers high efficiency and capacity through OFDMA, MU-MIMO, and 1024-QAM modulation.
- Ruggedized Outdoor Build: IP67-rated enclosure protects against dust and water immersion, with an operating temperature range of -40°C to +60°C.
- Advanced Security Suite: Supports WPA3 and leverages the independent sensor for continuous Wireless Intrusion Prevention System (WIPS) monitoring.
- EMEA/RoW Certified: Pre-certified for radio regulatory compliance across Europe, the Middle East, Africa, and other global regions.
3. Core Technologies & Standards
- Wireless Protocol: IEEE 802.11ax (Wi-Fi 6), with backward compatibility to 802.11a/b/g/n/ac.
- Radio Architecture: Tri-radio design: 5GHz (4x4:4 MIMO), 2.4GHz (2x2:2 MIMO), plus a 2x2:2 Dual-Band Security Sensor.
- Advanced RF Features: Uplink/Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User MIMO (MU-MIMO), Transmit Beamforming (TxBF).
- Network & Power: 2.5 Gigabit Ethernet uplink with 802.3at PoE+ support; compatible with 802.3af.
- Integrated Services: Bluetooth Low Energy (BLE) for IoT, integrated GPS for location services, Cellular Coexistence Filter (CCF).
4. Working Principle
The AP360E-WR operates on a principle of dedicated hardware optimization. The two main client radios handle all user data traffic, utilizing Wi-Fi 6 efficiencies like OFDMA to serve multiple devices concurrently. Crucially, a third, independent radio functions as a dedicated "watchdog," scanning both frequency bands 24/7 for rogue devices, intrusions, and RF interference. This separation of duties ensures that security monitoring never impacts data throughput. The external antenna capability allows network managers to physically shape the RF coverage pattern—concentrating signal strength in a specific direction or broadening it for general coverage—providing a level of network design control far beyond what an integrated network card or a device like the mq9700 can offer.
5. Application Scenarios
- Transportation Hubs: Airports, seaports, and rail yards requiring long-range coverage across tarmacs or between terminals using directional antennas.
- Large Venues & Stadiums: Deploying sector antennas to provide focused, high-capacity coverage to specific seating sections or concourses.
- Industrial & Mining: Covering vast outdoor yards, pipelines, or mining pits with a combination of high-gain and sector antennas.
- Perimeter Security & Surveillance: Creating a wireless backbone for IP cameras and sensors along fence lines using point-to-point or point-to-multipoint links.
- Agricultural & Rural Connectivity: Providing wireless coverage across farms or remote facilities where customized antenna patterns are essential.
6. Technical Specifications: AP360E-WR
| Specification Category | Details |
|---|---|
| Model & Regulatory Domain | AP360E-WR (EMEA & Rest of World) |
| Wi-Fi Standard & Performance | Wi-Fi 6 (802.11ax), Aggregate data rates up to 4.8 Gbps (5GHz) + 2.4 Gbps (2.4GHz) |
| Radio Configuration | 5GHz: 4x4:4 MIMO (Client), 2.4GHz: 2x2:2 MIMO (Client), Dedicated 2x2:2 Dual-Band Sensor |
| Antenna Connectivity | 8 x N-Type (RF Radios), 1 x N-Type (BLE Radio) for external antenna connection |
| Network Interfaces | 1 x 2.5GbE RJ-45 (PoE+ IN), 1 x 1GbE RJ-45 |
| Power Requirements | 802.3at PoE+ (Typical 15.23W, Max 19.78W), 802.3af compatible |
| Physical & Environmental | Dimensions: 10" x 7.5" x 2.5" | Weight: ~3.9 lbs (1.8 kg) | IP67, Operating Temp: -40°C to +60°C |
| Security Features | WPA3, Dedicated Full-Time Security Sensor, Stateful L2-L7 Firewall |
| Additional Capabilities | Integrated GPS, Bluetooth Low Energy (BLE), Cellular Coexistence Filter (CCF) |
7. Competitive Advantages
- Unmatched Coverage Design Flexibility: The external antenna support allows precise engineering of wireless coverage, enabling solutions for unique site challenges that integrated-antenna APs or standard nic card driven systems cannot address.
- Superior Signal Control & Gain: Ability to use high-gain directional antennas extends effective range and improves link reliability for point-to-point or long-distance client connections.
- Future-Proof Investment: Antenna technology can be upgraded independently of the AP hardware. The 2.5GbE uplink ensures the unit won't bottleneck future network speed upgrades.
- Dedicated Security Hardware: The independent sensor radio provides enterprise-grade WIPS without compromising data performance, a significant advantage over software-based security that shares resources with the main network card.
8. Service & Support
The AP360E-WR is supported by a comprehensive global service framework. It comes with a standard 1-year hardware warranty. Our support for EMEA customers includes access to region-specific technical documentation, firmware updates, and direct support channels. We offer optional extended warranties, advanced replacement services, and professional design consultation to help select the optimal external antennas and plan your network deployment for maximum performance and reliability.
9. Frequently Asked Questions
Q: What antennas are recommended for the AP360E-WR?
A: A variety of Extreme Networks and third-party antennas are compatible, including omni-directional, directional (panel/yagi), and sector antennas. Choice depends on the desired coverage pattern (e.g., ML-2452-PNA7-01R for sector coverage). Always use antennas certified for your region to maintain regulatory compliance.
Q: How does the external antenna model differ from the AP360I internally?
A: The core performance (Wi-Fi 6, tri-radio, security sensor) is identical. The key difference is the AP360E-WR's external N-type connectors, providing flexibility for custom antenna solutions, whereas the AP360I has fixed, internal antennas. This makes the AP360E-WR more than just an AP with a different nic card; it's a platform for tailored RF design.
Q: Is a special license required to manage the security sensor features?
A: Basic sensor operation for rogue device detection is typically included. Advanced Wireless Intrusion Prevention System (WIPS) policies and detailed analytics may require a specific security software license or subscription through the ExtremeCloud IQ platform or compatible controller.
Q: Can it be powered via a single Ethernet cable with all radios active?
A: Yes, when using a standard 802.3at (PoE+) power source, the AP360E-WR can operate with all three radios fully active. If using an 802.3af power source, it may automatically disable the third radio or limit functionality to stay within the lower power budget.
10. Installation & Usage Notes
- Antenna Selection & Compliance: Only use antennas with the appropriate frequency range, connector type (N-Type), and gain that are certified for use in the EMEA/RoW region with this device. Incorrect antennas can violate regulations.
- Cable & Connector Weatherproofing: Use weather-rated coaxial cables (e.g., LMR-400) and ensure all external connectors (antenna and Ethernet) are properly sealed with drip loops and weatherproofing kits to maintain the IP67 rating.
- Lightning & Surge Protection: For installations in areas prone to lightning, install appropriate coaxial lightning arrestors on all antenna ports and Ethernet surge protectors on the data cable to protect the equipment.
- Power over Ethernet (PoE) Budgeting: Ensure your PoE switch or injector can deliver the required wattage (max 19.78W) over the planned cable length, accounting for power loss. The high-performance radios and dedicated sensor, akin to a sophisticated mq9700 system, require stable power.
- RF Planning: Conduct a proper site survey when using directional or sector antennas to avoid interference and optimize coverage. The flexibility of external antennas requires careful planning to achieve the desired network performance.
