Extreme wireless access points AP -7602 -68B30 -WR 802.11a/b/g/n/ac 5GHz 2x2:2 2.4GHz 2x2:2 dual-band
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP-7602-68B30-WR |
| Document: | ap-7602-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Dual Radio |
| Transmission Standard: | 802.11ac/802.11n | Warranty Time: | 1 Year |
| Weight: | 0.32kg | Dimensions: | 145mm X 102mm X 28.6mm |
Product Description

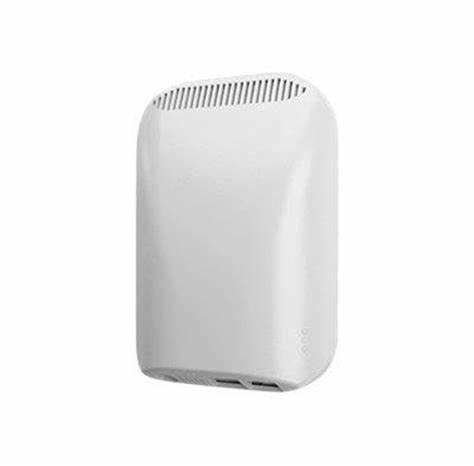

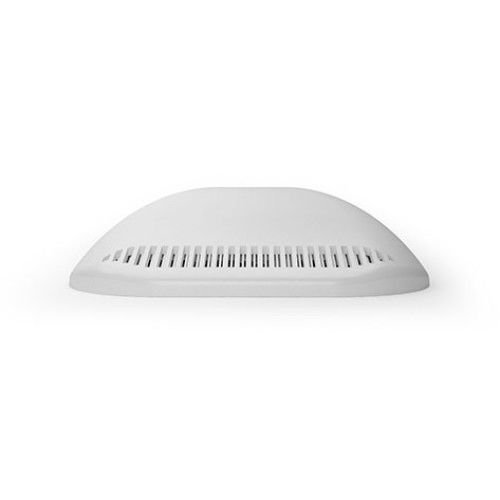

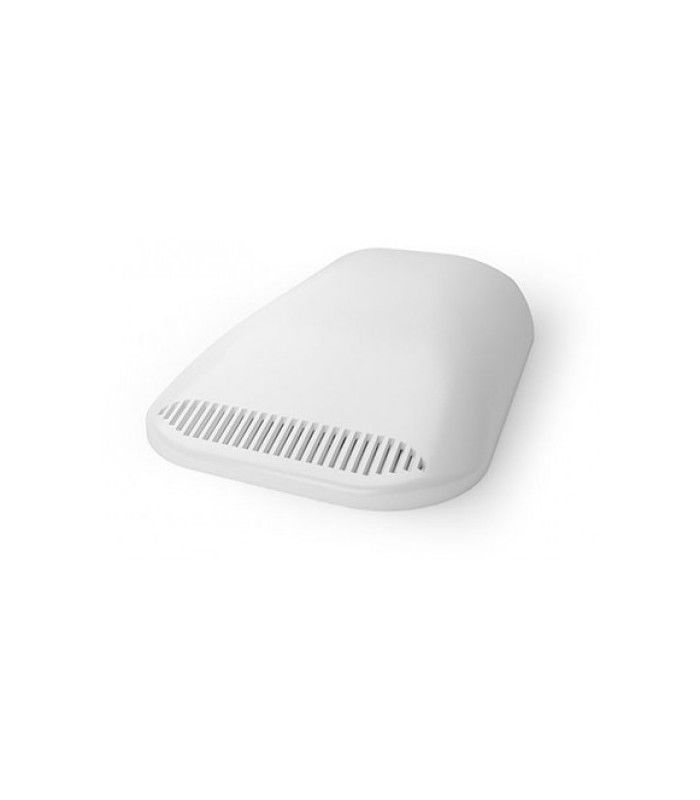

Extreme Networks AP-7602 Wall Plate Enterprise Access Point
The Extreme Networks AP-7602 Wall Plate Enterprise Access Point revolutionizes in-room wireless connectivity by bringing enterprise-grade Wi-Fi directly to guest rooms and patient suites. This innovative 802.11ac Wave 2 Access Point combines high-performance dual-band wireless with Bluetooth Low Energy technology in a discreet form factor that installs in minutes without disrupting operations or revenue streams.
Distinguishing Features
- Purpose-built for per-room deployment with optimized coverage and capacity
- Dual-band 802.11ac Wave 2 technology supporting both 2.4GHz and 5GHz bands
- Integrated Bluetooth Low Energy (BLE) for location services and asset tracking
- Zero-disruption installation with innovative hook-and-snap mounting system
- Centralized management through ExtremeWireless WiNG 5 or cloud-based Nsight platform
Technical Architecture
This Enterprise Access Point implements advanced wireless technologies including Multi-User MIMO (MU-MIMO), maximal ratio combining (MRC), and space-time block coding (STBC) to enhance coverage and reliability. The system supports flexible deployment modes including single-band 2x2 or dual-band 1x1+1x1 operation, with channel bandwidths of 20, 40, and 80MHz for optimal spectrum utilization.
Operational Framework
The AP-7602 Enterprise Access Point creates dedicated Wi-Fi cells within individual rooms, eliminating interference between adjacent spaces. The device employs sophisticated radio frequency management with dynamic frequency selection and transmit power control to optimize performance. The integrated BLE radio enables proximity detection and wayfinding services, while the dual Gigabit Ethernet ports provide flexible connectivity options for additional in-room devices.
Deployment Scenarios
Ideal for hospitality environments including hotels, resorts, and cruise ships, as well as healthcare facilities, senior living communities, and multi-dwelling units. This Enterprise Access Point supports bandwidth-intensive applications including 4K video streaming, VoIP, IPTV, and emerging IoT devices while maintaining enterprise-grade security and manageability.
Technical Specifications
| Specification | Detail |
|---|---|
| Product SKU | AP-7602-68B30-1-WR |
| Wireless Protocol | 802.11a/b/g/n/ac Wave 2 |
| Spatial Streams | 2x2 (2.4GHz), 1x1 (5GHz) |
| Maximum Data Rate | 867 Mbps (5GHz), 300 Mbps (2.4GHz) |
| Ethernet Interfaces | 2x Gigabit Ethernet (10/100/1000) |
| Bluetooth Technology | Bluetooth 4.0 with BLE support |
| Power Consumption | 4.5W typical, 6W maximum |
| Power Method | 12VDC, 850mA external adapter |
| Dimensions | 145 x 102 x 28.6 mm |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity Range | 5% to 95% non-condensing |
Competitive Differentiation
- Eliminates expensive site surveys through predictable per-room deployment model
- Enables revenue-generating location-based services and personalized guest experiences
- Reduces installation time and cost with innovative mounting system (under 5 minutes)
- Provides enterprise-grade features and reliability at volume deployment pricing
- Offers future-proof investment with support for emerging technologies and services
Support & Services
We provide comprehensive support including manufacturer warranty services, technical consultation, and integration assistance. Our global logistics network ensures reliable delivery, and our technical team offers 24/7 support for deployment and operational requirements. We maintain extensive inventory to ensure prompt availability of this Enterprise Access Point and related accessories.
Frequently Asked Questions
Q: How does the per-room deployment model impact network performance?
A: Deploying a dedicated Enterprise Access Point in each room dramatically improves signal quality, reduces co-channel interference, and provides each user with consistent high-performance connectivity for bandwidth-intensive applications.
Q: Can the AP-7602 support emergency communication systems?
A: Yes, with comprehensive QoS prioritization and multicast optimization, this Enterprise Access Point reliably supports emergency notification systems and mission-critical communications.
Q: Is the unit compatible with existing infrastructure management systems?
A: The AP-7602 can integrate with property management, building automation, and IoT platforms through standard API interfaces, enabling unified management and service delivery.
Installation & Operational Guidelines
- Ensure adequate ventilation around the unit and avoid placement in enclosed spaces
- Verify electrical compatibility and use only manufacturer-approved power accessories
- Consult local regulations regarding wireless transmission power and channel restrictions
- Implement proper network segmentation between guest, operational, and management traffic
- Regularly update firmware to maintain security and access latest feature enhancements
