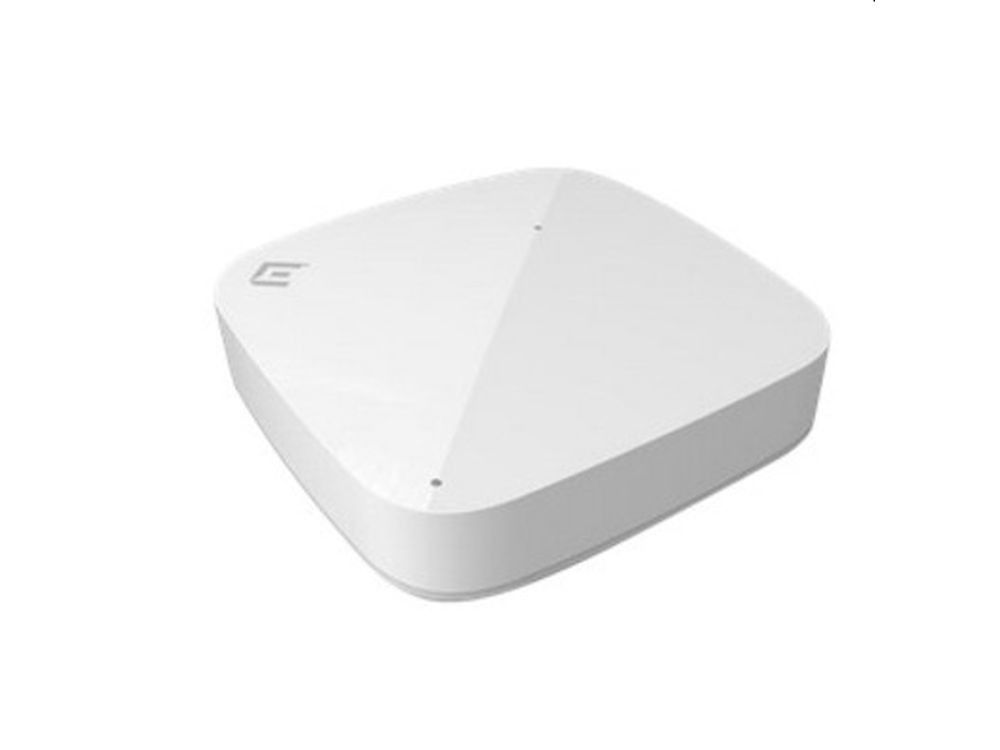

Outdoor 802.11ax AP305C Extreme AP Internal Antennas Dual Radio

Outdoor 802.11ax AP305C Extreme AP Internal Antennas Dual Radio

Internal Antennas ap305c extreme

Dual Radio ap305c extreme

802.11ax extreme outdoor ap

Brand Name:

Extreme

Model Number:

AP305C-1-WR

CONTACT US

Request A Quote
Product Details
Condition:
New And Original
Availability:
Stock
Supported Frequency:
5GHz And 2.4GHz
Type:
Dual Radio
Transmission Standard:
802.11ax
Warranty Time:
1 Year
Dimensions:
133mm X 133mm X 37mm
Antennas:
Internal Antennas
Bluetooth Module:
NO
Lead Time:
According To Stock
Product Description

Extreme wireless access points AP305C-1-WR

Software Selectable Radios (SSR)
Support for 5 GHz and 2.4 GHz concurrent, or dual 5 GHz operation delivers optimal radio management to provide the highest level of client performance.


Optimal RF Management User Experience
Adaptive RF management with AI/ML functionality provide intelligent selection of the best channels and transmit power for an optimal user experience.


Contextualized Security and Performance Optimization
User, device, and application profiling at the edge of the network identifies and fine-tunes network access and performance based on role and privileges, ensuring secure, compliant, and high-performance wireless connectivity.





WiFi6(802.11ax)Technology

• Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level.

Programmable Radios

• Extreme launched the industry's first software defined 802.11ax access point supporting not only a dual 5 GHz capability, but also two software programmable modes to optimally manage radios to provide the highest level of client performance. The AP305C/CX intelligent monitoring of the software- configurable radios enables network managers to configure network RF technology based on user environment and configure the access points in different modes as required.

Radio Specifications

Max Users
• SSID per Radio/Total: 8/16
• Users per Radio/total: 512/1024
802.11a
• 5.150–5.850 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b

• 2.4–2.5 GHz Operating Frequency
• Direct-Sequence Spread-Spectrum (DSSS) Modulation
• Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
• 2.4–2.5 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
• 802.11n Modulation
• Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
• 2x2 Multiple-In, Multiple-Out (MIMO) Radio
• HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
• HT40 High-Throughput (HT) Support for 5 GHz
• A-MPDU and A-MSDU Frame Aggregation
802.11ac
• 5.150–5.850 GHz Operating Frequency
• 802.11ac Modulation (256-QAM)
• Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2.
• 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
• VHT20/VHT40/VHT80 support
• TxBF (Transmit Beamforming)
802.11ax
• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
• 802.11ax Modulation (1024-QAM)
• Dual-band OFDMA
• Rates (Mbps):
• 5G: HE0-HE11 (8 Mbps – 1200 Mbps).
• 2.4G: HE0-HE11 (8 Mbps – 574 Mbps).
• 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
• HE20/HE40/HE80 support for 5 GHz
• HE20 support for 2.4 GHz
• DL SU-MIMO and MU-MIMO
• TxBF (Transmit Beamforming)
