Extreme wireless access points AP -7602 -68B30 -1 -WR 802.11a/b/g/n/ac 5GHz 2x2:2 2.4GHz 2x2:2 dual-band No Bluetooth
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP-7602-68B30-1-WR |
| Document: | ap-7602-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Dual Radio |
| Transmission Standard: | 802.11ac/802.11n | Warranty Time: | 1 Year |
| Antenna: | Internal | Bluetooth: | No Bluetooth |
| Operating Temperature: | 32° F To 104° F / 0° C To 40° C | Lead Time: | According To Stock |
Product Description

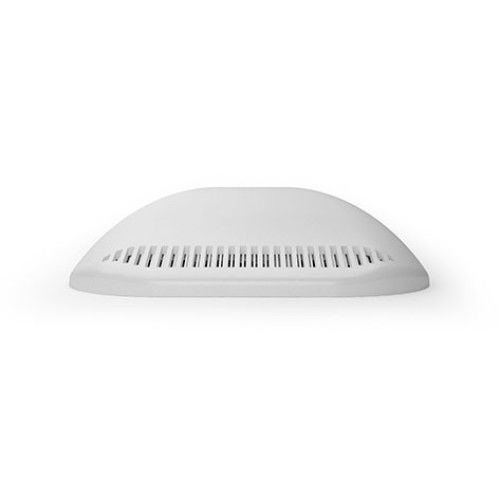

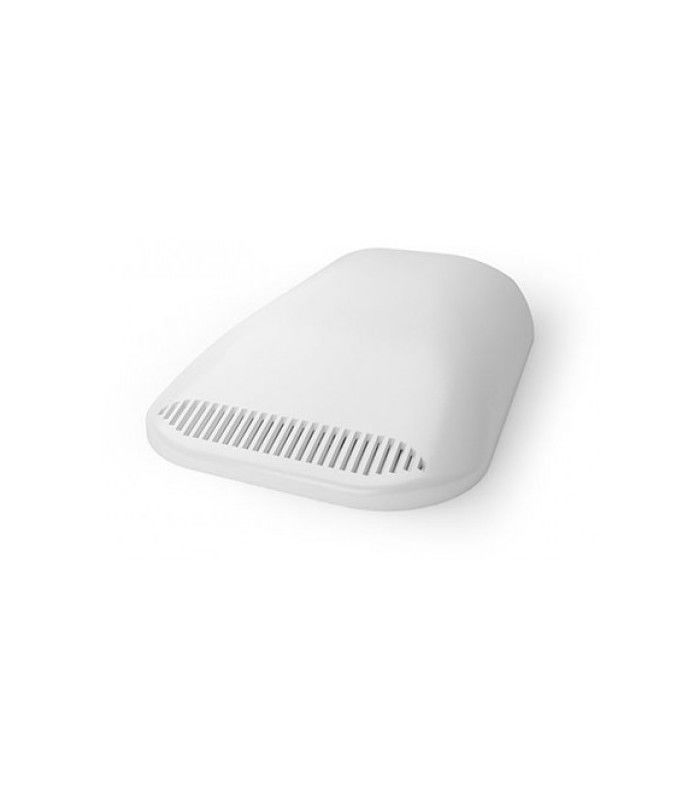

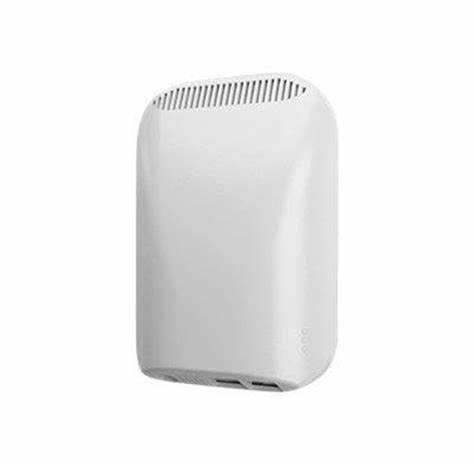

Extreme Networks AP-7602 Wall Plate Wireless Access Point
The Extreme Networks AP-7602 represents a breakthrough in hospitality networking—an enterprise-grade wall plate Wireless Access Point designed for individual guest room deployment. This 802.11ac Wave 2 device eliminates dead zones, delivers high-throughput connectivity, and enables personalized guest services through integrated location technology, all while being remarkably affordable and quick to install.
Core Characteristics
- Per-room deployment strategy ensures optimal signal strength and user experience
- Dual-band concurrent operation supporting both 2.4GHz and 5GHz frequencies
- Integrated Bluetooth Low Energy (BLE) for proximity-based guest services
- Centralized management capability through ExtremeWireless WiNG 5 or Nsight platforms
- Innovative hook-and-snap mounting system enables sub-five-minute installation
Advanced Wireless Technology
This advanced Wireless Access Point implements 802.11ac Wave 2 technology with support for MU-MIMO, beamforming, and dynamic channel optimization. The system employs sophisticated radio management with support for 20, 40, and 80MHz channels, ensuring maximum throughput in high-density environments. Security features include WPA2 encryption, 802.1X authentication, and integrated firewall capabilities.
Operational Methodology
The AP-7602 Wireless Access Point operates by creating dedicated Wi-Fi coverage within individual rooms, eliminating interference from adjacent units. The device uses internal antennas with optimized radiation patterns to direct signals precisely where needed. The integrated BLE radio enables location-aware services, allowing hospitality providers to deliver targeted content and offers to guests' mobile devices based on their precise location within the facility.
Implementation Environments
Specifically engineered for hospitality environments including hotels, resorts, cruise ships, and senior living facilities. The per-room deployment model makes this Wireless Access Point ideal for supporting bandwidth-intensive applications including ultra HD video streaming, VoIP services, IPTV distribution, and emerging Internet of Things (IoT) implementations in guest rooms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | AP-7602-68B30-1-WR |
| Wireless Standards | 802.11a/b/g/n/ac Wave 2 |
| Spatial Streams | 2x2:2 (2.4GHz), 1x1:1 (5GHz) |
| Maximum Throughput | 867 Mbps (5GHz), 300 Mbps (2.4GHz) |
| Network Interfaces | Dual Gigabit Ethernet ports |
| Bluetooth Technology | Bluetooth 4.0 with BLE support |
| Power Requirements | 12VDC, 850mA (4.5W typical, 6W max) |
| Physical Dimensions | 145 x 102 x 28.6 mm (5.7 x 4 x 1.1 in) |
| Unit Weight | 0.23 kg (0.5 lbs) |
| Operating Conditions | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5% to 95% non-condensing |
Competitive Advantages
- Eliminates traditional wireless site survey requirements through predictable per-room deployment
- Enables new revenue streams through location-based services and guest engagement platforms
- Reduces installation costs and time through innovative mounting system and zero-disruption deployment
- Provides enterprise-grade features and reliability at a price point suitable for volume deployment
Service & Support Commitment
We provide comprehensive product support including manufacturer warranty fulfillment, technical consultation, and integration services. Our global logistics network ensures reliable delivery, and our technical team offers 24/7 support for deployment and operational issues.
Frequently Asked Questions
Q: How does the per-room deployment model affect overall network performance?
A: Deploying a dedicated Wireless Access Point in each room dramatically improves signal quality, reduces channel contention, and provides each guest with consistent high-performance connectivity.
Q: Can the AP-7602 support voice services and emergency notification systems?
A: Yes, with support for QoS prioritization and multicast optimization, this access point reliably supports voice services and emergency notification systems.
Q: Is the unit compatible with existing property management systems?
A: The AP-7602 can integrate with property management systems through API interfaces, enabling seamless guest authentication and service delivery.
Installation & Operational Considerations
- Ensure adequate ventilation around the unit and avoid placement in enclosed spaces without airflow
- Verify electrical compatibility and use only approved power accessories
- Consult local regulations regarding wireless transmission power and channel restrictions
- Implement proper network segmentation for guest and operational traffic
