AP-7622-68B30-WR-1 AP 7622 802.11 A/B/G/N/Ac Dual 1x1 Or Single 2x2 Band Radio
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP-7622-68B30-WR-1 |
| Document: | ap-7622-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Dual Radio |
| Transmission Standard: | 802.11ac/802.11n | Warranty Time: | 1 Year |
| Weight: | 0.32kg | Dimensions: | 150mm X 140mm X 39mm |
| Keyword: | Extreme Wireless Access Points AP-7622-68B30-WR-1 AP 7622 802.11 A/b/g/n/ac Dual 1x1 Or Single 2x2 Band Radio | Name: | Extreme Wireless Access Points |
| Highlight: | AP-7622-68B30-WR-1,2.4GHz Extreme Wireless Access Points |
||
Product Description

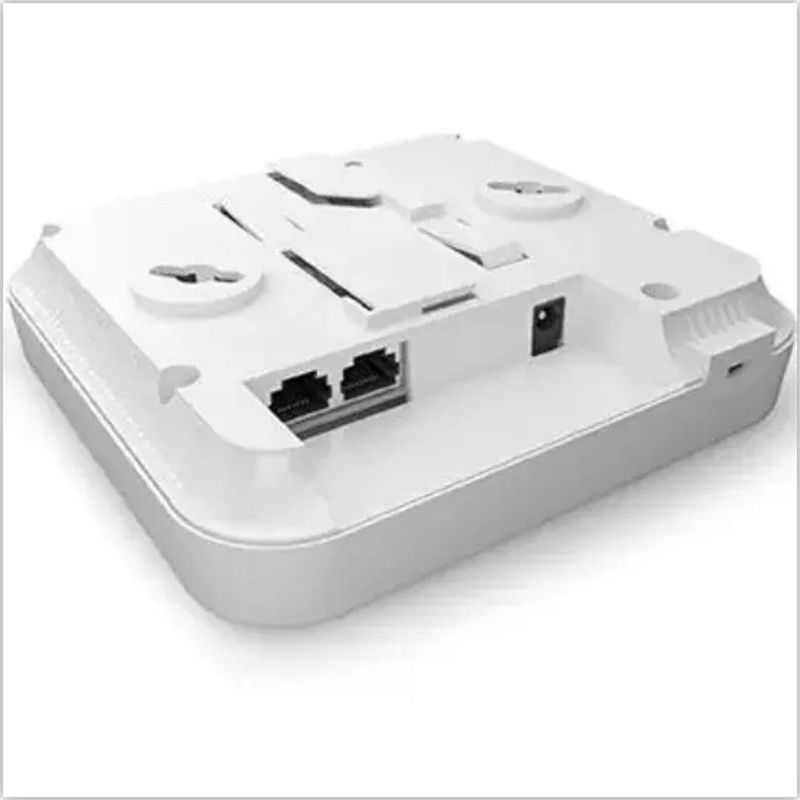

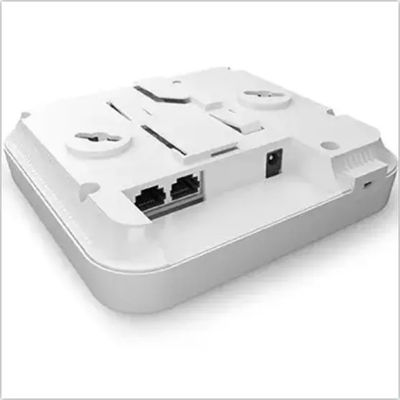

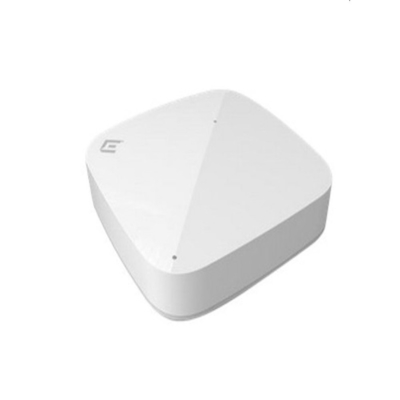

ExtremeWireless™ WING AP-7622 802.11ac Access Point
1. Product Overview
The ExtremeWireless WING AP-7622 is an enterprise-grade 802.11ac wireless access point designed for small to medium-sized businesses seeking reliable, high-performance Wi-Fi without the complexity or high cost. It supports dual-band operation, integrated Bluetooth for customer engagement, and is managed via the intuitive WING 5 operating system.
2. Key Characteristics
- Dual-band 802.11ac Wi-Fi with flexible radio configurations
- Integrated Bluetooth® 4.0 with support for iBeacon™ and Eddystone™
- Controller-less deployment for up to 25 APs or scalable to 25,000+ APs
- Zero-touch provisioning and automated RF management
- Plenum-rated plastic housing with integrated mounting options
3. Technology & Standards
The AP-7622 supports IEEE 802.11a/b/g/n/ac standards, Bluetooth Low Energy (BLE), and advanced features including MIMO, beamforming, WPA2 security, QoS, and captive portal support. It is compatible with Extreme’s WING 5 OS for seamless cloud or on-premise management.
4. Working Principle
The access point operates in either dual-band concurrent mode or single-band high-range mode. It uses automated RF management to avoid interference and optimize coverage. Bluetooth beacons broadcast signals to nearby mobile devices for proximity-based marketing.
5. Applications
Ideal for retail stores, restaurants, cafes, quick-service restaurants, and small warehouses. Supports customer loyalty programs, mobile advertising, inventory tracking, and high-density guest Wi-Fi.
6. Specifications
| Attribute | Value |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac Wave 2 |
| Max Data Rate | 433 Mbps (5GHz), 150 Mbps (2.4GHz) |
| Bluetooth | v4.0 BLE, iBeacon, Eddystone |
| Ethernet Port | 1x Gigabit Ethernet |
| Power Consumption | 4.5W typical, 6W max |
| Dimensions | 150mm x 140mm x 39mm |
| Operating Temperature | 0°C to 40°C |
7. Advantages
- Enterprise features at a budget-friendly price
- No controller required for small deployments
- Integrated Bluetooth for customer engagement
- Easy mounting and setup for non-technical users
- Future-proof with 802.11ac Wave 2 support
8. Service & Support
We provide 24/7 customer consultation and technical support. All products are shipped with full warranty coverage. Bulk orders are supported with competitive pricing and fast delivery.
9. Frequently Asked Questions
Q: Can the AP-7622 be used outdoors?
A: No, it is designed for indoor use only.
Q: Does it support mesh networking?
A: Yes, via the WING 5 OS.
Q: Is a license required for management?
A: No license is needed for basic WING 5 functionality.
10. Precautions
- Ensure proper ventilation to avoid overheating
- Use only approved power adapters
- Verify local regulatory restrictions for channel usage
- Do not expose to moisture or extreme temperatures
11. Company Introduction
With over a decade of industry experience, we operate a large factory supported by a strong technical team. We represent leading brands including Mellanox, Ruckus, Aruba, and Extreme Networks. Our inventory includes millions of products such as network switches, wireless access points, controllers, and cables. We offer competitive pricing, bulk supply capabilities, and round-the-clock customer and technical support.
