AP460 Tri-Radio Wi-Fi 6 Access Point --- Robust Performance for Demanding Outdoor Environments
Product Details:
| Brand Name: | Extreme |

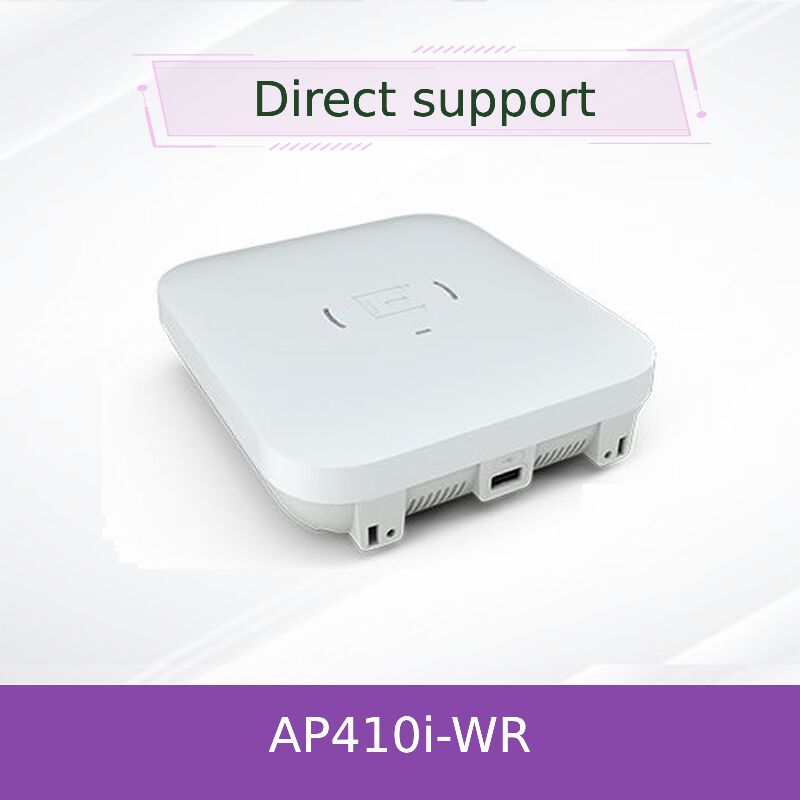

| Model Number: | AP410i-WR |
| Document: | Extreme-Networks-Access-Poi...10.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Tri-Radio |
| Transmission Standard: | 802.11ax | Warranty Time: | 1 Year |
| Weight: | 0.9kg | Dimensions: | 165mm X 180mm X 47mm |
| Highlight: | Tri-Radio Wi-Fi 6 access point,Outdoor Wi-Fi 6 access point,Extreme Wireless access point with warranty |
||
Product Description
ExtremeWireless AP460i/e: Outdoor Wi-Fi 6 (802.11ax) Tri-Radio Access Point
Engineered for the Toughest Outdoor Challenges
The ExtremeWireless AP460i/e redefines outdoor wireless connectivity by combining enterprise-grade Wi-Fi 6 performance with military-grade durability. It's not just another network card or nic card solution; it's a comprehensive wireless infrastructure node. Its tri-radio design includes a dedicated, full-time dual-band sensor for continuous security monitoring—a critical advantage over conventional access points or basic mq9700-type devices. Built to withstand extreme temperatures (-40°C to +60°C), hurricane-force winds, and harsh conditions with an IP67 rating, it ensures reliable operation where other network card based solutions fail.
1. Product Overview
The ExtremeWireless AP460i/e is a high-performance, tri-radio outdoor access point designed for the latest Wi-Fi 6 (802.11ax) standard. It provides aggregate data rates up to 4.8 Gbps in the 5 GHz band and 2.4 Gbps in the 2.4 GHz band, making it ideal for bandwidth-intensive applications in high-density user environments. Available in two models: the AP460i with integrated antennas and the AP460e for external antenna flexibility.
2. Key Characteristics
- Tri-Radio Design: 5 GHz 4x4:4, 2.4 GHz 2x2:2, plus a dedicated 2x2:2 dual-band sensor for full-time security scanning.
- Wi-Fi 6 (802.11ax) Efficiency: Supports OFDMA, MU-MIMO, and 1024-QAM for superior performance in dense deployments.
- Rugged Outdoor Build: IP67 rated, operating temperature from -40°C to +60°C, and withstands wind gusts up to 165 mph.
- Advanced Security: Supports WPA3 and features a stateful L2-L7 DPI firewall. The integrated sensor continuously monitors for rogue devices and threats, providing security beyond what a standard nic card offers.
- Integrated IoT & Location Services: Built-in Bluetooth Low Energy (BLE) and GPS for asset tracking, wayfinding, and IoT device connectivity.
- Smart Management: Compatible with ExtremeCloud™ IQ for cloud management or on-premises controllers.
3. Core Technologies & Standards
- Wireless Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Security Protocols: WPA3-Personal, WPA3-Enterprise, WPA2, 802.1X, AES encryption
- Radio Technologies: 4x4 MU-MIMO, OFDMA (Uplink & Downlink), Transmit Beamforming (TxBF), BSS Coloring
- Coexistence & Filtering: Integrated Cellular Coexistence Filter (CCF)
- Networking: Supports 802.3at PoE+ (backward compatible with 802.3af)
4. Working Principle
The AP460i/e operates on three independent radios. Two radios (5 GHz 4x4 and 2.4 GHz 2x2) serve client data traffic using advanced Wi-Fi 6 techniques like OFDMA to communicate with multiple devices simultaneously, increasing efficiency. The third radio is a dedicated "Smart Sensor" that operates full-time, scanning both 2.4 GHz and 5 GHz spectrums for rogue access points, security threats, and performing RF analysis without impacting client performance. This architectural separation of data and monitoring functions ensures both high throughput and robust security, a principle that is central to its design, differentiating it from a simple mq9700 adapter or standard network card.
5. Application Scenarios
- Smart Cities & Municipal Wi-Fi: Parks, plazas, and public transportation hubs.
- Industrial & Manufacturing: Outdoor yards, logistics centers, and automated guided vehicle (AGV) networks.
- Education & Campus: Outdoor learning areas, stadiums, and large campus grounds.
- Hospitality & Retail: Outdoor dining, parking lots, and shopping complexes for guest engagement and POS connectivity.
- Transportation: Train stations, airports, and ports for high-density passenger connectivity and operational communications.
6. Technical Specifications
| Attribute | AP460i (Internal Antenna) | AP460e (External Antenna) |
|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), backward compatible | |
| Aggregate Data Rate | Up to 4.8 Gbps (5 GHz) + 2.4 Gbps (2.4 GHz) | |
| Radio Configuration | Tri-Radio: 5GHz 4x4:4, 2.4GHz 2x2:2, Dedicated 2x2:2 Sensor | |
| Ethernet Ports | 1x 2.5GbE PoE+ (802.3at), 1x 1GbE | |
| Power | 802.3at PoE+ (Typical 15.23W, Max 19.78W) | |
| Dimensions (HxWxD) | 10" x 7.5" x 2.5" (260mm x 192mm x 65mm) | |
| Weight | 3.7 lbs (1.7 kg) | 3.9 lbs (1.8 kg) |
| Environmental Rating | IP67, Operating Temp: -40°C to +60°C | |
| Antennas | Integrated omni-directional | 8x N-Type connectors (RF) + 1x N-Type (BLE) |
| Security | WPA3, Dedicated Security Sensor, Stateful Firewall | |
7. Competitive Advantages
- Full-Time Security Sensor: Unlike competitors' part-time scanning, the dedicated sensor provides 24/7 threat detection without compromising client data performance, offering more comprehensive protection than a system relying solely on the main network card for monitoring.
- Superior Ruggedness: Exceeds standard outdoor ratings with IP67 and an extended temperature range, ensuring longevity in environments where typical APs or mq9700-class components would degrade.
- Future-Proof Connectivity: 2.5GbE uplink port ready for multi-gigabit backhaul, preventing bottleneck issues common with older 1GbE designs.
- Integrated IoT & Location: Built-in BLE and GPS eliminate the need for additional hardware dongles or complex integrations.
8. Service & Support
Extreme Networks stands behind the AP460 series with a comprehensive service framework. This product includes a standard 1-year hardware warranty. Extended warranty and support plans are available. We offer global technical support, detailed documentation, and firmware updates. For large deployments, professional integration and design services are offered to ensure optimal performance. Lead times are typically consistent with standard enterprise hardware cycles, but please contact sales for specific regional availability.
9. Frequently Asked Questions
Q: Can the AP460i/e be powered by standard PoE switches?
A: Yes. It is fully functional with 802.3at (PoE+) power. It is also capable of operating, potentially with reduced feature sets, on 802.3af (PoE) power sources.
Q: What is the purpose of the dedicated sensor radio?
A: The sensor radio operates independently to perform continuous, full-time wireless spectrum analysis and security monitoring. This includes detecting rogue access points, intrusion attempts, and optimizing RF settings without using resources from the client-serving radios. This layered security approach is more robust than solutions embedded in a primary nic card.
Q: What mounting options are available?
A: The AP460i/e supports a variety of mounting solutions including pole mounts (with tilt), wall mounts, and vehicle brackets. Specific mounting kits are available as accessories (e.g., KT-147407-02 for harsh environments).
Q: Is this AP suitable for high-density venues like stadiums?
A: Absolutely. With its Wi-Fi 6 efficiency features (OFDMA, MU-MIMO), tri-radio design, and high aggregate throughput, the AP460 series is engineered to deliver exceptional client experience in the densest user environments, far surpassing the capabilities of a traditional network card in an indoor AP.
10. Installation & Usage Notes
- Compatibility: Ensure your network switch supports 802.3at PoE+ for full functionality. Verify controller or cloud management platform compatibility (ExtremeCloud IQ or designated on-prem controllers).
- Environmental: While IP67 rated, ensure all cable connectors (Ethernet, antenna for AP460e) are properly sealed. Do not install in condensing environments exceeding 95% humidity.
- Safety & EMC: Install according to local electrical safety regulations. The device complies with major international EMC and radio standards (FCC, CE). Use only approved external antennas (for AP460e) to maintain regulatory compliance.
- Maintenance: Regular firmware updates are recommended for security and performance enhancements. Use the management system for periodic RF environment assessments.
- Configuration: For optimal performance of the dedicated security sensor and advanced features like the mq9700 (referencing high-performance components), professional configuration via Extreme's management tools is advised.
