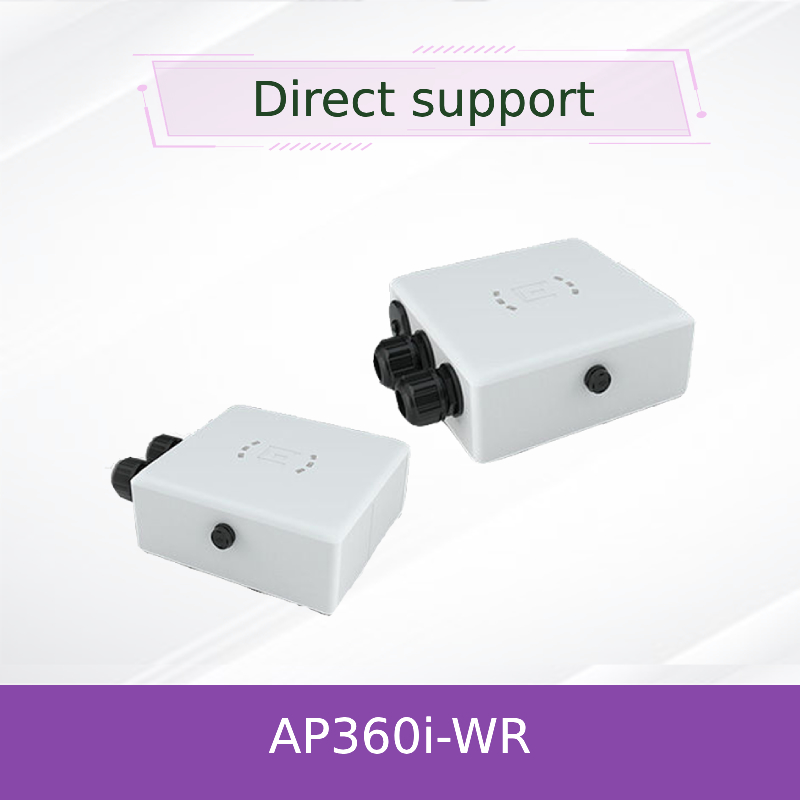

Extreme Networks AP360I-WR Outdoor Wi-Fi 6 Access Point | Dual-Band 802.11ax | IP67 Rated | Cloud Managed
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP360I-WR |
| Document: | ap360-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Supported Frequency: | 5GHz And 2.4GHz | Type: | Dual Radio |
| Transmission Standard: | 802.11ax | Warranty Time: | 1 Year |
| Weight: | 1.0kg | Dimensions: | 190mm X 145mm X 50mm |
Product Description
- Wi-Fi 6 (802.11ax) technology for superior performance
- Dual-band 2.4GHz & 5GHz concurrent operation
- IP67 rated for harsh outdoor environments
- Software-selectable radio modes for flexibility
- Integrated GPS and Bluetooth Low Energy
- WPA3 security for robust protection
- Operates on standard 802.3af PoE
- Cloud and on-premises management options
The Extreme Networks AP360I-WR represents a significant advancement in outdoor wireless networking technology. This enterprise-grade network card and wireless access point combines Wi-Fi 6 efficiency with rugged outdoor durability, making it ideal for challenging deployment environments. The mq9700 compatible device delivers exceptional performance for high-density user scenarios while maintaining budget-conscious pricing.
- 2.4 GHz: 2x2 MIMO, 574 Mbps max
- 5 GHz: 2x2 MIMO, 1200 Mbps max
- Software-selectable radio modes
- 16 SSIDs total, 1024 users maximum
- Dual 10/100/1000 Ethernet ports
- 802.3af PoE compatible
- Typical power consumption: 9.5W
- Maximum power draw: 12.1W
- IP67 outdoor rating
- Operating temperature: -40°C to 60°C
- Humidity: 10% to 95% non-condensing
- Wind resistant design
This advanced network card implements the latest Wi-Fi 6 (802.11ax) standard with OFDMA technology, improving efficiency in high-density environments. The device features dual-band orthogonal frequency division multiple access, MU-MIMO capabilities, and transmit beamforming for optimal coverage and performance. The integrated Bluetooth Low Energy radio supports IoT applications and location-based services, while built-in GPS enables precise asset tracking capabilities.
The AP360I-WR wireless access point operates using sophisticated radio frequency management through SmartRF technology. The system continuously monitors environmental conditions and automatically adjusts channel selection, power levels, and band steering to optimize performance. The software-defined radios can be configured in multiple modes including dual-band operation, dual 5GHz capability, or sensor mode for specialized monitoring applications.
- Outdoor campus networks
- Industrial and manufacturing facilities
- Public venues and stadiums
- Transportation hubs
- Municipal wireless deployments
- Retail and hospitality outdoor spaces
- Educational institution exteriors
- Healthcare facility perimeters
| Parameter | Specification |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| MIMO Configuration | 2x2:2 (2.4 GHz & 5 GHz) |
| Maximum Data Rates | 574 Mbps (2.4 GHz), 1200 Mbps (5 GHz) |
| Ethernet Ports | 2 x 10/100/1000 (Gigabit) |
| Power Requirements | 802.3af PoE (9.5W typical, 12.1W max) |
| Dimensions | 190mm x 145mm x 50mm (7.4" x 5.7" x 1.9") |
| Weight | 2.2 lbs (1.0 kg) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
- Superior Outdoor Performance: IP67 rating ensures reliable operation in extreme weather conditions where other network cards may fail
- Advanced Wi-Fi 6 Technology: Implements the latest wireless standards for improved efficiency and capacity compared to previous generations
- Flexible Deployment Options: Software-defined radios allow configuration changes without hardware modifications
- Comprehensive Security: WPA3 certification provides enterprise-grade security for all connected devices
- Cost-Effective Operation: Standard 802.3af PoE compatibility reduces infrastructure costs compared to specialized power requirements
All Extreme Networks products include a comprehensive 1-year warranty with optional extensions available. Our technical support team provides 24/7 assistance for installation, configuration, and troubleshooting. We maintain substantial inventory levels to ensure prompt delivery, typically shipping within 2-3 business days for in-stock items. For specialized deployments, our engineering team offers design consultation and integration services.
The effective range varies based on environment, but typically reaches up to 200 meters outdoors with clear line of sight. Actual performance depends on obstacles, interference, and client device capabilities.
Standard mounting kits are available as accessories, including pole mounts with 15-degree tilt, 12-inch extension arms, and articulating brackets for flexible positioning.
Yes, through software-selectable radio technology, this network card can be configured for dual 5GHz operation, providing two independent 5GHz radios for specialized deployment scenarios.
The device supports ExtremeCloud IQ for cloud management or can be managed through on-premises controllers including ExtremeCloud Appliance, VX, or NX series controllers.
- Ensure proper grounding during installation to meet regulatory requirements
- Verify PoE switch compatibility - standard 802.3af is sufficient for basic operation
- For optimal performance, conduct a site survey to determine ideal placement
- Regular firmware updates are recommended to maintain security and performance
- The internal antennas provide omnidirectional coverage - consider external antennas for directional applications
- Compliance with local regulatory requirements for outdoor RF transmission is mandatory
