New Original Ruckus Compact Stackable Ethernet Switch Icx8200-C08zp PoE++ Switch
Product Details:
| Brand Name: | Ruckus |
| Model Number: | ICX8200-C08ZP |
| Document: | RUCKUS ICX 8200 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | ICX8200-C08zp | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≦8 | Weight: | 3.23 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 300W |
| Uplinks: | 2X 1/10/25 Gbps SFP/SFP+/SFP28 | Transport Package: | Carton |
| Specification: | 26cm*27cm*4.4cm | Trademark: | Ruckus |
| Highlight: | Icx8200-C08zp Ruckus,Ruckus Ethernet Switch |
||
Product Description

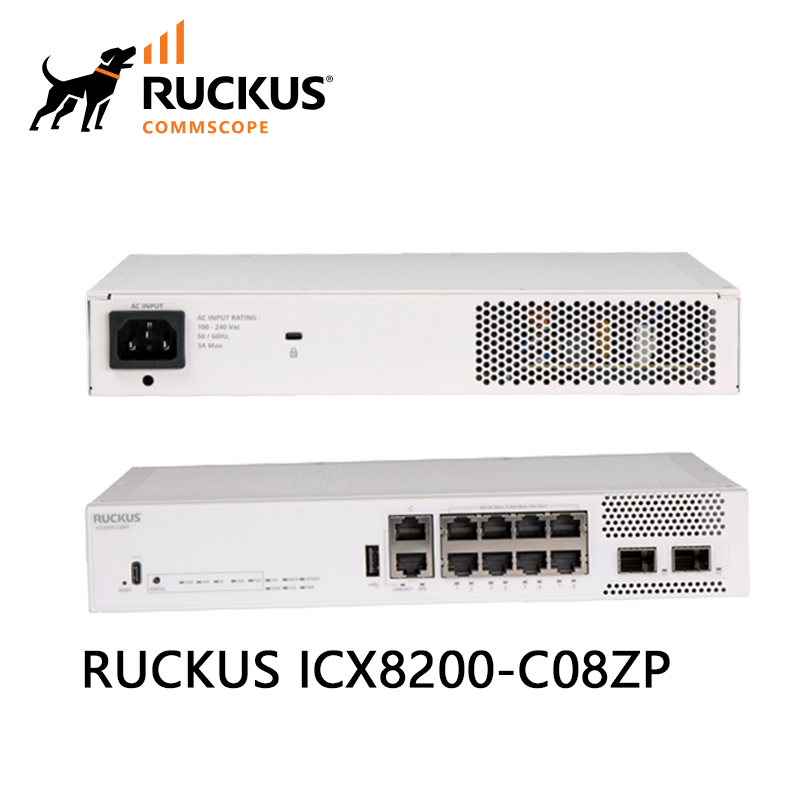

RUCKUS ICX 8200-C08ZP Multigigabit PoE++ Compact Switch
1. Product Overview
The RUCKUS ICX 8200-C08ZP is a high-performance, compact, stackable access switch designed for next-generation wireless and IoT deployments. It combines enterprise-class features with multigigabit PoE++ support, making it ideal for high-density Wi-Fi 6/6E/7 environments and power-hungry devices.
2. Key Features
- 8 Multigigabit RJ-45 ports (4× 100/1000/2500 Mbps + 4× 1/2.5/5/10 Gbps) with PoE++ support up to 90W per port
- 2× 1/10/25 GbE SFP28 uplink/stacking ports
- 240W total PoE budget
- Fanless operation for silent deployment
- Advanced Layer 3 routing capabilities (with license)
- USB Type-C and RJ-45 console management ports
- Stackable with up to 12 units per stack
3. Core Technologies
The ICX 8200-C08ZP supports a wide range of industry standards and protocols, including:
- IEEE 802.3bt (PoE++)
- IEEE 802.3bz (Multigigabit Ethernet)
- VXLAN for network segmentation
- OSPF, VRRP, PIM, VRF, GRE (with premium license)
- sFlow, SNMPv3, SSHv2, RADIUS/TACACS+
4. How It Works
The switch operates as a high-density access layer device, providing power and connectivity to wireless access points, IoT devices, and other network endpoints. It uses stacking technology to simplify management and increase redundancy. The fanless design ensures quiet operation in office or classroom environments.
5. Applications
- Enterprise Wi-Fi 6/6E/7 deployments
- IoT and smart building networks
- Education and healthcare environments
- High-power device connectivity (PTZ cameras, digital signage)
- Branch office and retail networking
6. Specifications
| Attribute | Value |
|---|---|
| Switching Capacity | 200 Gbps |
| Forwarding Rate | 148 Mpps |
| PoE Budget | 240W |
| Power Consumption (10% load) | 41W |
| Dimensions (HxWxD) | 4.4×27×26 cm |
| Weight | 3.23 kg |
| MTBF | 539,091 hours |
7. Advantages
- High PoE++ power delivery for next-gen devices
- Compact and silent fanless design
- Future-proof multigigabit and 25GbE uplinks
- Stackable with easy management via RUCKUS Cloud, SmartZone, or Unleashed
- Advanced security and segmentation with VXLAN
8. Service & Support
All RUCKUS ICX 8200 switches come with a limited lifetime warranty and 3 years of remote TAC support. Next-business-day advanced replacement is available in most regions. Optional on-site support and extended service plans can be added.
9. Frequently Asked Questions
Q: How many switches can be stacked together?
A: Up to 12 ICX 8200 switches can be stacked into a single logical unit.
Q: What is the maximum PoE power per port?
A: The ICX 8200-C08ZP supports up to 90W per port via PoE++ (802.3bt).
Q: Is the switch quiet enough for classroom use?
A: Yes, the fanless design makes it completely silent.
10. Precautions
- Use only high-temperature C15 power cords for this model.
- Ensure adequate ventilation to prevent overheating.
- Verify compatibility with existing network infrastructure before deployment.
- Follow local electrical and safety regulations during installation.
