Ruckus Icx 8200-48p High-Performance Network Switch for Businesses
Product Details:
| Brand Name: | Ruckus |
| Model Number: | RUCKUS ICX 8200-48P |
| Document: | RUCKUS ICX 8200 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RUCKUS ICX 8200-48P | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 5.57 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 451 W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 Uplinks | Transport Package: | Carton |
| Specification: | 37cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | Business Network Switch,48p Network Switch |
||
Product Description

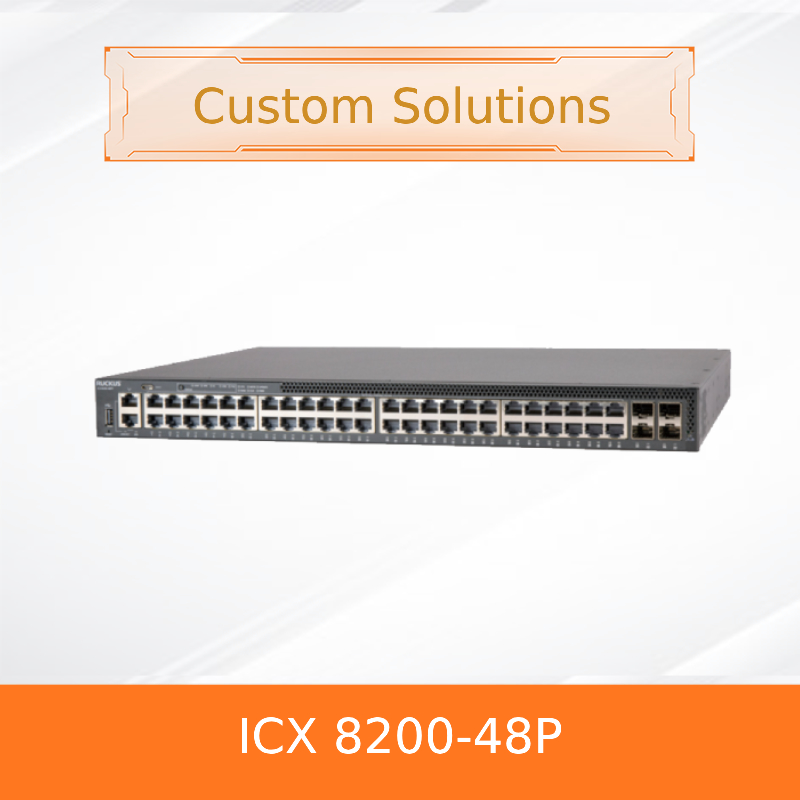

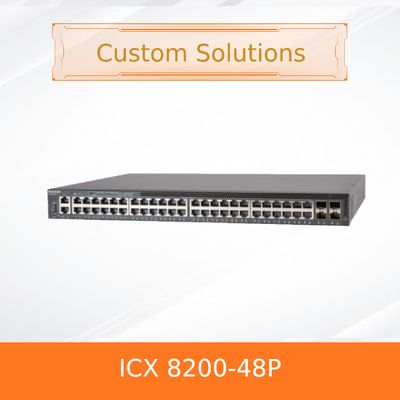

RUCKUS ICX 8200-48P: High-Density PoE+ Stackable Access Switch
The RUCKUS ICX 8200-48P is an enterprise-class stackable access switch designed to support next-generation Wi-Fi 6/6E/7, IoT deployments, and high-density PoE environments. It offers 48 Gigabit Ethernet PoE+ ports, four 25GbE uplink/stacking ports, and advanced Layer 3 features—all backed by a limited lifetime warranty and three years of TAC support.
Key Features
- 48 x 10/100/1000 Mbps RJ-45 PoE+ ports with 802.3at support (30W per port)
- 4 x 1/10/25 GbE SFP28 ports for high-speed uplinks or stacking
- 370W PoE budget for powering APs, cameras, and IoT devices
- Advanced Layer 3 routing (static, RIP, OSPF, VRRP, VRF, PIM)
- Stackable with up to 12 units per stack and 10km stacking distance
- VXLAN support for secure network segmentation
Technology & Standards
The ICX 8200-48P supports a wide range of industry standards including IEEE 802.3at (PoE+), 802.1X, OSPF, VRRP, VXLAN, and Energy Efficient Ethernet (802.3az). It also features sFlow, SNMPv3, and OpenFlow for enhanced monitoring and software-defined networking (SDN) capabilities.
How It Works
The switch operates as a high-performance access layer device, providing Power over Ethernet to connected devices while supporting advanced traffic management via ACLs, QoS, and multicast routing. Its stacking capability allows multiple physical switches to operate as a single logical unit, simplifying management and increasing resiliency.
Typical Applications
- Enterprise campus networks
- High-density Wi-Fi 6/6E/7 deployments
- IoT and smart building infrastructure
- Education and healthcare environments
- Retail and hospitality networks
Specifications & Selection Guide
| Model | Ports | Uplinks | PoE Budget | Switching Capacity |
|---|---|---|---|---|
| ICX 8200-48P | 48 x Gigabit PoE+ | 4 x 25GbE SFP28 | 370W | 296 Gbps |
| ICX 8200-24P | 24 x Gigabit PoE+ | 4 x 25GbE SFP28 | 370W | 248 Gbps |
| ICX 8200-48ZP2 | 32 Gigabit + 16 Multigig PoE++ | 4 x 25GbE SFP28 | 1480W (dual PSU) | 344 Gbps |
Advantages
- Future-proof with 25GbE uplinks and multigigabit readiness
- High PoE budget for powering next-gen devices
- Simplified management via RUCKUS SmartZone, Cloud, or Unleashed
- Advanced security features including MACsec and 802.1X
- Limited lifetime warranty and 3-year TAC support
Service & Support
All RUCKUS ICX 8200 switches come with a limited lifetime warranty and 3 years of remote TAC support. Next-business-day advanced replacement is available in most regions. Optional extended support and licensing for advanced Layer 3 features are also offered.
Frequently Asked Questions
Q: What is the maximum PoE power per port?
A: The ICX 8200-48P supports up to 30W per port via IEEE 802.3at (PoE+).
Q: Can I stack this switch with other ICX 8200 models?
A: Yes, the ICX 8200 series supports mixed stacking with up to 12 units per stack.
Q: Is a license required for Layer 3 routing?
A: Basic Layer 3 features are included. Advanced features like OSPF and VRRP require a premium license.
Precautions
- Ensure adequate airflow and ambient temperature (0°C to 45°C).
- Use compatible SFP/SFP+ transceivers for optimal performance.
- Verify power budget before connecting high-power PoE devices.
- Complies with FCC, CE, RoHS, and TAA standards.
