Ruckus Ethernet Switch Icx8200-24f
Product Details:
| Brand Name: | Ruckus |
| Model Number: | ICX8200-24F |
| Document: | RUCKUS ICX 8200 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | ICX8200-24F | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | 24 | Weight: | 3.77 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 78W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 | Transport Package: | Carton |
| Specification: | 28cm*44cm*4.4cm | Trademark: | Ruckus |
| Highlight: | Ruckus Icx8200-24f,Ruckus Ethernet Switch |
||
Product Description

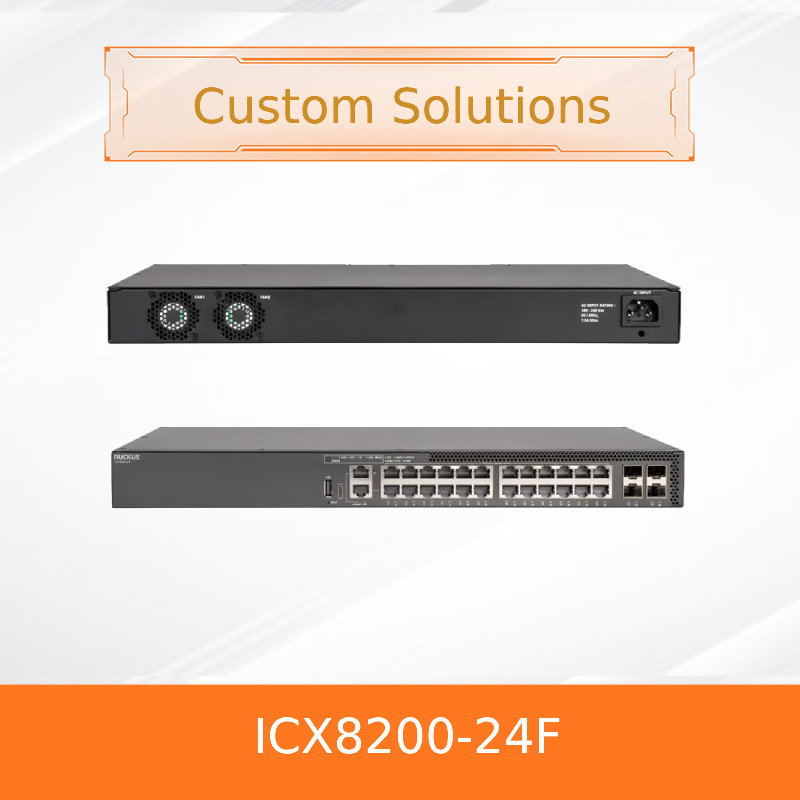

RUCKUS ICX 8200-24F Fiber Enterprise Switch
1. Product Overview
The RUCKUS ICX 8200-24F is a high-performance fiber optic switch designed for enterprise network environments requiring reliable fiber connectivity. This 24-port SFP switch delivers exceptional performance with four 25GbE uplink ports, making it an ideal solution for bandwidth-intensive applications and network aggregation. As part of the RUCKUS ICX 8200 series, this switch offers advanced Layer 2 and Layer 3 capabilities with future-proof expandability.
2. Key Characteristics
- 24× 1GbE SFP fiber ports for high-speed connectivity
- 4× 1/10/25 GbE SFP28 uplink/stacking ports
- Enterprise-class switching capacity of 248 Gbps
- Advanced Layer 3 routing capabilities (with license)
- Energy Efficient Ethernet (802.3az) compliance
- Stackable with up to 11 additional ICX 8200 switches
- Single integrated power supply with high reliability
3. Technology
The ICX 8200-24F incorporates advanced networking technologies including:
- SFP and SFP28 fiber optic technology
- VXLAN support for network segmentation
- OSPF, VRRP, VRF, PIM, PBR (with premium license)
- Energy Efficient Ethernet (802.3az)
- sFlow, SNMPv3, and SSHv2 for secure management
- IEEE 802.1X for port-based network access control
4. Working Principle
This fiber switch operates as a high-performance forwarding engine with hardware-accelerated switching capabilities. It supports both traditional 1GbE SFP modules and high-speed 25GbE SFP28 transceivers, allowing flexible deployment options. The switch utilizes advanced ASIC technology to deliver wire-speed performance across all ports while maintaining low latency and power consumption.
5. Applications
- Enterprise network aggregation layer
- Data center edge connectivity
- Fiber to the desk (FTTD) deployments
- High-bandwidth backbone connections
- Surveillance and security systems
- Educational and healthcare fiber networks
6. Specifications
| Specification | Value |
|---|---|
| Switching Capacity | 248 Gbps |
| Forwarding Rate | 184 Mpps |
| SFP Ports | 24× 1GbE |
| Uplink Ports | 4× 1/10/25 GbE SFP28 |
| Power Consumption | 65W (10% traffic) |
| Power Supply | 100W integrated |
| Dimensions (H×W×D) | 4.4×44×28 cm (1.73×17.32×11.02 in) |
| Weight | 3.77 kg (8.31 lb) |
| MTBF | 1,190,512 hours |
7. Advantages
- High-density fiber connectivity in compact form factor
- Future-proof 25GbE uplink capabilities
- Energy-efficient operation with low power consumption
- Advanced security features including MACsec and 802.1X
- Flexible stacking with other ICX 8200 series switches
- Comprehensive management options including RUCKUS Cloud
8. Service & Support
The RUCKUS ICX 8200-24F comes with a limited lifetime warranty and includes 3 years of remote TAC support. Next-business-day advanced replacement is available in eligible regions. Additional support services and extended warranty options can be customized to meet specific operational requirements.
9. FAQ
Q: What types of SFP modules are compatible with this switch?
A: The switch supports standard 1GbE SFP modules and 1/10/25GbE SFP28 modules for the uplink ports.
Q: Can this switch be stacked with other ICX 8200 models?
A: Yes, the ICX 8200-24F can be stacked with up to 11 other ICX 8200 series switches.
Q: Does this switch support Layer 3 routing?
A: Yes, it supports basic Layer 3 routing, with advanced features available through a premium license.
10. Precautions
- Use only compatible SFP/SFP+ modules approved by RUCKUS
- Ensure proper fiber cable management to avoid bend radius issues
- Maintain adequate ventilation around the switch
- Follow electrostatic discharge (ESD) precautions when handling modules
- Verify fiber optic connector cleanliness before installation
