Advanced Ruckus Icx7550-48-E2 Ethernet Switch for Seamless Connectivity
Product Details:
| Brand Name: | Ruckus |
| Model Number: | ICX7550-48-E2 |
| Document: | RUCKUS ICX 7550 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RUCKUS ICX7550-48-E2 | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 6.30 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 142.7 W |
| Uplinks: | 40 Gbps Qsfp+ | Transport Package: | Carton |
| Specification: | 44cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | Seamless Connectivity Ethernet Switch,Advanced Ethernet Switch,Ruckus Icx7550-48-E2 Ethernet Switch |
||
Product Description

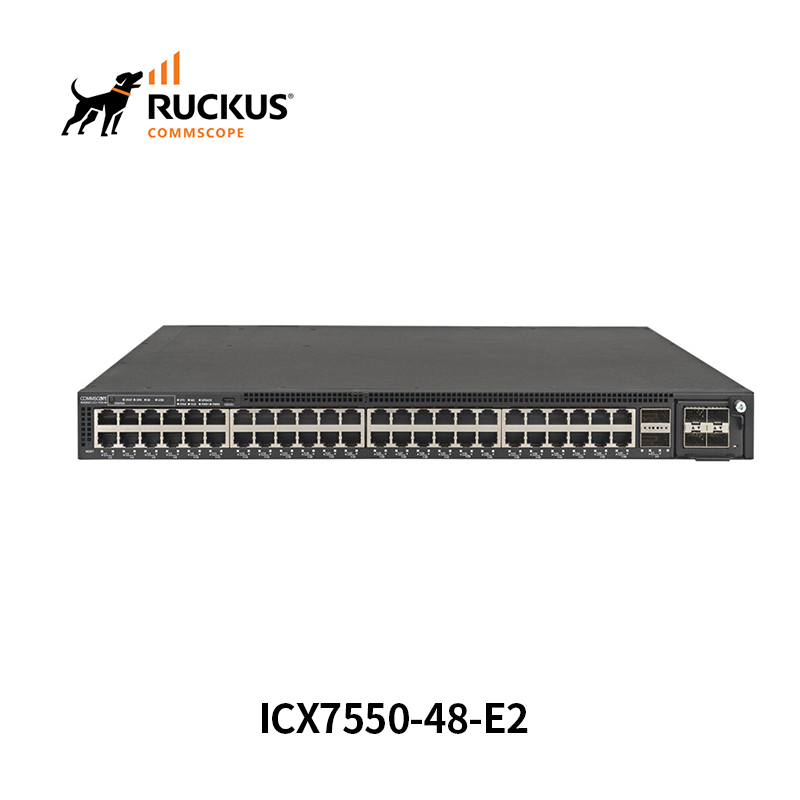

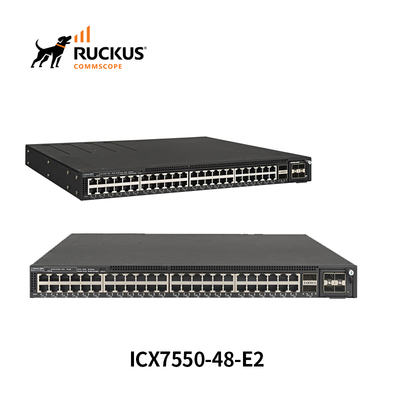

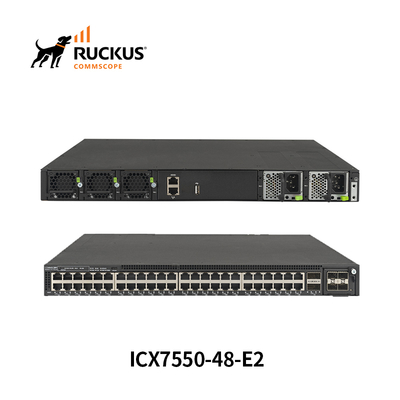

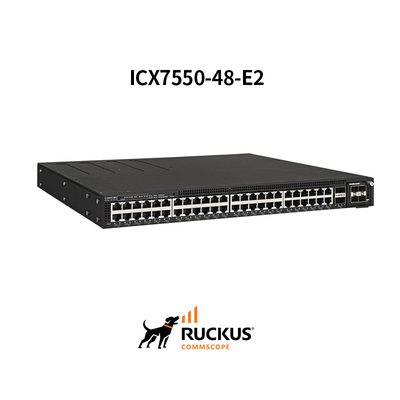

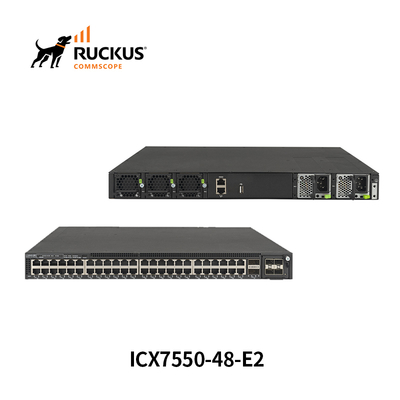

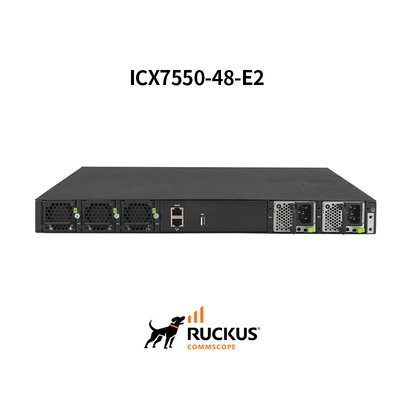

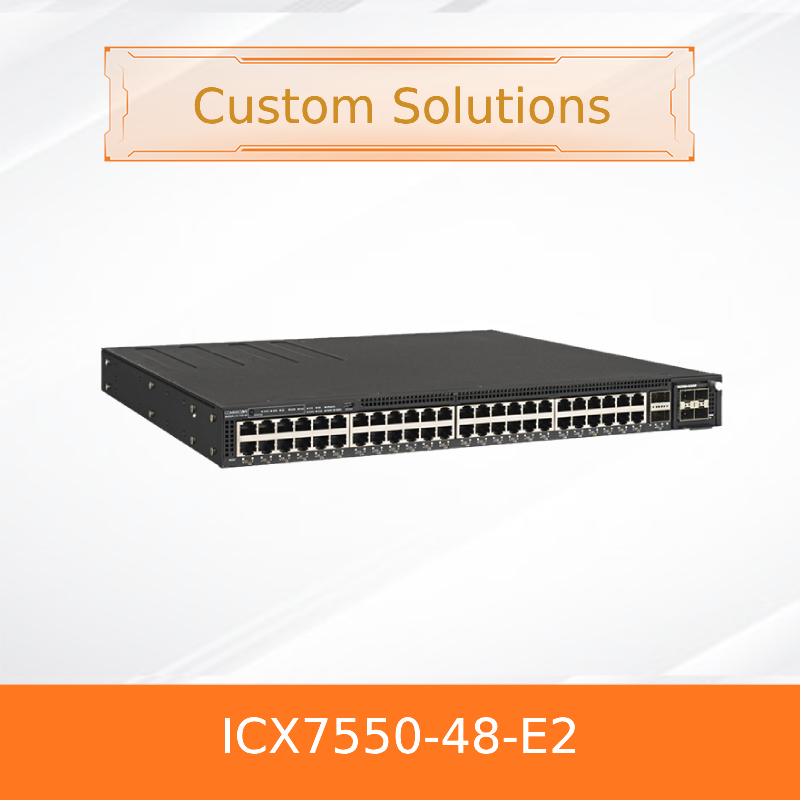

RUCKUS ICX 7550-48-E2 Enterprise Stackable Switch
The RUCKUS ICX 7550-48-E2 is a high-performance, mid-range stackable switch designed for modern enterprise networks. With 48 Gigabit Ethernet ports and dual 40G uplinks, this switch delivers the connectivity, power, and reliability needed for demanding Wi-Fi 6/7 deployments, IoT implementations, and aggregation layer applications.
Key Features & Benefits
- High-Density Connectivity: 48 x 1GbE ports plus 2 x 40G QSFP+ uplink/stacking ports
- Advanced Stacking Technology: Stack up to 12 units (576 ports) with 10km distance support
- Enterprise-Class Reliability: Redundant, hot-swappable power supplies and fans
- Future-Proof Design: Ready for Wi-Fi 7 and beyond with multigigabit support options
- Comprehensive Management: Support for SmartZone, Cloud, and Unleashed management platforms
Technical Specifications
| Specification | ICX7550-48-E2 |
|---|---|
| Port Configuration | 48 x 10/100/1000 Mbps RJ45 |
| Uplink Ports | 2 x 40G QSFP+ |
| Switching Capacity | 416 Gbps |
| Forwarding Rate | 309 Mpps |
| Power Supplies | Dual 400W AC (hot-swappable) |
| PoE Support | No (non-PoE model) |
| Stacking Capability | Up to 12 units per stack |
| Dimensions (HxWxD) | 1.73" x 17.32" x 16" |
| Weight | 6.30 kg (13.89 lb) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Applications & Use Cases
The RUCKUS ICX 7550 switch is ideal for:
- Enterprise access layer deployments
- Wi-Fi 6 and Wi-Fi 7 access point connectivity
- Network aggregation in mid-sized organizations
- IoT and smart building infrastructure
- Educational campus and healthcare networks
Advanced Technologies
This RUCKUS switch incorporates enterprise-grade technologies including:
- Advanced Layer 3 routing (BGP, OSPF, VRRP with license)
- MACsec 256-bit encryption for data security
- sFlow and SNMPv3 for network monitoring
- OpenFlow 1.3 support for SDN environments
- Perpetual PoE (on PoE models) for uninterrupted operation
Management Options
The ICX 7550 switch can be managed through multiple platforms:
- RUCKUS SmartZone: On-premises controller for unified management
- RUCKUS Cloud: Cloud-based management platform
- RUCKUS Unleashed: Controllerless solution for smaller deployments
- CLI and Web Interface: Industry-standard command line and web GUI
Frequently Asked Questions
Q: What is the difference between the ICX7550-48-E2 and PoE models?
A: The ICX7550-48-E2 is a non-PoE model with 48 Gigabit ports. For PoE capabilities, consider the ICX7550-48P-E2 which offers 802.3at PoE+ support.
Q: Can I mix different ICX 7550 models in a stack?
A: Yes, all ICX 7550 series switches can be mixed in a stack, providing flexibility in port density and functionality.
Q: What is the warranty for this switch?
A: RUCKUS ICX switches come with a limited lifetime warranty. See CommScope's website for specific terms and conditions.
Q: Does this switch support advanced routing protocols?
A: Yes, with the premium license, the switch supports BGP, OSPF, VRRP, and other advanced Layer 3 features.
Compatibility & Certifications
The RUCKUS ICX 7550 switch complies with major industry standards and certifications:
- FCC Part 15 Class A, EN 55022/CISPR-22 Class A
- UL 60950-1, IEC 60950-1, EN 60950-1
- RoHS compliant (6 of 6)
- WEEE compliant
- IEEE 802.1, 802.3, and 802.3az standards
