Ruckus Icx 8200-48PF Managed Switch for Reliable Data Transmission
Product Details:
| Brand Name: | Ruckus |
| Model Number: | RUCKUS ICX 8200-48PF |
| Document: | RUCKUS ICX 8200 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RUCKUS ICX 8200-48PF | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 5.51kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 854 W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 Uplinks | Transport Package: | Carton |
| Specification: | 37cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | Ruckus Icx 8200-48PF,Data Transmission Managed Switch |
||
Product Description

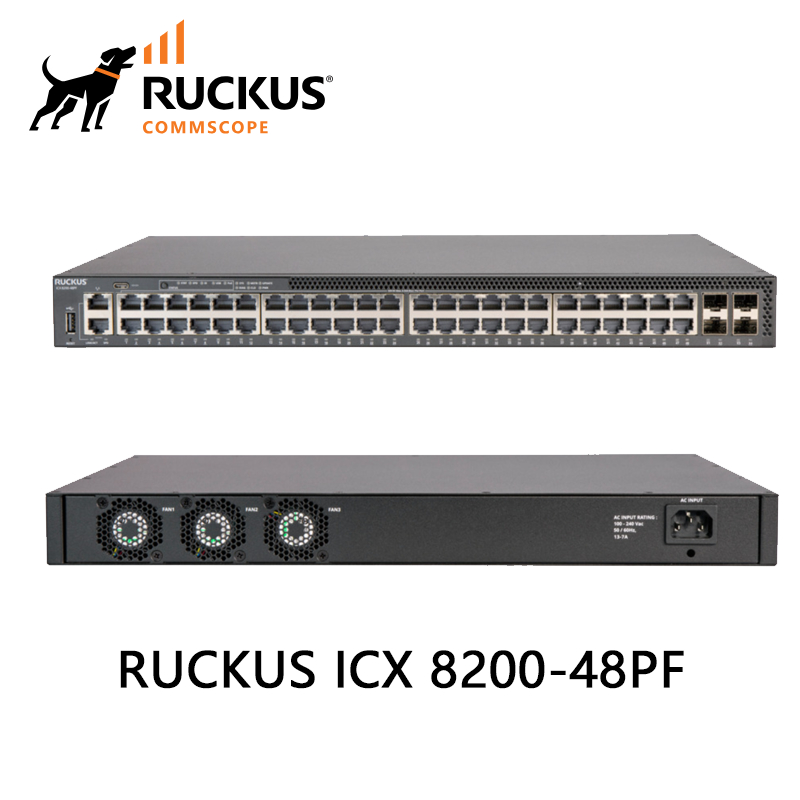

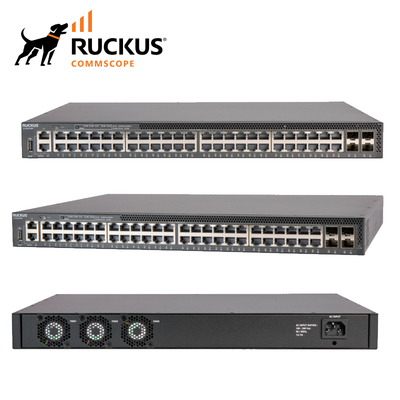

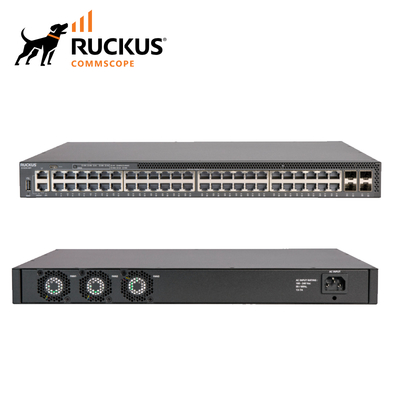

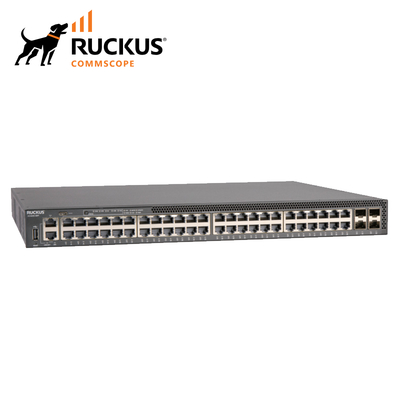

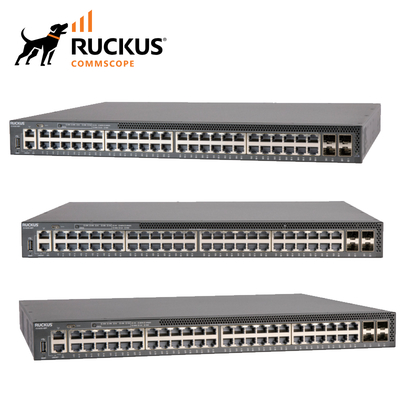

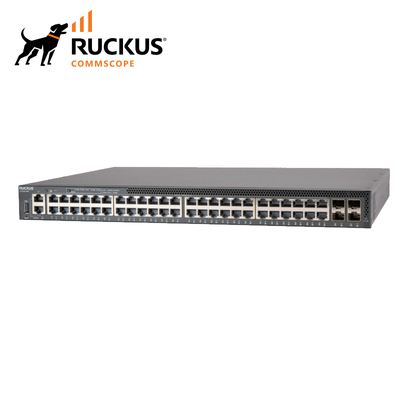

RUCKUS ICX 8200-48PF: High-Density PoE+ Stackable Access Switch
Designed for modern enterprise networks, the RUCKUS ICX 8200-48PF is a high-performance, stackable access switch that delivers robust Power over Ethernet (PoE+) support, advanced Layer 3 features, and future-ready scalability. Ideal for high-density wireless and IoT deployments, this Ruckus switch offers 48 Gigabit Ethernet ports with PoE+ support, four 25GbE uplink/stacking ports, and a 740W PoE budget. With support for advanced routing, cloud management, and high availability features, the ICX 8200 series is built to handle today’s most demanding network environments.
Key Features
- 48× 10/100/1000 Mbps RJ-45 PoE+ ports with 30W per port (802.3at)
- 4× 1/10/25 GbE SFP28 uplink/stacking ports
- 740W total PoE budget
- Advanced Layer 3 routing (static, RIP, OSPF, VRRP, VRF, PIM, PBR)
- Stackable with up to 12 units per stack and 10km between switches
- Unified management via RUCKUS SmartZone, Cloud, or Unleashed
- 3-year remote TAC support and limited lifetime warranty
Core Technologies
The ICX 8200 leverages cutting-edge networking standards including VXLAN for secure segmentation, MLAG for redundancy, Energy Efficient Ethernet (802.3az), and support for IPv4/IPv6 routing. It also features PoE++ (802.3bt) readiness, sFlow for traffic monitoring, and OpenFlow support for SDN integration.
How It Works
The switch operates as a stackable access layer device, aggregating traffic from end-user devices, wireless APs, and IoT sensors. It provides power and data connectivity over Ethernet, supports VLAN segmentation, and can perform Layer 3 routing. Using stacking technology, multiple switches operate as a single logical unit, simplifying management and increasing resiliency.
Typical Applications
- Enterprise campus networks
- High-density Wi-Fi 6/6E/7 deployments
- IoT and smart building infrastructure
- Education and healthcare environments
- Retail and hospitality networks
Specifications & Selection Guide
| Model | Ports | PoE Budget | Uplinks | Switching Capacity |
|---|---|---|---|---|
| ICX 8200-48PF | 48× 1G PoE+ | 740W | 4× 25GbE SFP28 | 296 Gbps |
| ICX 8200-24P | 24× 1G PoE+ | 370W | 4× 25GbE SFP28 | 248 Gbps |
| ICX 8200-48ZP2 | 32× 1G + 16× 2.5G PoE++ | 1480W | 4× 25GbE SFP28 | 344 Gbps |
Advantages
- Superior PoE density and budget for powering APs and IoT devices
- Future-proof 25GbE uplinks and stacking capabilities
- Centralized cloud or on-prem management options
- Advanced security features including MACsec and 802.1X
- High availability with redundant power and stacking support
Service & Support
All Ruckus switches include a limited lifetime warranty and 3 years of remote TAC support. Next-business-day advanced replacement is available in most regions. Professional services and extended support plans can be added for mission-critical deployments.
Frequently Asked Questions
Q: What is the maximum PoE output per port?
A: Each port supports up to 30W with IEEE 802.3at (PoE+).
Q: Can I stack the ICX 8200 with other models?
A: Yes, the ICX 8200 series supports mixed stacking across models with up to 12 units per stack.
Q: Is a license required for Layer 3 features?
A: Basic Layer 3 routing is included. Advanced features like OSPF and VRF require a premium license.
Q: What management options are available?
A: You can manage via RUCKUS SmartZone (on-prem), RUCKUS Cloud, or Unleashed (controllerless).
Q: Does it support IPv6?
A: Yes, full IPv6 routing and management are supported.
Important Notes
- Operating temperature: 0°C to 45°C (32°F to 113°F)
- Use only certified SFP/SFP+ modules for guaranteed performance
- Ensure adequate airflow and power capacity for full PoE load
- Complies with FCC, CE, RoHS, and TAA standards
