Advanced Ruckus Icx 8200-48zp2-E2 Switch with 150W Power Supply
Product Details:
| Brand Name: | Ruckus |
| Model Number: | RUCKUS ICX 8200-48ZP2-E2 |
| Document: | RUCKUS ICX 8200 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | ICX 8200-48zp2-E2 | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 4.96 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 1839W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 Uplinks | Transport Package: | Carton |
| Specification: | 28cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Highlight: | 150W Ruckus Icx 8200-48zp2-E2 Switch,ICX 8200-48zp2-E2 Switch |
||
Product Description

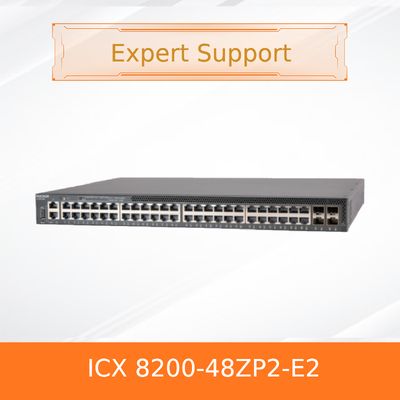

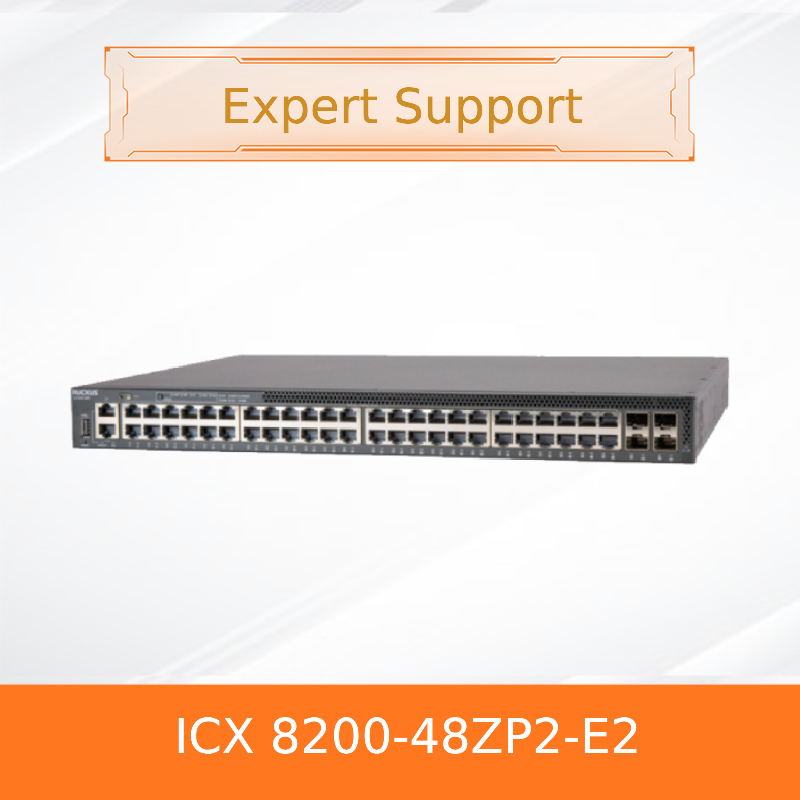

RUCKUS ICX 8200-48ZP2-E2 Multigigabit Stackable Switch
1. Product Overview
The RUCKUS ICX 8200-48ZP2-E2 is an advanced enterprise-class stackable access switch designed for next-generation network deployments. This high-performance switch combines 48 Multigigabit PoE++ ports with 25GbE uplink capabilities, making it ideal for modern wireless networks, IoT environments, and high-density connectivity requirements. With dual hot-swappable power supplies and advanced Layer 3 features, this switch delivers exceptional reliability and scalability for demanding business environments.
2. Key Characteristics
- 32× 10/100/1000 Mbps RJ-45 PoE+ ports
- 16× 100/1000/2500 Mbps RJ-45 PoE++ ports (90W)
- 4× 1/10/25 GbE SFP28 uplink/stacking ports
- Dual hot-swappable power supplies and fans
- 1480W total PoE budget (with two PSUs)
- Support for advanced Layer 3 routing (with license)
- VXLAN support for network segmentation
- Stackable up to 12 units with 10km distance
3. Technology
The ICX 8200-48ZP2-E2 incorporates cutting-edge networking technologies including:
- IEEE 802.3bt PoE++ (90W per port)
- Multigigabit Ethernet (802.3bz)
- VXLAN for advanced network segmentation
- OSPF, VRRP, VRF, PIM, PBR (with premium license)
- Energy Efficient Ethernet (802.3az)
- sFlow, SNMPv3, and SSHv2 for secure management
4. Working Principle
This RUCKUS switch operates as a high-throughput distributed switching platform with hardware-accelerated routing capabilities. It utilizes advanced stacking technology to create a single management domain from multiple physical switches, while the dual power supplies provide active-active redundancy and load sharing. The switch intelligently manages power allocation to support high-wattage devices such as Wi-Fi 6/6E/7 access points and IoT equipment.
5. Applications
- Enterprise campus networks with high-density wireless
- Wi-Fi 6/6E/7 access point deployments
- IoT and smart building infrastructure
- Healthcare and educational institutions
- High-performance retail and hospitality environments
6. Specifications
| Feature | Value |
|---|---|
| Switching Capacity | 344 Gbps |
| Forwarding Rate | 254 Mpps |
| PoE Budget | 1480W (with 2 PSUs) |
| Power Supplies | Dual hot-swap, 920W each |
| Max PoE++ Class 8 (90W) | 16 ports (with 2 PSUs) |
| Dimensions (HxWxD) | 4.4cm x 44cm x 37cm |
| Weight | 6.64 kg (with 2 PSUs) |
| MTBF | 536,710 hours |
7. Advantages
- High-density Multigigabit PoE++ support for next-generation devices
- Dual redundant power and cooling systems for maximum uptime
- Flexible stacking with 25GbE high-speed links
- Advanced security features including MACsec and 802.1X
- Unified management through RUCKUS SmartZone, Cloud, or Unleashed
- Future-proof design supporting Wi-Fi 7 and beyond
8. Service & Support
The RUCKUS ICX 8200-48ZP2-E2 includes a limited lifetime warranty and 3 years of remote TAC support. Next-business-day advanced replacement is available in supported regions. Additional support options and extended warranties can be purchased to meet specific operational requirements.
9. FAQ
Q: What is the maximum power output per port?
A: The switch supports up to 90W per port using PoE++ (802.3bt) technology.
Q: Can I mix different ICX 8200 models in a stack?
A: Yes, different ICX 8200 models can be mixed in a single stack for flexible deployment.
Q: What management options are available?
A: The switch supports RUCKUS SmartZone, Cloud, and Unleashed management platforms.
10. Precautions
- Ensure adequate airflow and cooling for full PoE++ operation
- Verify electrical circuit capacity before deploying high-power devices
- Use compatible SFP28 modules for 25GbE uplink connections
- Follow local electrical codes and safety regulations
- Implement proper rack mounting and cable management
