RUCKUS ICX 7550-24 Enterprise Stackable Switch Multi-Gigabit PoE
Product Details:
| Brand Name: | Ruckus |
| Model Number: | ICX 7550-24 |
| Document: | RUCKUS ICX 7550 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Highlight: | Ruckus ICX 7550 stackable switch,Multi-Gigabit PoE network switch,enterprise stackable switch with PoE |
||
|---|---|---|---|
Product Description

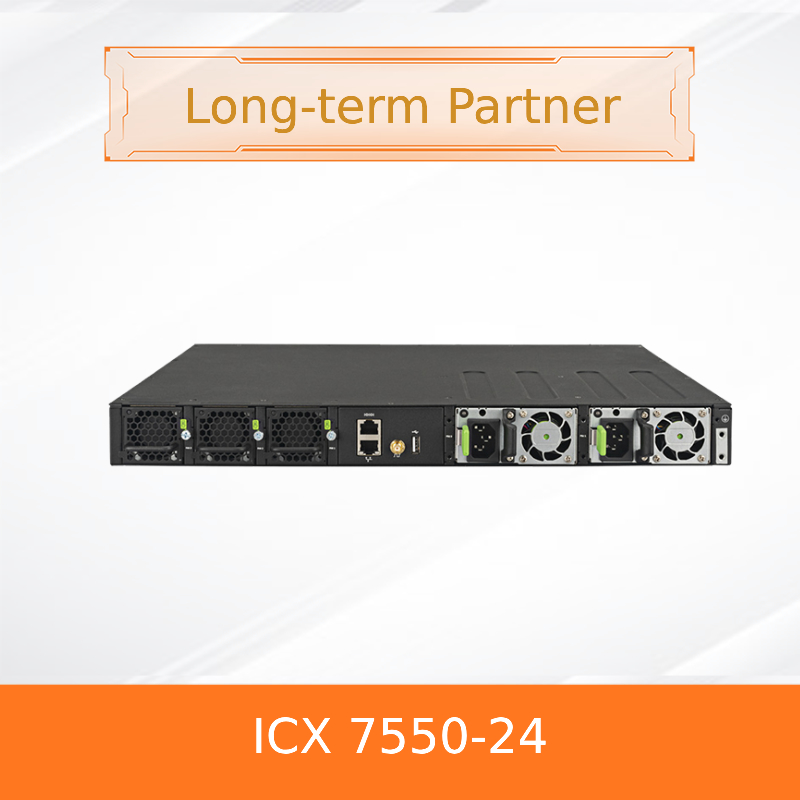

RUCKUS ICX 7550-24 Enterprise Stackable Switch
The RUCKUS ICX 7550-24 is a high-performance, mid-range stackable switch designed for modern enterprise access and aggregation layers. It delivers advanced features including multi-gigabit connectivity, high-power PoE, and robust Layer 3 capabilities, making it ideal for Wi-Fi 6/7 deployments, smart buildings, and high-density campus environments.
Key Features
- 24 x 1G/2.5G/5G/10G Multi-Gigabit ports with 802.3bt PoE++ (90W per port)
- Up to 1900W total PoE budget with dual power supplies
- Perpetual PoE and Fast Boot PoE for uninterrupted operation
- Advanced Layer 3 routing (BGP, OSPF, VRRP) with license upgrade
- Flexible 100GbE uplinks and stacking support
Technology Overview
The ICX 7550-24 supports a wide range of enterprise-grade protocols including MACsec encryption, OpenFlow 1.3, sFlow, and comprehensive IPv4/IPv6 routing. It features hitless failover, redundant power, and hot-swappable fans for maximum uptime.
Applications
This switch is ideal for:
- High-density Wi-Fi 6/7 access point deployment
- Smart building infrastructure (lighting, sensors, digital signage)
- Campus and branch aggregation
- IoT and converged network environments
Specifications
| Feature | Specification |
|---|---|
| Ports | 24 x Multi-Gigabit RJ45 (1/2.5/5/10G) |
| PoE Support | 802.3bt (90W per port), 1900W total budget |
| Uplinks | 2 x 40/100GbE QSFP28 (modular) |
| Switching Capacity | 900 Gbps |
| Forwarding Rate | 669 Mpps |
| Power Supplies | Dual hot-swappable, 1200W AC (included in bundle) |
| Dimensions (HxWxD) | 1.73" x 17.32" x 16" |
| Weight | 15.39 lbs (with PSUs) |
Why Choose the ICX 7550-24?
This switch offers superior PoE density, future-proof multi-gigabit ports, and chassis-like stacking capabilities—all in a compact form factor. It supports advanced features like MACsec encryption and cloud management via RUCKUS Cloud or SmartZone.
Service & Support
All RUCKUS switches include a limited lifetime warranty. We offer 24/7 technical support, fast delivery, and integration services. Optional extended support plans are available.
FAQ
Q: Does the ICX 7550-24 support stacking?
A: Yes, it supports stacking of up to 12 units with 100GbE links over fiber.
Q: What is Perpetual PoE?
A: It allows PoE devices to remain powered during switch reboots or upgrades.
Q: Is a license required for Layer 3 routing?
A: Basic routing is included; advanced features like BGP and OSPF require a license.
Precautions
- Ensure adequate cooling and power capacity for full PoE load.
- Use compatible RUCKUS optics and modules for guaranteed performance.
- Verify software version for feature support (e.g., VXLAN in future releases).
