RUCKUS ICX 8200-48ZP2-E High-Density Multigigabit PoE++ Stackable Switch
Product Details:
| Brand Name: | Ruckus |
| Model Number: | ICX 8200-48ZP2-E |
| Document: | RUCKUS ICX 8200 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RUCKUS ICX 8200-48ZP2-E | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 4.96 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 1839W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 Uplinks | Transport Package: | Carton |
| Specification: | 28cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | Icx 8200-48zp2-E,Ruckus Switch Icx 8200-48zp2-E,Ruckus 8200-48zp2-E Switch |
||
Product Description

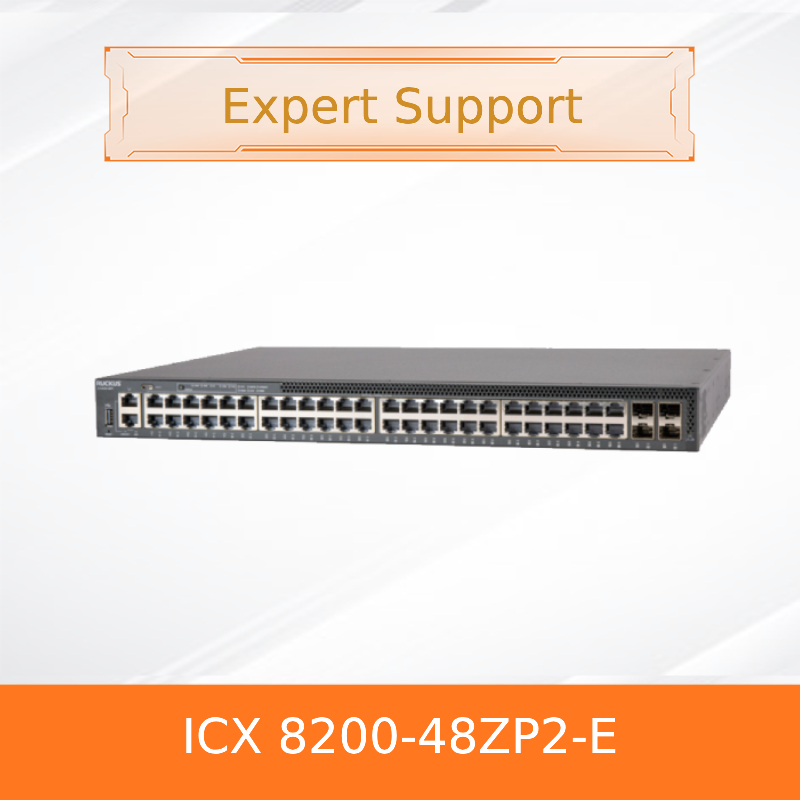

RUCKUS ICX 8200-48ZP2-E Stackable Access Switch
The RUCKUS ICX 8200-48ZP2-E is an enterprise-class, stackable access switch engineered for next-generation wireless, IoT-intensive campus networks. It combines high-density Multigigabit and Gigabit PoE++ connectivity with advanced L3 features, robust security, and resilient hardware design. This switch is ideal for powering high-demand environments such as modern offices, educational institutions, and healthcare facilities, offering future-proof scalability and reliability.
Key Features
- 48 Ports: 32x Gigabit PoE+ and 16x Multigigabit PoE++ (2.5G) RJ45 ports
- High PoE Budget: 740W with one PSU, expandable to 1480W with dual hot-swap power supplies
- Flexible Uplinks: 4x 1/10/25 GbE SFP28 ports for stacking or uplink
- Advanced Stacking: Supports up to 12 units per stack with 10km distance
- Enhanced Security: VXLAN, ACLs, 802.1X, and Secure Management Options
Core Technologies
The ICX 8200 series supports a wide range of industry standards including IEEE 802.3bt (PoE++), 802.1X, VXLAN, OSPF, VRRP, and OpenFlow. It also features Energy Efficient Ethernet (802.3az) and advanced QoS mechanisms for traffic prioritization.
How It Works
The switch operates as a fully managed L2/L3 device, providing PoE power to connected devices such as Wi-Fi 6/6E/7 access points, IP cameras, and IoT sensors. It uses stacking technology to combine multiple physical switches into a single logical unit, simplifying management and increasing redundancy. Advanced routing protocols and VXLAN support enable secure segmentation and scalable network design.
Typical Applications
- Enterprise and campus access layer deployments
- High-density Wi-Fi 6/6E/7 environments
- IoT and smart building infrastructure
- Education and healthcare networks
- Converged data and voice networks
Specifications & Selection Guide
| Model | Port Configuration | PoE Budget | Uplink Ports | Power Supply |
|---|---|---|---|---|
| ICX 8200-48ZP2-E | 32x 1G PoE+ + 16x 2.5G PoE++ | 740W (1 PSU) / 1480W (2 PSU) | 4x 25G SFP28 | Dual Hot-Swap |
| ICX 8200-24ZP | 24x 2.5G PoE++ | 740W | 4x 25G SFP28 | Fixed |
| ICX 8200-48PF | 48x 1G PoE+ | 740W | 4x 25G SFP28 | Fixed |
Advantages
- Superior PoE capacity for high-power devices
- High-density Multigigabit support for Wi-Fi 6/7 APs
- Resilient stacking with hitless failover
- Advanced Layer 3 features with licensing option
- Multiple management options: SmartZone, Cloud, Unleashed
Service & Support
All RUCKUS ICX 8200 switches come with a limited lifetime warranty and 3 years of remote TAC support. Next-business-day advanced replacement is available in eligible regions. Professional services and extended support plans can be added.
Frequently Asked Questions
Q: What is the maximum PoE power per port?
A: The ICX 8200-48ZP2-E supports up to 90W per port (PoE++ Class 8).
Q: Can I mix different ICX 8200 models in a stack?
A: Yes, the ICX 8200 series supports mixed-model stacking up to 12 units.
Q: Is a license required for Layer 3 routing?
A: Basic L3 features are included; advanced features like OSPF and VRRP require a premium license.
Q: What is the warranty period?
A: The switch comes with a limited lifetime warranty and 3-year TAC support.
Q: Does it support cloud management?
A: Yes, it can be managed via RUCKUS Cloud, SmartZone, or Unleashed.
Important Notes
- Ensure proper cooling and airflow for PoE-heavy deployments.
- Use compatible SFP/SFP+ modules for fiber uplinks.
- Verify power capacity and cabling for high-power PoE++ devices.
- Complies with FCC, CE, RoHS, and other international standards.
