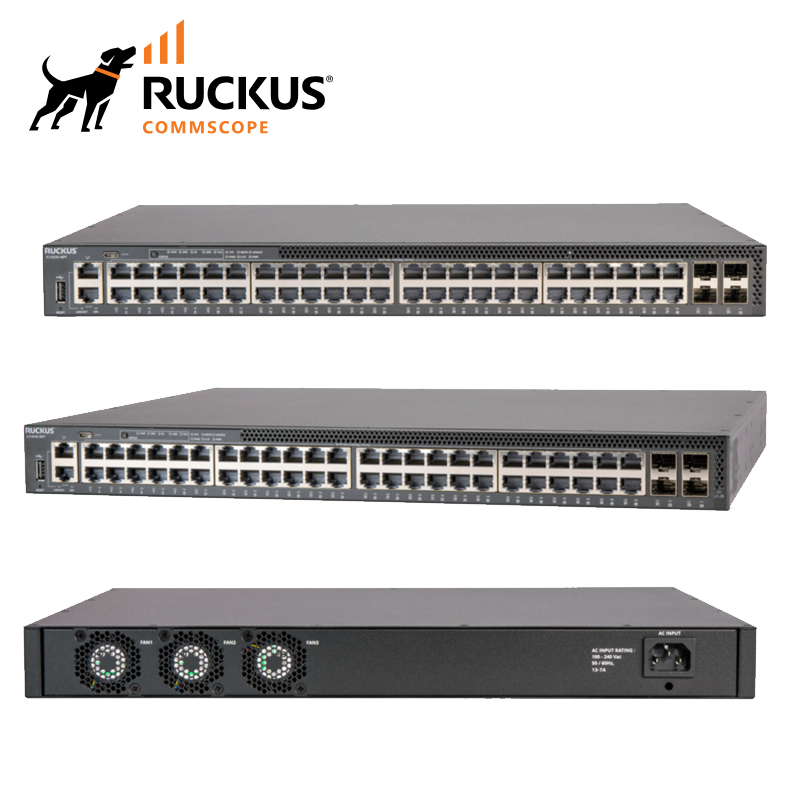

RUCKUS ICX8200-48PF2-E Stackable Access Switch
Product Details:
| Brand Name: | Ruckus |
| Model Number: | RUCKUS ICX8200-48PF2-E |
| Document: | RUCKUS ICX 8200 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RUCKUS ICX8200-48PF2-E | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 6.39 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 740 W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 Uplinks | Transport Package: | Carton |
| Specification: | 37cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Highlight: | Icx8200-48PF2-E Ruckus Switch,Ruckus Icx8200-48PF2-E |
||
Product Description
RUCKUS ICX8200-48PF2-E Stackable Access Switch
1. Product Overview
The RUCKUS ICX8200-48PF2-E is an enterprise-class, stackable access switch designed to meet the demands of modern, high-density networks. It supports 48 Gigabit Ethernet PoE+ ports and 4x 25GbE SFP28 uplink/stacking ports, delivering robust performance, advanced Layer 3 features, and high-power PoE capabilities in a scalable form factor. Ideal for wireless-first and IoT deployments, this switch offers future-proof expandability and reliability.
2. Key Characteristics
- 48x 10/100/1000 Mbps RJ-45 PoE+ ports
- 4x 1/10/25 GbE SFP28 uplink/stacking ports
- 740W PoE budget (single PSU), up to 1440W with dual PSUs
- Hot-swappable power supplies and fans for high availability
- Advanced Layer 3 routing (with license): OSPF, VRRP, VRF, PIM, PBR, GRE
- VXLAN support for enhanced segmentation and security
- Stackable with up to 12 units per stack
3. Core Technologies
The ICX8200-48PF2-E leverages advanced technologies including:
- IEEE 802.3bt (PoE++), 802.3at (PoE+)
- VXLAN for overlay networking
- OSPF, VRRP, VRF, PIM, PBR, GRE
- sFlow, SNMPv3, SSHv2, ACLs
- Energy Efficient Ethernet (802.3az)
4. Working Principle
The switch operates as a high-performance access layer device, providing Power over Ethernet to connected devices such as Wi-Fi 6/6E/7 APs, IP cameras, and IoT sensors. It uses hardware-based forwarding and stacking technology to ensure low latency and high throughput. Redundant power and cooling modules enable continuous operation even during component failure.
5. Applications
- Enterprise campus networks
- High-density Wi-Fi deployments
- IoT and smart building infrastructure
- Education and healthcare facilities
- Retail and hospitality environments
6. Specifications & Selection Guide
| Model | Ports | Uplinks | PoE Budget | Power Supply | Switching Capacity |
|---|---|---|---|---|---|
| ICX8200-48PF2-E | 48x 1G PoE+ | 4x 25GbE SFP28 | 740W (1 PSU) 1440W (2 PSU) |
Dual Hot-Swap | 296 Gbps |
7. Advantages & Selling Points
- High PoE budget supports power-hungry devices like PTZ cameras and Wi-Fi 7 APs
- 25GbE uplinks future-proof your network backbone
- Stackable architecture simplifies management and scalability
- Advanced security features including VXLAN and ACLs
- Limited lifetime warranty and 3-year TAC support
8. Service & Support
All RUCKUS ICX 8200 switches come with a limited lifetime warranty and 3 years of remote TAC support. Next-business-day advanced replacement is available in eligible regions. Professional services and extended support plans can be added.
9. Frequently Asked Questions
Q: What is the maximum PoE power per port?
A: The switch supports up to 30W per port with IEEE 802.3at (PoE+).
Q: Can I stack with other ICX 8200 models?
A: Yes, up to 12 switches of various ICX 8200 models can be stacked together.
Q: Is a license required for Layer 3 features?
A: Yes, advanced Layer 3 features require a premium license.
10. Precautions
- Ensure adequate ventilation and operating temperature (0°C to 45°C)
- Use compatible SFP28 optics and DAC cables for stacking
- Verify power budget before connecting high-power PoE devices
- Follow local electrical and safety regulations during installation
