Network Management Switch ICX7550-24P-E2-R3 Advanced Ruckus Switch
Product Details:
| Brand Name: | Ruckus |
| Model Number: | ICX7550-24P-E2-R3 |
| Document: | RUCKUS ICX 7550 Switch Data...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | Icx7550-24p | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | 24 | Weight: | 6.11 Kg |
| Operating Temperature: | Operating: 0°c To 45°c | Power Supply: | 1123.7 W |
| Uplinks: | 40 Gbps Qsfp+ | Transport Package: | Carton |
| Specification: | 44cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Highlight: | Network Management Switch ICX7550-24P-E2-R3,Ruckus Switch ICX7550-24P-E2-R3 |
||
Product Description

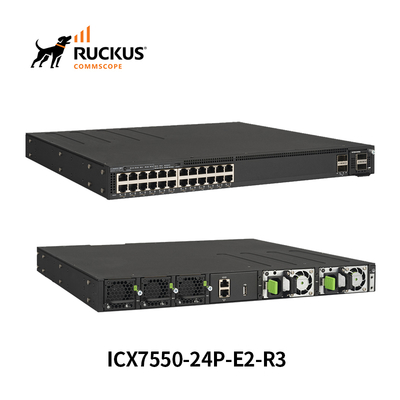

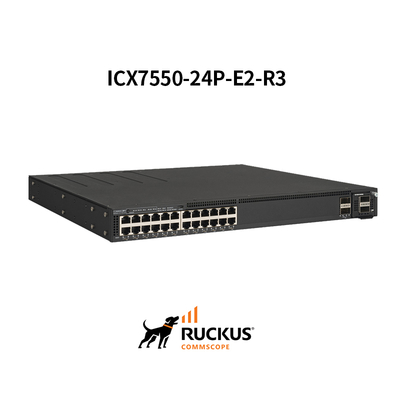

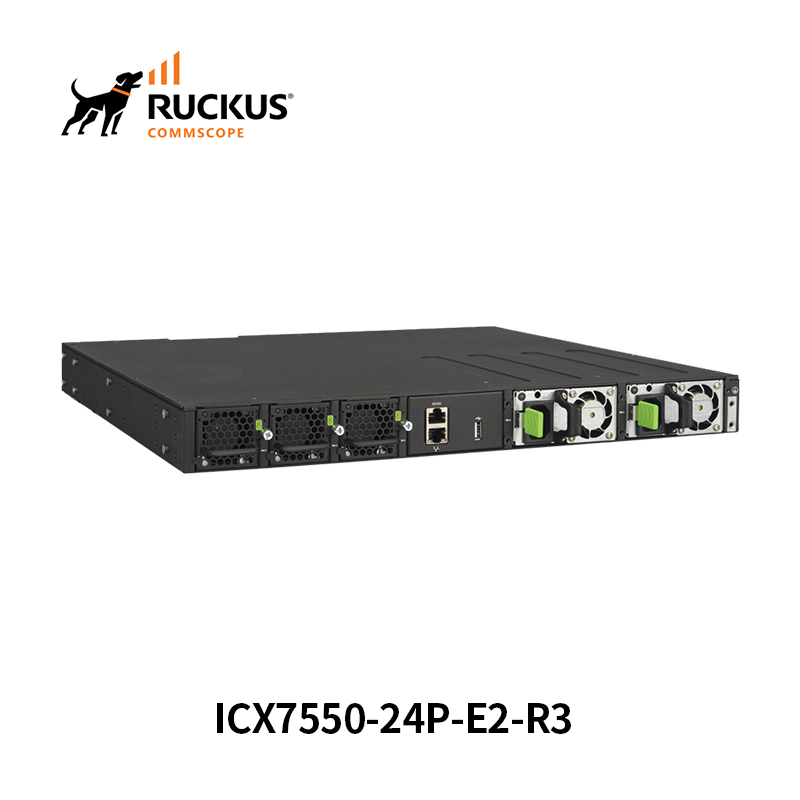

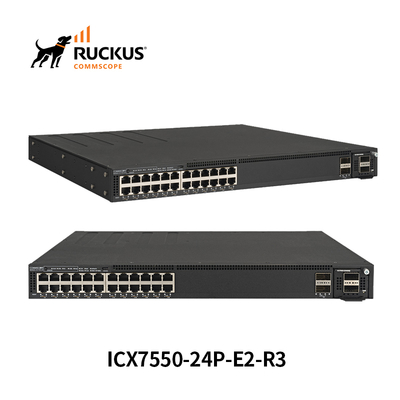

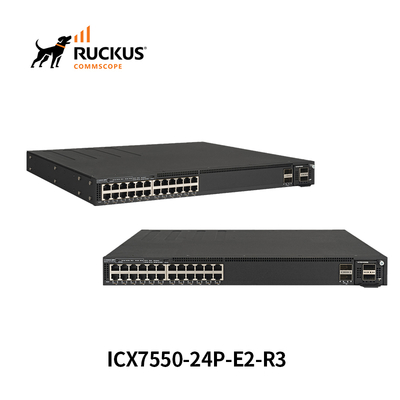

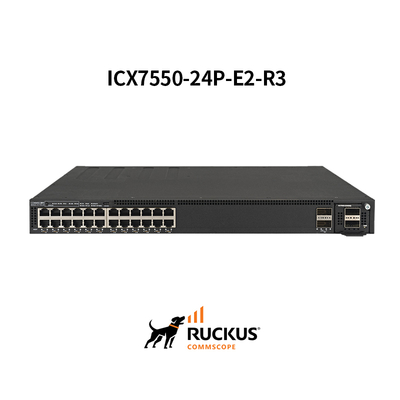

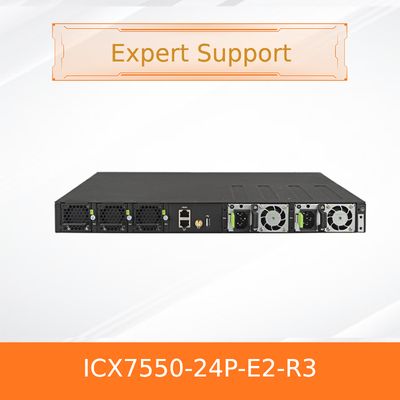

RUCKUS ICX7550-24P-E2-R3 Stackable Switch
1. Product Overview
The RUCKUS ICX7550-24P-E2-R3 is a mid-range enterprise-class stackable switch designed for high-performance access and aggregation layers. It features 24 Gigabit Ethernet ports with PoE+ support, delivering up to 30W per port and a total PoE budget of 1900W. With dual 40G QSFP+ uplink ports, advanced Layer 3 routing capabilities, and support for perpetual PoE, this switch is ideal for modern Wi-Fi 6/7 deployments, IoT networks, and smart building infrastructure.
2. Key Features
- 24 x 10/100/1000 Mbps PoE+ ports (802.3at)
- 2 x 40G QSFP+ uplink/stacking ports
- Up to 1900W PoE budget with dual power supplies
- Perpetual PoE and Fast Boot PoE support
- Advanced Layer 3 routing (BGP, OSPF, VRRP)
- Stackable up to 12 units
- 3-year remote support included
3. Supported Technologies & Standards
- IEEE 802.3at PoE+, 802.3bt Ready
- IPv4/IPv6 Routing (RIP, OSPF, BGP)
- MACsec Encryption (128/256-bit)
- sFlow, SNMPv3, RADIUS/TACACS+
- OpenFlow 1.3 for SDN Support
- LLDP, QoS, VRF, VXLAN
4. How It Works
The RUCKUS ICX 7550 operates as a stackable switch, allowing multiple units to function as a single logical device. It uses hitless failover and in-service software upgrades (ISSU) to maintain uptime. PoE devices remain powered during reboots thanks to perpetual PoE technology. The switch supports advanced traffic management, ACLs, and dynamic routing protocols to optimize network performance.
5. Applications
- Enterprise Wi-Fi 6/7 Access Point connectivity
- IoT and smart building deployments
- VoIP and video surveillance systems
- Campus and branch network aggregation
- Data center edge connectivity
6. Specifications
| Specification | Value |
|---|---|
| Ports | 24 x Gigabit PoE+, 2 x 40G QSFP+ |
| PoE Budget | 1900W |
| PoE Standard | 802.3at (30W/port) |
| Switching Capacity | 368 Gbps |
| Forwarding Rate | 274 Mpps |
| Power Supplies | Dual hot-swappable 1200W AC |
| Stacking | Up to 12 switches, 10km distance |
| Dimensions (HxWxD) | 1.73" x 17.32" x 16" |
| Weight | 6.74 kg (14.86 lb) |
7. Advantages
- High PoE power budget supports dense AP and IoT deployments
- Stacking flexibility reduces management overhead
- Perpetual PoE ensures zero downtime during upgrades
- Advanced security features including MACsec encryption
- Future-proof with 100G-ready uplink options
8. Service & Support
This RUCKUS switch comes with 3 years of remote support including software updates and technical assistance. We offer global shipping, 24/7 customer service, and on-site technical support. All products are covered by RUCKUS Limited Lifetime Warranty.
9. Frequently Asked Questions
Q: What is Perpetual PoE?
A: Perpetual PoE allows connected devices to remain powered during switch reboots or software upgrades.
Q: Can I stack different ICX 7550 models?
A: Yes, all ICX 7550 models can be stacked together for mixed configurations.
Q: Is MACsec encryption included?
A: MACsec is supported but requires a separate license (ICX-MACSEC-LIC).
Q: What is the maximum PoE power per port?
A: This model supports up to 30W per port (802.3at). For 90W PoE, consider the ICX7550-24ZP model.
10. Precautions
- Ensure adequate cooling and airflow in the rack environment
- Use compatible RUCKUS optics and power supplies
- Verify PoE power budget before connecting high-power devices
- Complies with FCC Class A, EN 55022, RoHS, and safety standards
- Operating temperature: 0°C to 45°C
