Wi-Fi 6 Ruckus Access Point 9u1-H550-Xx00
Product Details:
| Brand Name: | Ruckus |
| Certification: | ISO9001, RoHS, FCC, CE |
| Model Number: | 9U1-H550-XX00 |
| Document: | RUCKUS H550 Data Sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 9u1-H550-Xx00 | WiFi Antenna Type: | Built-in |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 48V |
| Antenna Gain: | 1dBi | Color: | White |
| Weight: | 278g | Operating Temperature: | 0°c (32°f) - 40°c (104°f) |
| Power Supply: | Poe+ : 12.54W | Transport Package: | Carton |
| Specification: | 89.5 Mm*178.5 Mm*29.3 Mm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | Wi-Fi 6 Ruckus Access Point,9u1-H550-Xx00 Ruckus Access Point |
||
Product Description

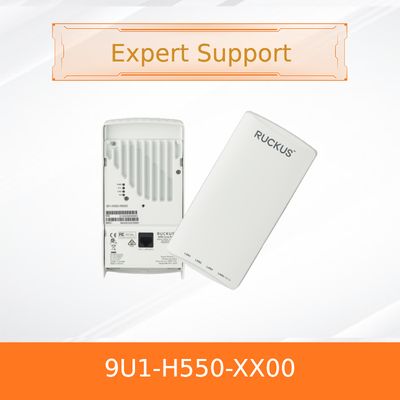

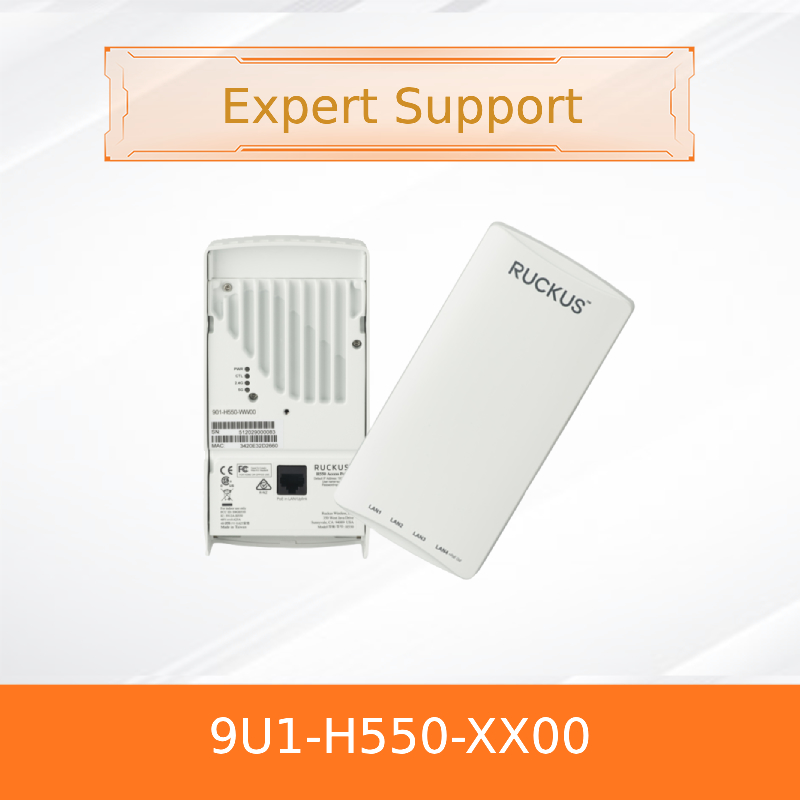

RUCKUS H550: Wall-Mounted Wi-Fi 6 Access Point with IoT and Integrated Switch
The RUCKUS H550 (Model: 9U1-H550-XX00) is a high-performance, wall-mounted Wi-Fi 6 (802.11ax) access point designed for high-density indoor environments. It combines advanced wireless technology with integrated IoT support (Bluetooth Low Energy and Zigbee) and a built-in 4-port Gigabit Ethernet switch. Ideal for hospitality, multi-dwelling units (MDUs), and enterprise rooms, this access point delivers reliable connectivity for both wired and wireless devices, including IP phones, IPTV, and smart room controls.
Key Features
- Wi-Fi 6 with 2x2:2 MU-MIMO and peak rates of 1.8 Gbps
- Integrated Bluetooth Low Energy (BLE) and Zigbee radios
- 4-port Gigabit Ethernet switch with PoE output support
- BeamFlex+ adaptive antenna technology for optimized coverage
- Cloud, on-prem, or controller-less management options
Core Technologies
The H550 access point leverages patented RUCKUS technologies including BeamFlex+ for real-time antenna pattern optimization, ChannelFly for AI-driven channel selection, and SmartCast for traffic prioritization. It supports Wi-Fi 6 standards, dual-band concurrent operation, and multiple IoT protocols, making it a future-proof wireless solution.
How It Works
The H550 access point mounts directly onto a standard electrical wall box. It receives power via 802.3bt PoE and provides both Wi-Fi 6 connectivity and wired Ethernet ports for in-room devices. The adaptive antennas continuously adjust signal direction per device, minimizing interference and maximizing throughput. IoT data from BLE or Zigbee devices is aggregated and backhauled over the same network infrastructure.
Typical Applications
This wireless access point is ideal for:
- Hotel guest rooms and hospitality suites
- Student housing and apartment complexes (MDUs)
- Healthcare patient rooms and senior living facilities
- Corporate offices and meeting rooms
- Smart building and IoT-enabled environments
Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Max PHY Rate | 1.8 Gbps (2.4GHz: 574 Mbps, 5GHz: 1200 Mbps) |
| MIMO | 2x2:2 SU/MU-MIMO |
| Ethernet Ports | 1x GbE PoE In, 4x GbE (1x PoE Out) |
| IoT Support | BLE, Zigbee (concurrent) |
| USB Port | 1x USB 2.0 (for future radio modules) |
| Power Options | 802.3af/at/bt PoE |
| Dimensions | 89.5 x 178.5 x 29.3 mm |
| Weight | 278g (without bracket) |
| Operating Temperature | 0°C to 40°C |
Advantages
- Superior coverage and capacity with BeamFlex+ adaptive antennas
- Reduced cabling and installation cost with integrated switch and IoT gateway
- Future-ready with Wi-Fi 6 and support for additional USB IoT modules
- Flexible deployment with multiple management options (cloud, on-prem, standalone)
- High client density support—up to 512 devices per access point
Service & Support
We offer a limited lifetime warranty on the H550 access point. Our technical team provides 24/7 consultation and support. Bulk order delivery is available with real-time inventory updates. Integration and configuration services can be provided upon request.
Frequently Asked Questions
Q: How many devices can the H550 access point support?
A: It can support up to 512 wireless and wired clients concurrently.
Q: Does it support mesh networking?
A: Yes, the H550 supports SmartMesh technology for self-healing wireless meshing.
Q: Can I use the PoE output to power a phone or camera?
A: Yes, one of the four LAN ports provides 802.3af PoE output for compatible devices.
Q: Is the access point suitable for outdoor use?
A: No, the H550 is designed for indoor installation only.
Precautions
- Ensure proper power sourcing—802.3bt PoE is required for full functionality.
- Do not block ventilation openings during installation.
- Verify country-specific channel compliance before deployment.
- Use only approved mounting brackets and accessories.
