High Performance Ruckus 9u1-H550-Xx02 Network Wireless Ap
Product Details:
| Brand Name: | Ruckus |
| Certification: | ISO9001, RoHS, FCC, CE |
| Model Number: | 9U1-H550-XX02 |
| Document: | RUCKUS H550 Data Sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 9u1-H550-Xx02 | WiFi Antenna Type: | Built-in |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 48V |
| Antenna Gain: | 1dBi | Color: | White |
| Weight: | 278g | Operating Temperature: | 0°c (32°f) - 40°c (104°f) |
| Power Supply: | Poe+ : 12.54W | Transport Package: | Carton |
| Specification: | 89.5 Mm*178.5 Mm*29.3 Mm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | 9u1-H550-Xx02 Wireless Ap,High Performance Wireless Ap,Wireless Ap High Performance |
||
Product Description

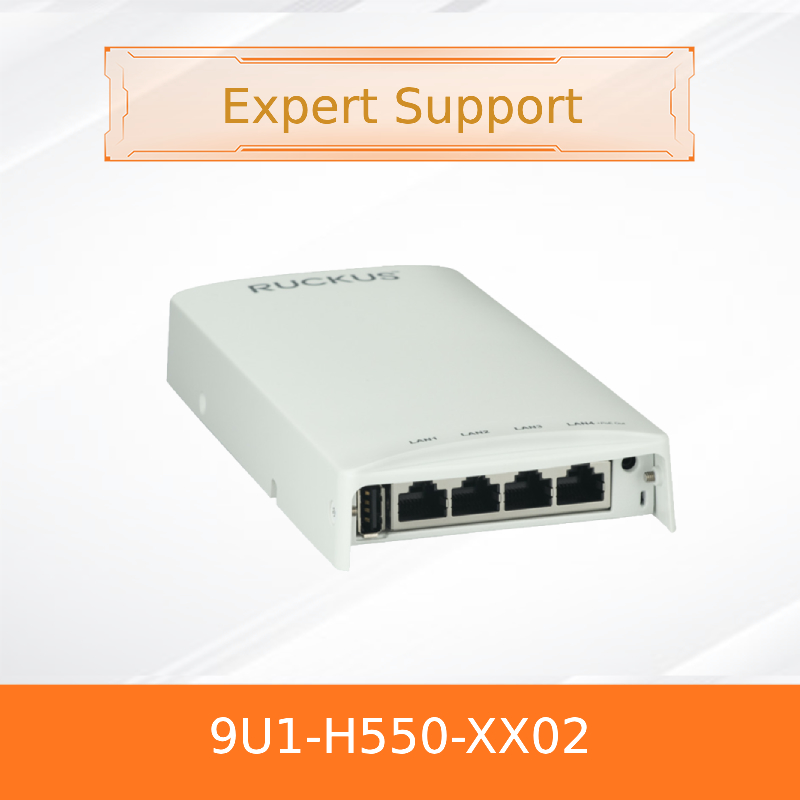

RUCKUS H550 Wall-Mounted Wi-Fi 6 Access Point
Model: 9U1-H550-XX02 (48v Passive PoE Out)
The RUCKUS H550 is a high-performance, wall-mounted Wireless Access Point designed for converged wired and wireless services in high-density environments. Combining Wi-Fi 6, IoT support, and a built-in 4-port Gigabit Ethernet switch, the H550 delivers exceptional in-room coverage and connectivity for hospitality, MDU, and enterprise applications.
Key Features
- Wi-Fi 6 (802.11ax) with 1.8 Gbps aggregate speed
- Integrated Bluetooth Low Energy (BLE) and Zigbee radios
- 4-port Gigabit Ethernet switch with PoE output
- Patented BeamFlex+ adaptive antenna technology
- Support for up to 512 clients per AP
Technology
The H550 leverages advanced technologies including:
- BeamFlex+: Real-time adaptive antenna patterns for optimized coverage
- ChannelFly: Machine learning-based channel selection for reduced interference
- MU-MIMO: Simultaneous multi-user data transmission
- SmartCast: QoS engine for prioritized traffic handling
- Dual-band concurrent radios (2.4 GHz and 5 GHz)
How It Works
The H550 mounts directly over a standard electrical wall outlet and connects via 802.3bt PoE. Its adaptive antennas continuously optimize signal direction for each connected device, while the built-in switch provides wired connectivity for IP phones, IPTV, and other in-room devices. IoT protocols like BLE and Zigbee are handled concurrently with Wi-Fi traffic, enabling unified device management.
Applications
- Hotel guest rooms
- Student dormitories
- Multi-dwelling units (MDUs)
- Healthcare patient rooms
- Enterprise office suites
Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Max PHY Rate | 2.4 GHz: 574 Mbps; 5 GHz: 1.2 Gbps |
| MIMO | 2x2:2 SU/MU-MIMO |
| Ethernet Ports | 1x GbE PoE In, 4x GbE LAN (1x PoE Out) |
| IoT Support | BLE, Zigbee (dual concurrent) |
| USB Port | 1x USB 2.0 Type A (for future modules) |
| Power Options | 802.3bt PoE, 802.3at, 802.3af |
| Dimensions | 89.5 x 178.5 x 29.3 mm |
| Weight | 278g (without bracket) |
| Operating Temperature | 0°C to 40°C |
Advantages
- All-in-one design reduces cabling and installation costs
- Superior coverage and capacity with BeamFlex+ technology
- Future-proof with USB expandability for additional IoT protocols
- Flexible management via cloud, on-prem, or controller-less modes
- Ideal for high-density environments with multiple SSID support
Service & Support
We offer:
- Limited lifetime warranty
- 24/7 technical support
- Global shipping and logistics
- Integration and configuration services
- Bulk ordering and customized solutions
Frequently Asked Questions
Q: How many devices can the H550 support per room?
A: The H550 can support up to 512 clients per AP, making it ideal for high-density environments.
Q: Does the H550 require a controller?
A: No, it can operate in standalone mode or be managed via cloud, virtual, or on-prem controllers.
Q: What PoE standard is required for full functionality?
A: 802.3bt PoE is recommended for full power delivery to all radios and ports.
Q: Can I add other IoT protocols?
A: Yes, via the optional USB module, supporting additional protocols like LoRa or Z-Wave.
Precautions
- Ensure proper PoE power sourcing for full feature enablement
- Install in a well-ventilated area to avoid overheating
- Verify compatibility with existing network controllers if used
- Follow local regulatory requirements for radio transmission
- Use certified cables and power adapters for optimal performance
