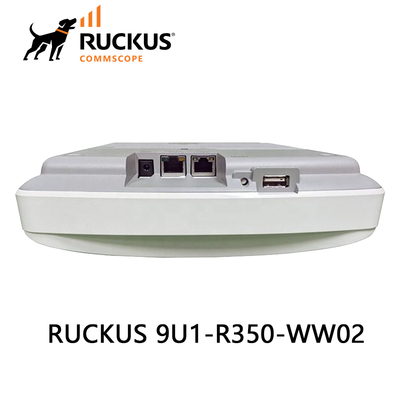

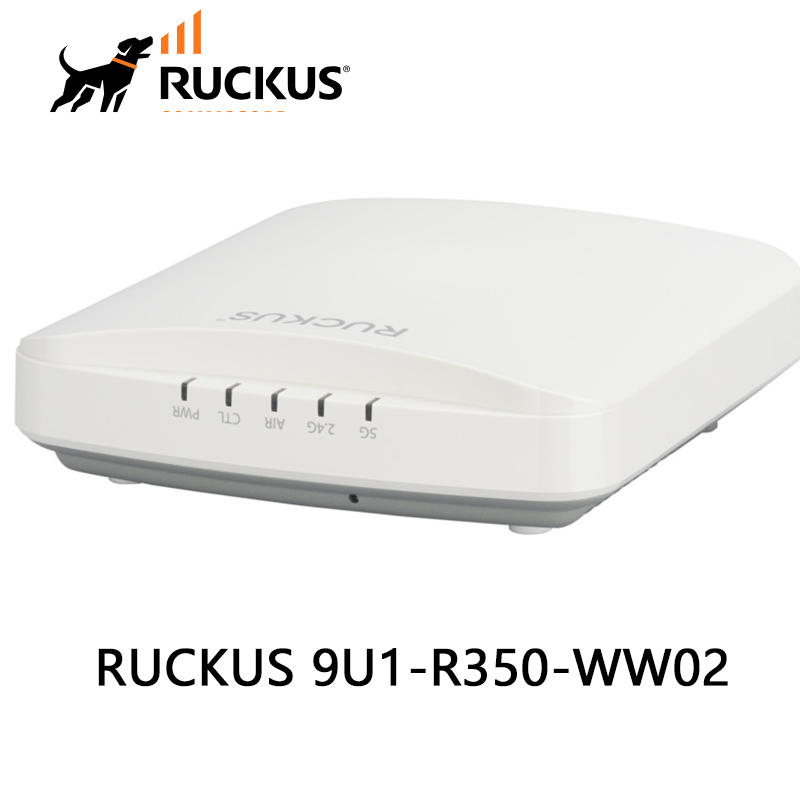

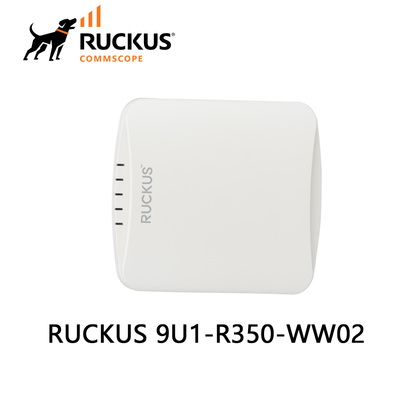

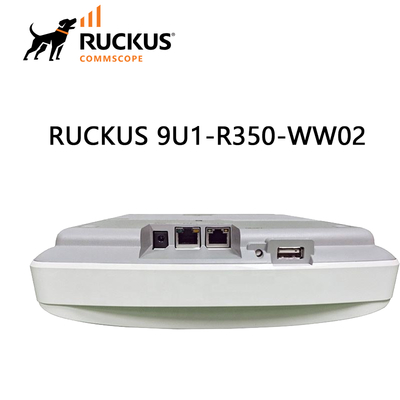

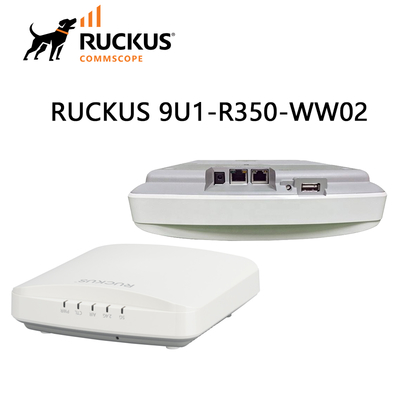

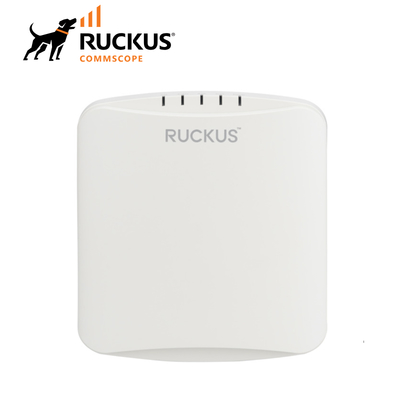

Hot Selling Ruckus Ap 9u1-R350-Ww02 Ruckus Network Wall-Mounted Access Point
Product Details:
| Brand Name: | Ruckus |
| Certification: | ISO9001, RoHS, FCC, CE |
| Model Number: | 9U1-R350-WW02 |
| Document: | ds-ruckus-r350.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RUCKUS 9U1-R350-WW02 | WiFi Antenna Type: | Built-in |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 5V |
| Antenna Gain: | 1dBi | Color: | White |
| Weight: | 0.562 Kg | Operating Temperature: | 0°c (32°f) - 40°c (104°f) |
| Power Supply: | Poe+ : 12.54W | Transport Package: | Carton |
| Specification: | 89.5 Mm*178.5 Mm*29.3 Mm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | Wall-Mounted Ruckus Network Access Point,9u1 Ruckus Network Access Point |
||
Product Description

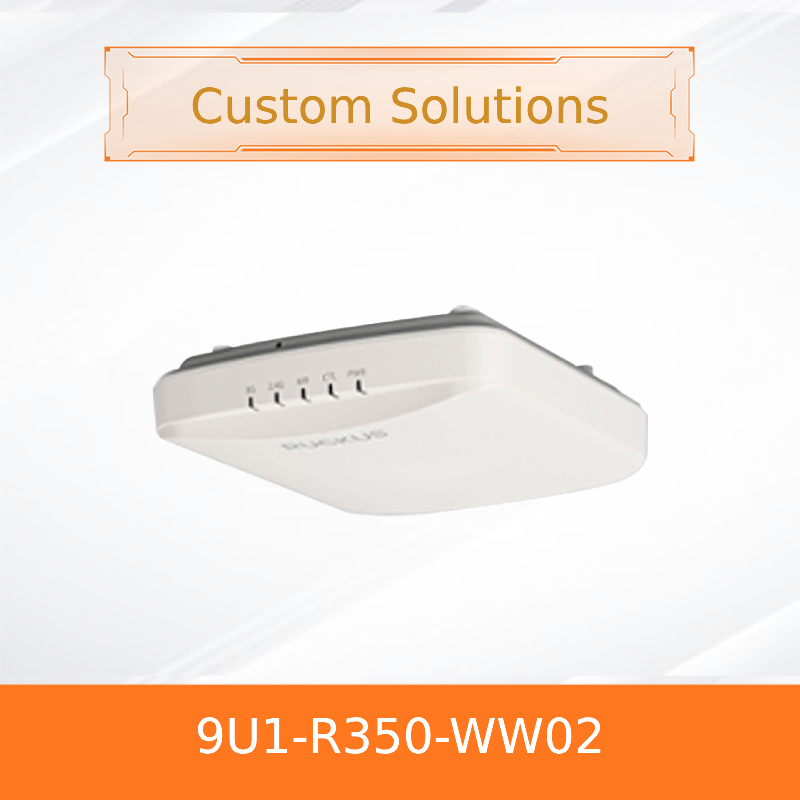

RUCKUS R350 Indoor Wi-Fi 6 (802.11ax) Access Point
The RUCKUS R350 is a high-performance, dual-band Wi-Fi 6 Access Point designed for small to medium-sized businesses, retail spaces, and branch offices. It delivers reliable, high-speed wireless connectivity with advanced features like BeamFlex adaptive antennas, SmartMesh technology, and IoT readiness—all at an affordable price point.
Key Features
- Wi-Fi 6 (802.11ax) technology for improved efficiency and capacity
- BeamFlex® adaptive antenna technology for optimized coverage
- Optional IoT support via USB module (BLE, Zigbee)
- SmartMesh™ for self-forming, self-healing wireless meshing
- Compact design with support for standard PoE and CAT 5e cabling
Core Technologies
The R350 leverages patented RUCKUS technologies including:
- BeamFlex: Dynamically selects antenna patterns per device for optimal signal strength.
- ChannelFly: Automatically finds less congested channels to maximize throughput.
- SmartMesh: Enables cable-free mesh networking with self-healing capabilities.
- WPA3 Security: Provides enhanced encryption for secure wireless communications.
How It Works
The RUCKUS R350 Access Point uses advanced RF management and adaptive antenna systems to direct Wi-Fi signals intelligently. Instead of broadcasting uniformly, it shapes antenna patterns in real-time to focus energy toward connected devices, reducing interference and extending range. The Wireless mesh capability allows multiple APs to form a resilient network without wired backhaul.
Typical Applications
- Small and medium-sized businesses (SMBs)
- Retail stores and restaurants
- Branch offices and multi-tenant buildings
- Public hotspots and hospitality venues
- IoT-ready environments with unified wireless infrastructure
Specifications
| Attribute | Specification |
|---|---|
| Wi-Fi Standards | 802.11ax (Wi-Fi 6), 802.11ac/n/g/b/a |
| Bands | Dual-band concurrent: 2.4 GHz & 5 GHz |
| MIMO | 2x2:2 (2.4 GHz), 2x2:2 (5 GHz) |
| Max PHY Rate | 1.774 Gbps |
| Ethernet Port | 1 x 1GbE (PoE supported) |
| USB Port | 1 x USB 2.0 (for IoT module) |
| Power Consumption | Max 12.62W (PoE) |
| Dimensions | 5.75" x 6.14" x 1.55" (14.6 x 15.59 x 3.93 cm) |
| Weight | 368g (13 oz) |
| Mounting | Wall, ceiling, desk |
Why Choose the RUCKUS R350?
- Superior coverage and capacity with BeamFlex adaptive antennas
- Future-proof with Wi-Fi 6 and IoT expansion capabilities
- Easy deployment with mesh support and existing cabling
- Multiple management options: cloud, on-prem, controller-less
- Lifetime warranty and enterprise-grade reliability
Service & Support
We offer:
- Lifetime hardware warranty
- 24/7 customer and technical support
- Global shipping and logistics
- Integration and configuration assistance
- Large inventory ready for bulk orders
Frequently Asked Questions
Q: Does the R350 support Power over Ethernet?
A: Yes, it supports standard 802.3af/at PoE, eliminating the need for a separate power adapter.
Q: Can I use the R350 outdoors?
A: No, the R350 is designed for indoor use only.
Q: Is the IoT module included?
A: No, the IoT module (BLE/Zigbee) is optional and sold separately.
Q: How many clients can connect to one AP?
A: The R350 supports up to 256 clients and 16 SSIDs per Access Point.
Important Notes
- Operates on 2.4 GHz and 5 GHz bands; check local channel restrictions.
- Requires CAT 5e or better cabling for PoE operation.
- For mesh functionality, ensure firmware supports SmartMesh.
- Certified for use in plenum spaces and compliant with IEEE, WFA, and safety standards.
