Wireless Ruckus Zoneflex R650 Ruckus Indoor Access Points 901-R650-WW00
Product Details:
| Brand Name: | Ruckus |
| Model Number: | 901-R650-WW00 |
| Document: | ds-zoneflex-R650.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Place Of Origin: | Beijing, China | Product Family: | Ruckus Indoor APs |
|---|---|---|---|
| Application: | Wireless AP | Product Name: | 901-R650-WW00 |
| Products Status: | Stock | Warranty: | 1 Year |
| Condition: | Original | Lead Time: | According To Stock |
| Highlight: | Wireless ruckus zoneflex r650,ruckus zoneflex r650 Access Points,R650 ruckus indoor access points |
||
Product Description

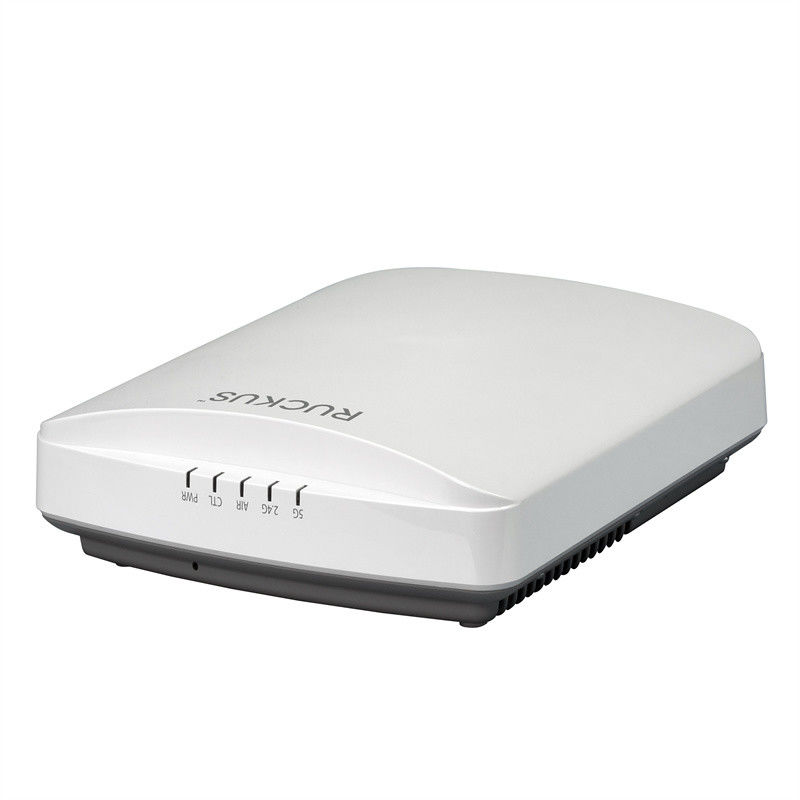

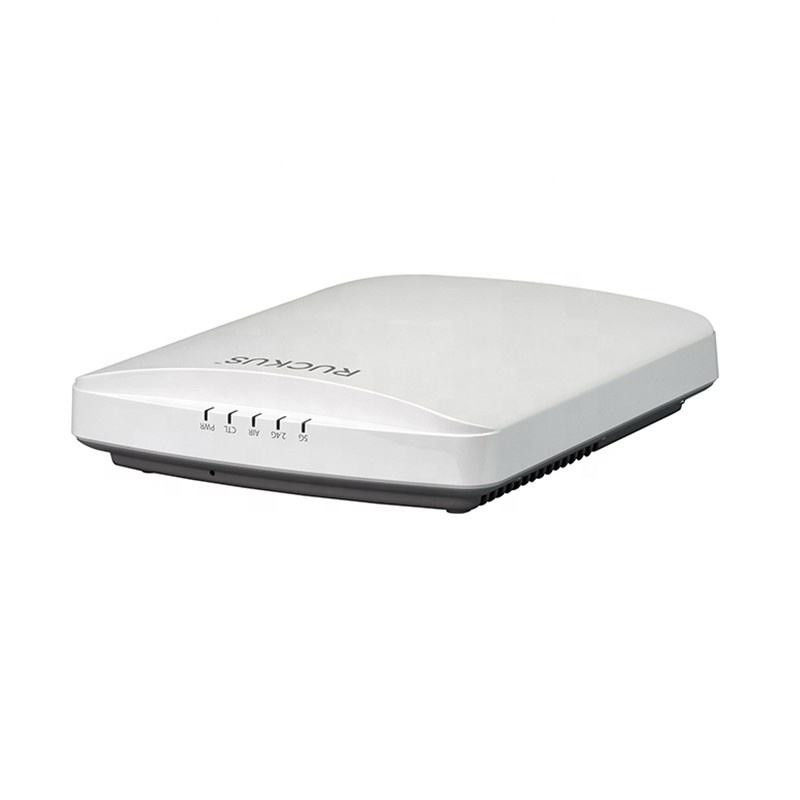

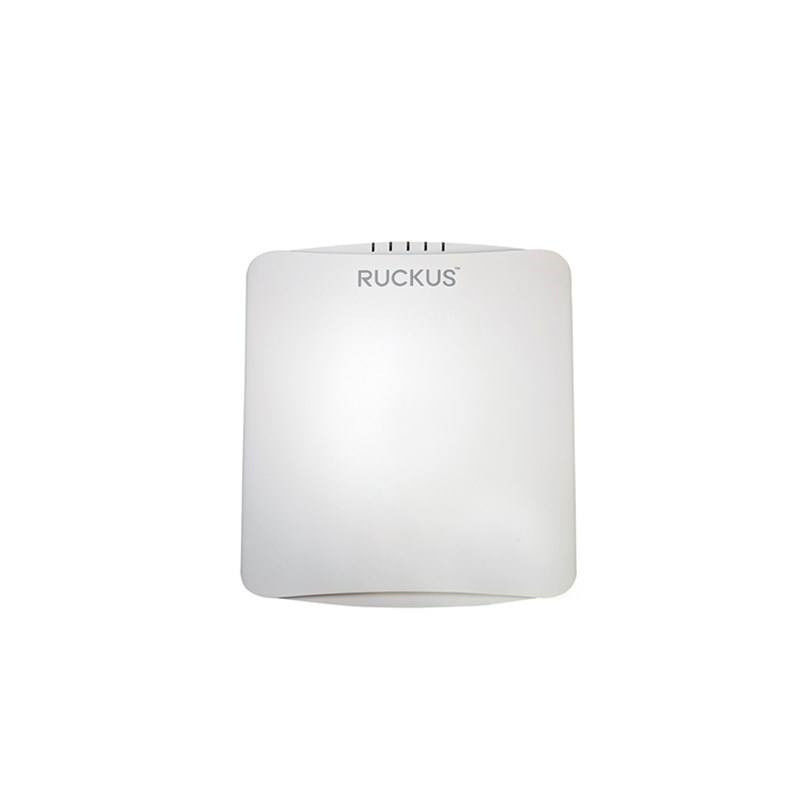

Ruckus R650 Indoor Wi-Fi 6 Access Point
The Ruckus R650 is a high-performance, dual-band 802.11ax wireless access point designed for medium to high-density indoor environments. It supports 6 spatial streams, features a 2.5GbE uplink, and includes built-in IoT radios for Zigbee and BLE. With patented BeamFlex+ adaptive antenna technology and AI-driven channel optimization, the R650 delivers superior coverage, capacity, and reliability for modern enterprise networks.
Key Features
- Wi-Fi 6 (802.11ax) with 4x4:4 MU-MIMO in 5GHz and 2x2:2 in 2.4GHz
- 2.5 Gigabit Ethernet port for high-speed backhaul
- BeamFlex+ adaptive antenna technology for optimized coverage
- Built-in Bluetooth Low Energy (BLE) and Zigbee radios
- Supports up to 512 client connections per access point
- Cloud, on-prem, or controller-less management options
Core Technologies
The R650 leverages advanced Wi-Fi 6 technologies including OFDMA, MU-MIMO, and Target Wake Time (TWT). It also incorporates Ruckus-exclusive features like ChannelFly for machine learning-based channel optimization and SmartMesh for self-forming wireless meshing. These technologies work together to maximize throughput and minimize interference in crowded RF environments.
How It Works
The R650 uses dynamic beamforming via BeamFlex+ antennas to direct signal strength toward connected devices on a per-packet basis. This real-time adaptation reduces dead zones and improves performance in challenging environments. Meanwhile, ChannelFly continuously scans and switches to the least congested channels, ensuring optimal bandwidth utilization without manual intervention.
Typical Applications
This wireless access point is ideal for:
- Enterprise offices and conference rooms
- K-12 and higher education classrooms
- Retail stores and shopping centers
- Healthcare facilities and clinics
- Hospitality venues and public lounges
Specifications
| Attribute | Specification |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Max PHY Rate | 2.4 GHz: 574 Mbps | 5 GHz: 2400 Mbps |
| Spatial Streams | 4x4:4 (5GHz), 2x2:2 (2.4GHz) |

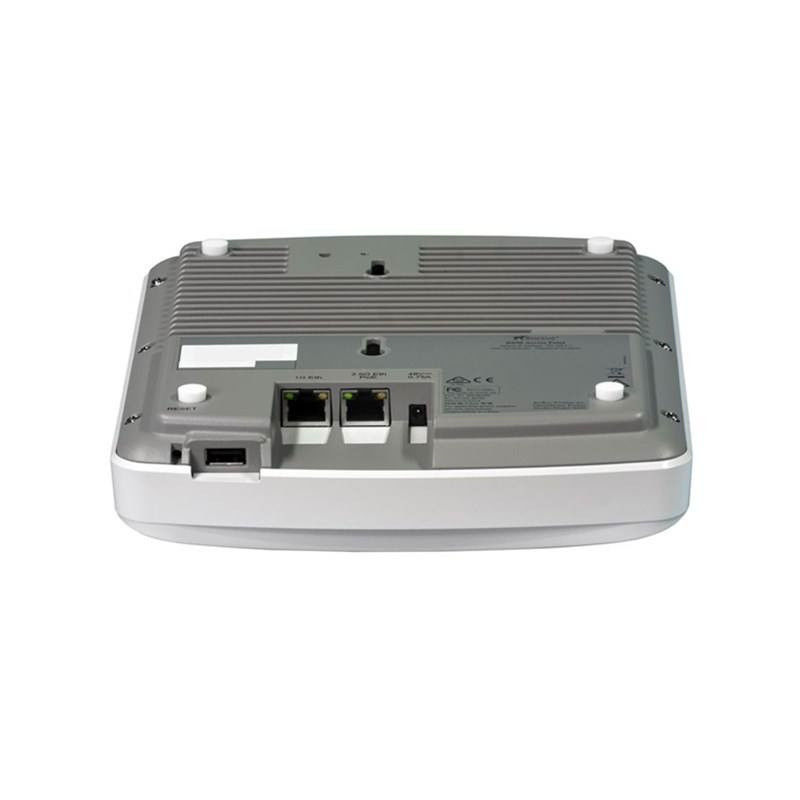

| Ethernet Ports | 1× 2.5GbE, 1× 1GbE |
| PoE Support | 802.3af/at |
| USB Port | 1× USB 2.0 Type A |
| Client Capacity | Up to 512 clients |
| Antenna Type | BeamFlex+ adaptive with polarization diversity |
| Dimensions | 8.8" x 7.6" x 1.9" (22.4 x 19.4 x 4.7 cm) |
| Weight | 1.88 lbs (0.854 kg) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Why Choose the R650?
The Ruckus R650 stands out among competing Wi-Fi 6 access points due to its intelligent antenna system, integrated IoT readiness, and flexible deployment options. It is designed for environments where reliability, density, and future-proofing are critical. Whether deployed as a standalone AP or as part of a large-scale network, the R650 delivers consistent, high-speed wireless connectivity.
Service & Support
We offer lifetime limited warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation and post-sales integration services to ensure seamless deployment and operation of your wireless network infrastructure.
Frequently Asked Questions
Q: Does the R650 support mesh networking?
A: Yes, it supports Ruckus SmartMesh for self-forming and self-healing wireless meshing.
Q: Can I use the R650 without a controller?
A: Yes, it can operate in controller-less mode using Ruckus Unleashed firmware.
Q: Is the power adapter included?
A: No, but it supports standard PoE and PoE+ injectors (sold separately).
Q: What IoT protocols are supported?
A: Built-in BLE and Zigbee, with expandability via pluggable IoT modules.
Important Notes
- Ensure proper PoE power sourcing (802.3at recommended for full functionality).
- Mounting brackets are sold separately for certain ceiling types.
- Regional variants available (-US, -WW, -ZZ); confirm compatibility before order.
- Certified for use in plenum spaces and compliant with IEC/EN railway standards.
