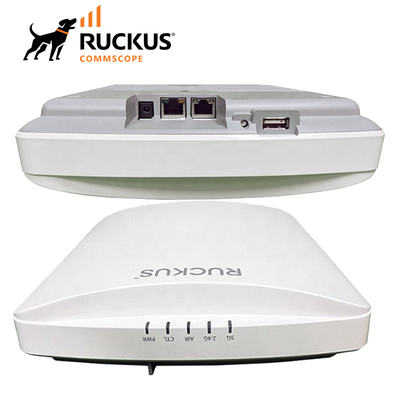

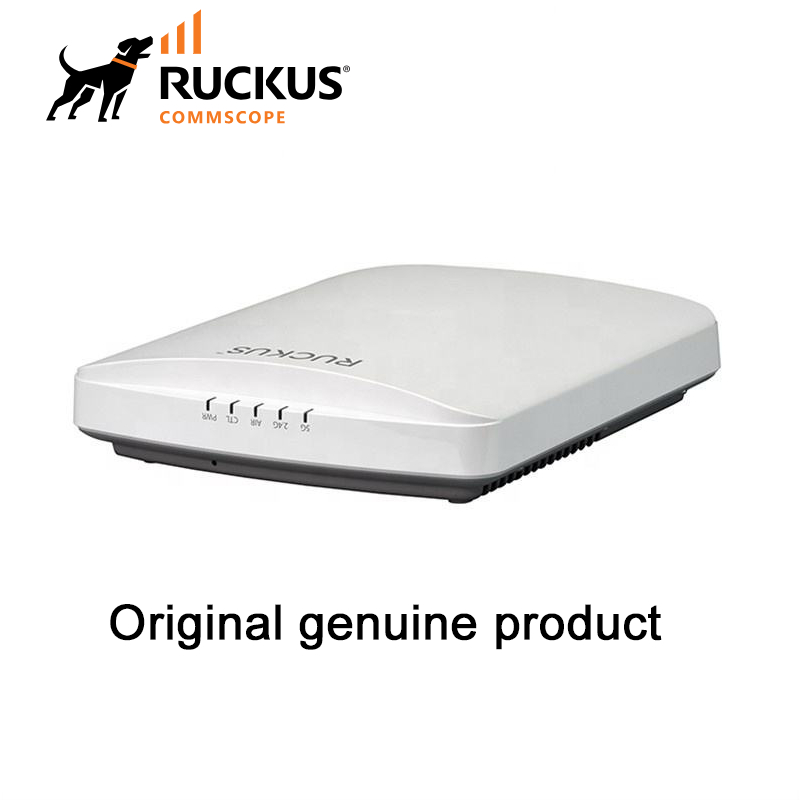

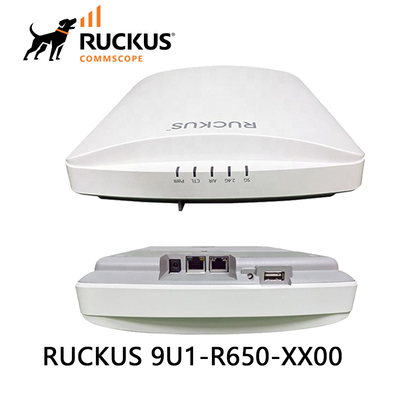

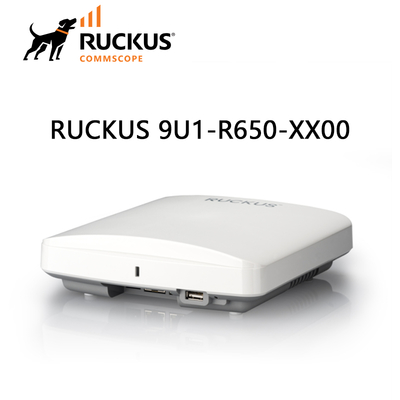

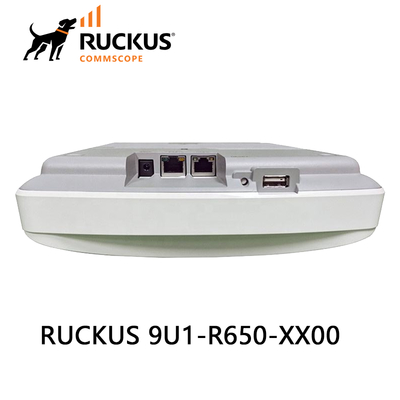

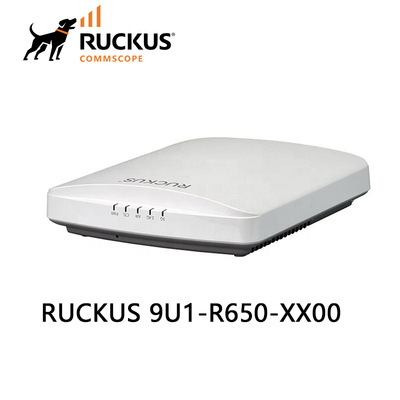

Ruckus 9u1-R650-Xx00 Access Point
Product Details:
| Brand Name: | Ruckus |
| Certification: | ISO9001, RoHS, FCC, CE |
| Model Number: | 9U1-R650-XX00 |
| Document: | ds-zoneflex-R650.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | RUCKUS 9U1-R650-XX00 | WiFi Antenna Type: | Built-in |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 48V |
| Antenna Gain: | 3dBi | Color: | White |
| Weight: | 0.854 Kg | Operating Temperature: | 0ºC (32ºF) - 50ºC (122ºF) |
| Power Supply: | Poe+ : 21.59W DC Power: 21.46W | Transport Package: | Carton |
| Specification: | 22.4cm*19.4cm*4.7cm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | 9u1-R650-Xx00,9u1-R650-Xx00 Access Point,Ruckus R650 Access Point |
||
Product Description
Ruckus R650 Indoor Wi-Fi 6 Access Point (9U1-R650-XX00)
1. Product Overview
The Ruckus R650 is a high-performance indoor Wi-Fi 6 (802.11ax) Access Point designed for medium-density environments such as offices, classrooms, and retail spaces. It supports 4x4:4 MU-MIMO in the 5GHz band and 2x2:2 in the 2.4GHz band, delivering a combined peak data rate of up to 2.97 Gbps. With a 2.5GbE Ethernet port and support for up to 512 clients, this Wireless AP ensures robust connectivity and future-proof performance.
2. Key Features
- Wi-Fi 6 (802.11ax) with 6 spatial streams (4x4:4 + 2x2:2)
- 2.5GbE Ethernet port for high-speed backhaul
- BeamFlex+ adaptive antenna technology for optimized coverage
- Built-in BLE and Zigbee radios for IoT convergence
- ChannelFly AI-driven channel optimization
- SmartMesh wireless self-healing mesh networking
- Support for up to 512 client connections
3. Technology & Standards
The R650 supports the latest Wireless standards including IEEE 802.11ax, 802.11ac, and backward compatibility with legacy protocols. It features OFDMA, MU-MIMO, WPA3 security, and advanced radio management technologies like SmartCast QoS and Spectrum Analysis.
4. How It Works
The R650 uses patented BeamFlex+ technology to dynamically select optimal antenna patterns per device, reducing interference and enhancing signal quality. ChannelFly uses machine learning to identify and switch to the least congested channels, ensuring maximum throughput. The Access Point also supports seamless IoT integration via its modular IoT bay.
5. Applications
Ideal for:
- Enterprise offices and conference rooms
- K-12 and higher education classrooms
- Retail stores and shopping centers
- Healthcare facilities
- Hospitality venues
6. Specifications
| Attribute | Value |
|---|---|
| Wi-Fi Standards | 802.11ax, 802.11ac, 802.11n, 802.11a/b/g |
| Spatial Streams | 4x4:4 (5GHz), 2x2:2 (2.4GHz) |
| Peak Data Rate | 2.97 Gbps |
| Ethernet Ports | 1x 2.5GbE, 1x 1GbE |
| PoE Support | 802.3af/at |
| Client Capacity | Up to 512 |
| Antenna Gain | Up to 3 dBi |
| Dimensions | 22.4 x 19.4 x 4.7 cm |
| Weight | 0.854 kg |
| Operating Temp | 0°C to 40°C |
7. Advantages
- Superior coverage and capacity with BeamFlex+ adaptive antennas
- Future-ready with Wi-Fi 6 and IoT convergence
- AI-driven channel optimization with ChannelFly
- Flexible deployment with SmartMesh wireless meshing
- Centralized or cloud management options
8. Service & Support
We offer lifetime warranty, 24/7 technical support, and global shipping. Our professional team ensures timely delivery and post-sales service including integration assistance and troubleshooting.
9. FAQ
Q: What is the maximum data rate of the R650?
A: The R650 supports up to 2.97 Gbps combined throughput.
Q: Does it support mesh networking?
A: Yes, it supports SmartMesh self-forming and self-healing mesh.
Q: Is the R650 IoT-ready?
A: Yes, it includes built-in BLE and Zigbee, with support for additional IoT modules.
Q: What power supply is required?
A: It supports 802.3af/at PoE or optional external power adapter.
10. Precautions
- Ensure proper ventilation and operating temperature (0°C–40°C).
- Use certified PoE injectors or switches for power delivery.
- Verify compatibility with existing network controllers or cloud platforms.
- Follow local RF regulations when configuring channels and power levels.
