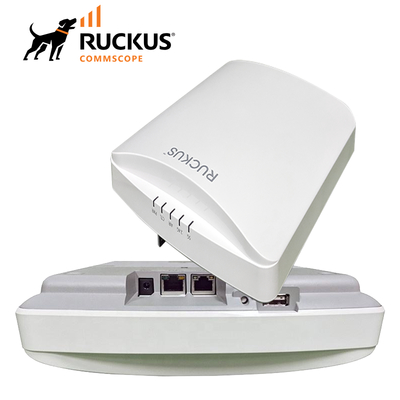

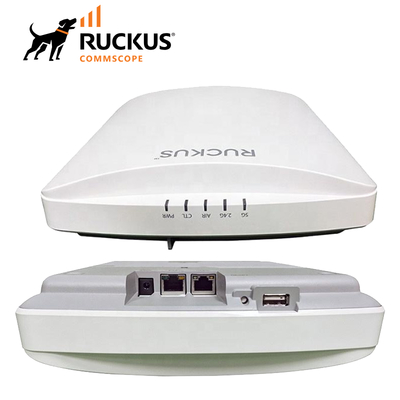

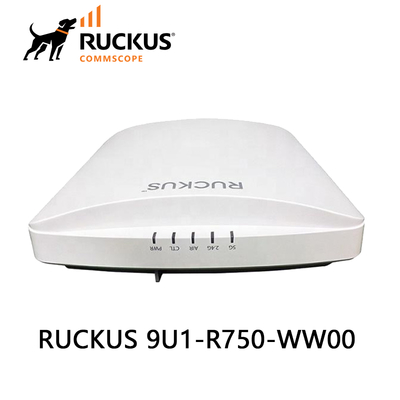

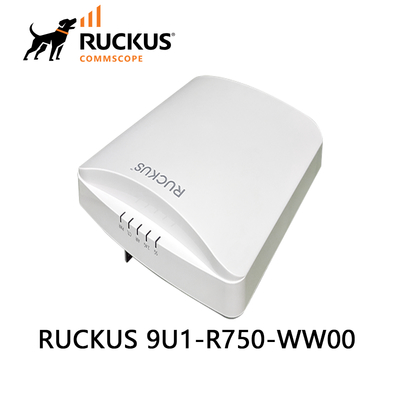

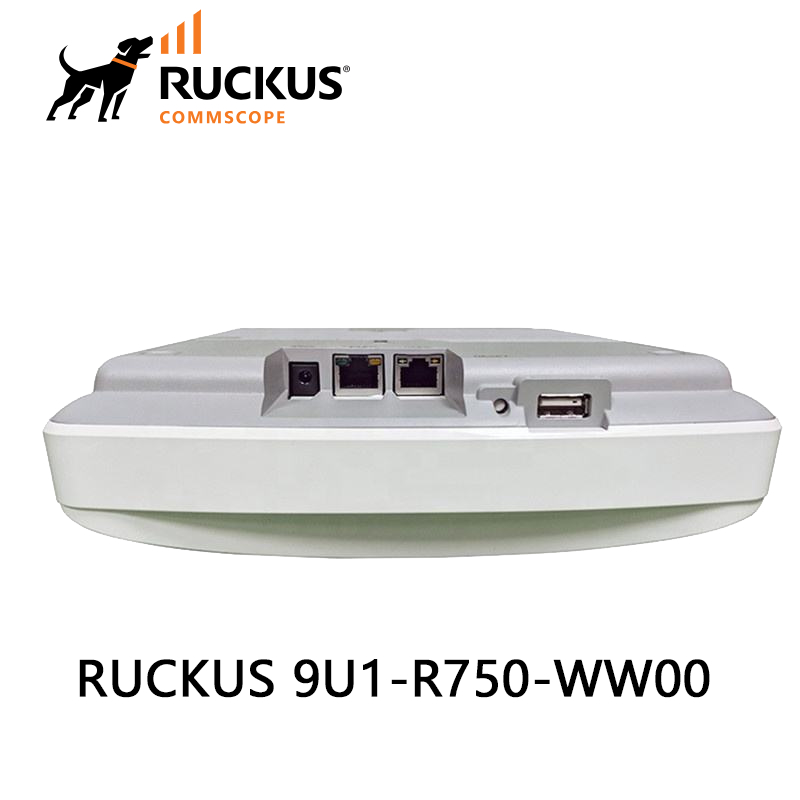

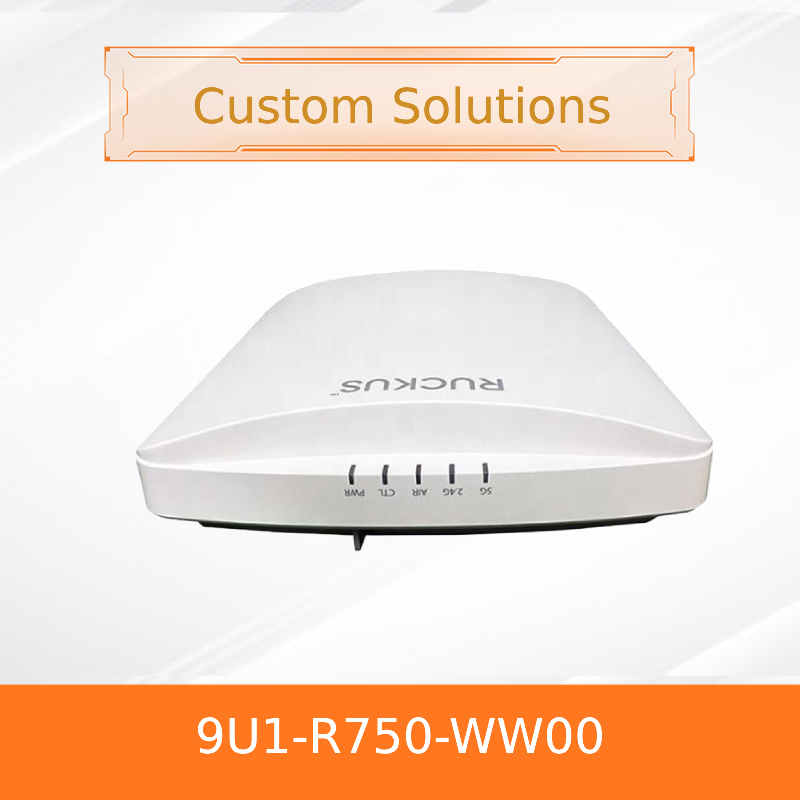

Ruckus R750 (9U1-R750-WW00) Indoor Wi-Fi 6 Access Point

1. Product Overview

The Ruckus R750 is a high-performance, dual-band, dual-concurrent 802.11ax (Wi-Fi 6) Access Point engineered specifically for challenging ultra-high-density indoor environments. This advanced Wireless solution bridges the gap from gigabit to multi-gigabit Wi-Fi, supporting over 1024 client connections simultaneously. It is an ideal Access Point for data-intensive applications like 4K video streaming and low-latency voice communications, all while providing a unified platform for Wi-Fi and non-Wi-Fi IoT technologies.

2. Key Characteristics

• High Client Density: Manages up to 1024 simultaneous client connections per AP.
• Multi-Gigabit Performance: Features a 2.5GbE port for backhaul, eliminating network bottlenecks.
• Converged IoT Ready: Built-in BLE and Zigbee radios, plus a USB 2.0 port for future wireless technology expansion.
• Advanced Antenna Technology: Patented BeamFlex+ adaptive antenna system with over 4,000 unique patterns per band.
• Enhanced Security: Supports the latest WPA3 security protocol and offers enhanced protection against attacks.

3. Core Technology

The R750 Access Point leverages the latest IEEE 802.11ax (Wi-Fi 6) standard, incorporating key technologies like OFDMA and MU-MIMO for efficient spectrum utilization and simultaneous multi-user data transmission. Its Ultra-High-Density Technology Suite includes proprietary innovations like Airtime Decongestion and Transient Client Management. The integrated IoT capabilities make it more than just a Wireless AP, serving as a hub for converged network deployments.

4. Working Principle

The R750 operates by dynamically managing radio frequency resources. Its BeamFlex+ adaptive antenna system intelligently selects the optimal antenna pattern from thousands of possibilities on a per-packet, per-device basis, directing signals toward clients instead of broadcasting omnidirectionally. This, combined with technologies like ChannelFly for intelligent channel selection and SmartCast for QoS, ensures reliable connectivity, maximizes throughput, and minimizes interference in crowded RF environments, making it an exceptional Wireless solution.

5. Application & Usage

This Access Point is designed for data-heavy, high-user-density indoor environments, including:

• Large conference and convention centers
• Auditoriums and lecture halls
• Transit hubs (airports, train stations)
• Enterprise offices and open-plan spaces
• Educational institutions and large classrooms

6. Specifications

7. Advantages & Selling Points

• Superior Density Handling: Outperforms previous generations and many competitors in client capacity and management in congested areas.
• Future-Proof Backhaul: The integrated 2.5GbE port ensures the wired connection is never the bottleneck for your Wireless network.
• Patented Adaptive Antennas: BeamFlex+ technology provides superior coverage and reliability compared to standard omni-directional antennas found in generic access points.
• Wireless Convergence: Built-in IoT and expansion capabilities eliminate the need for separate siloed networks, reducing complexity and cost.

8. Service & Support

We provide comprehensive support for this enterprise-grade Access Point. The product comes with a limited lifetime warranty. Our services include 24/7 customer consultation, expert technical support to assist with deployment and troubleshooting, and reliable supply chain management to ensure timely delivery. We guarantee the authenticity and quality of all our products.

9. Frequently Asked Questions

Q: What is the maximum number of clients this AP can support effectively?
A: The R750 is designed to manage associations for up to 1024 clients, making it ideal for ultra-dense deployment scenarios.

Q: Does the R750 support Power over Ethernet (PoE)?
A: Yes, it supports standard 802.3af/at/bt PoE. Using 802.3af PoE will disable the second radio chain and onboard IoT features for lower power operation.

Q: Can this Access Point be used for location tracking services?
A: Yes, with the integrated Ruckus SPoT location engine, it can provide advanced Wi-Fi locationing services.

10. Precautions

• Ensure your network switch and cabling support the required PoE standard (802.3bt recommended for full functionality).
• For optimal performance of this Wireless system, professional site planning is recommended to address specific environmental challenges.
• Compliance with local regulatory domains is required; ensure the correct regional model (e.g., -WW, -US) is ordered.
• Operating humidity should be non-condensing and under 95%.
