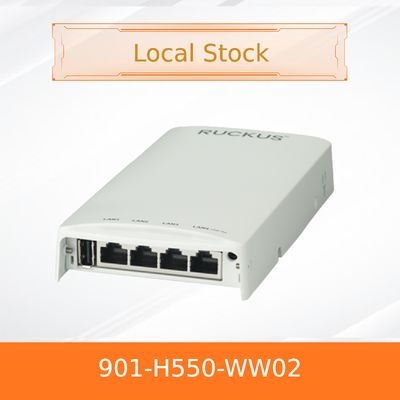

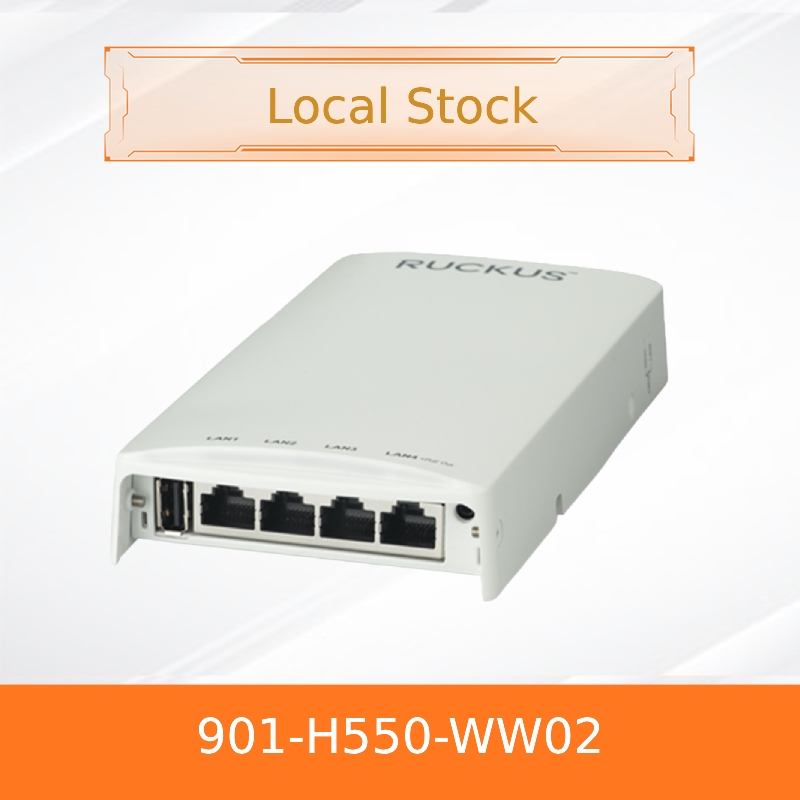

Ruckus 901-H550-Ww02 Wall-Mounted Wi-Fi 6 2X2: 2 Access Point
Product Details:
| Brand Name: | Ruckus |
| Certification: | ISO9001, RoHS, FCC, CE |
| Model Number: | 901-H550-WW02 |
| Document: | RUCKUS H550 Data Sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | Ruckus 901-H550-WW02 | WiFi Antenna Type: | Built-in |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 48V |
| Antenna Gain: | 1dBi | Color: | White |
| Weight: | 278g | Operating Temperature: | 0°c (32°f) - 40°c (104°f) |
| Power Supply: | Poe+ : 12.54W | Transport Package: | Carton |
| Specification: | 89.5 Mm*178.5 Mm*29.3 Mm | Trademark: | Ruckus |
| Origin: | China | ||
| Highlight: | Wi-Fi 6 Access Point,Ruckus 901-H550-Ww02 Access Point,Wall-Mounted Access Point |
||
Product Description
RUCKUS H550 Wall-Mounted Wi-Fi 6 Access Point with IoT and Switch
The RUCKUS H550 (901-H550-WW02) is a high-performance, wall-mounted Wi-Fi 6 access point designed for high-density environments such as hotels, apartments, and multi-dwelling units (MDUs). It combines advanced wireless technology with integrated IoT support and a built-in 4-port Gigabit Ethernet switch, delivering a converged networking solution that reduces cabling and simplifies deployments.
Key Features
- Wi-Fi 6 (802.11ax) with 1.8 Gbps aggregate throughput
- Integrated Bluetooth Low Energy (BLE) and Zigbee radios
- 4-port Gigabit Ethernet switch with PoE output
- Patented BeamFlex+ adaptive antenna technology
- Support for up to 512 clients per access point
Technology Overview
The H550 access point leverages Wi-Fi 6 standards including MU-MIMO, OFDMA, and 1024-QAM to improve efficiency in high-density environments. It features RUCKUS-exclusive technologies like BeamFlex+ for intelligent signal steering and ChannelFly for automated channel optimization.
How It Works
The access point uses dynamic antenna patterns to direct Wi-Fi signals toward connected devices on a per-packet basis, reducing interference and improving coverage. The built-in switch allows wired devices like IP phones, IPTVs, and IoT sensors to connect directly through the same wall unit, simplifying room-level network convergence.
Applications
Ideal for hospitality, student housing, healthcare guest rooms, and apartment complexes. Supports voice, video, data, and IoT services such as smart locks, environmental sensors, and staff alert systems over a single infrastructure.
Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Max PHY Rate | 1.8 Gbps (2.4 GHz: 574 Mbps, 5 GHz: 1.2 Gbps) |
| MIMO | 2x2:2 SU/MU-MIMO |
| Ethernet Ports | 1x GbE PoE In, 4x GbE (1x PoE Out) |
| IoT Support | BLE, Zigbee (concurrent) |
| USB Port | 1x USB 2.0 Type A |
| Power Options | 802.3af/at/bt, Passive PoE |
| Dimensions | 89.5 x 178.5 x 29.3 mm |
| Weight | 278g (without bracket) |
| Operating Temperature | 0°C to 40°C |
Advantages
- Consolidates Wi-Fi, IoT, and wired switching into one device
- Superior coverage and interference mitigation with BeamFlex+
- Future-ready with USB expansion for additional radio modules
- Flexible management via cloud, on-prem, or controller-less modes
- Reduces installation time and cabling costs
Service & Support
We offer lifetime warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation, integration guidance, and post-sales service to ensure seamless deployment.
FAQ
Q: How many wireless clients can the H550 support?
A: Up to 512 clients per access point, with support for 100+ per room.
Q: Does it support mesh networking?
A: Yes, it features SmartMesh technology for self-healing wireless meshing.
Q: Can I use it without a controller?
A: Yes, it supports standalone, cloud, or controller-based management.
Q: What IoT protocols are supported?
A: BLE and Zigbee are built-in; additional protocols via optional USB modules.
Precautions
- Ensure adequate PoE power budget for all connected devices.
- Verify wall box compatibility before installation.
- Use only approved power adapters or injectors.
- Complies with EN 60601-1-2 for medical environments and railway EMC standards.
