High Performance Network 901-R350-Ww02 Brand New Ruckus WiFi 6 Access Point 901-R350-Ww02
Product Details:
| Brand Name: | Ruckus |
| Certification: | ISO9001, RoHS, FCC, CE |
| Model Number: | 901-R350-WW02 |
| Document: | ds-ruckus-r350.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | 901-R350-WW02 | WiFi Antenna Type: | Built-in |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 48V |
| Antenna Gain: | 23dBi | Color: | Black |
| Weight: | 1.36kg | Use: | Wireless Access Point |
| Condition: | New And Original | Warranty: | 12 Months |
| Selling Units: | Single Item | Transport Package: | Carton |
| Specification: | 23.5 Cm* 20.6 Cm* 6.2 Cm | Trademark: | Ruckus |
| Highlight: | Ruckus WiFi 6 Access Point,High Performance WiFi 6 Access Point |
||
Product Description

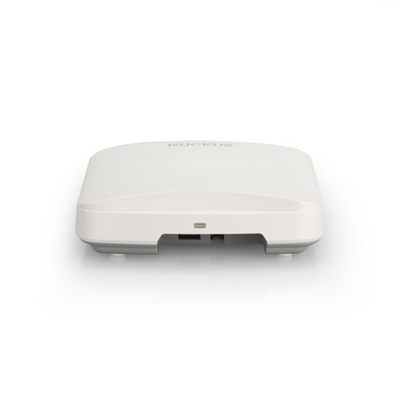

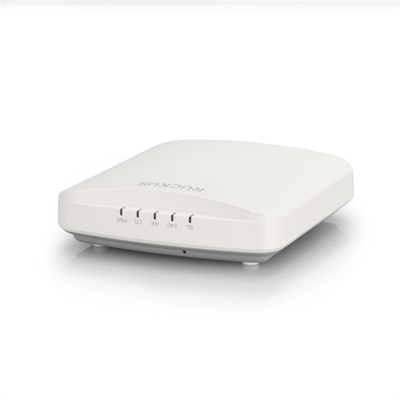

RUCKUS R350 Wi-Fi 6 Access Point - Enterprise-Grade Wireless for Demanding Environments
Product Overview
The RUCKUS R350 (model 901-R350-WW02) represents a significant advancement in enterprise Wireless technology, delivering Wi-Fi 6 (802.11ax) performance in a compact, affordable form factor. This indoor Access Point combines cutting-edge technology with patented RUCKUS innovations to provide exceptional coverage, reduced interference, and superior user experiences across small to medium-sized business environments.
Key Features
- Next-generation Wi-Fi 6 (802.11ax) technology for enhanced efficiency
- BeamFlex+ adaptive antenna system with up to 64 pattern combinations
- IoT readiness with optional USB module for Zigbee and BLE support
- SmartMesh technology for self-forming, self-healing wireless networks
- Support for up to 256 simultaneous clients and 16 SSIDs
- Plenum-rated for installation in air-handling spaces
Advanced Technologies
The R350 incorporates multiple patented technologies that distinguish it from conventional wireless solutions:
- BeamFlex+ technology dynamically optimizes antenna patterns for each connected device
- ChannelFly automatically selects the least congested channels for optimal performance
- OFDMA and MU-MIMO support for efficient multi-user connectivity
- WPA3 security protocol for enhanced network protection
- SmartMesh enables flexible deployment without extensive cabling
Operational Methodology
This advanced Wireless system operates by continuously analyzing the RF environment and client locations. The BeamFlex+ technology creates customized antenna patterns for each device connection, directing signal energy precisely where needed rather than broadcasting uniformly in all directions. This targeted approach significantly reduces interference while extending effective range. Simultaneously, ChannelFly technology scans the radio spectrum to identify and migrate to less congested channels, maintaining optimal throughput even in crowded wireless environments.
Ideal Applications
The R350 Access Point is specifically engineered for:
- Small and medium business offices requiring reliable connectivity
- Retail environments and hospitality venues
- Educational institutions and healthcare facilities
- Branch offices and multi-tenant buildings
- Public hotspot deployments requiring high-density support
Technical Specifications
| Parameter | Specification |
|---|---|
| Wireless Standards | 802.11ax, 802.11ac/n/g/a/b |
| Frequency Bands | Concurrent 2.4 GHz & 5 GHz |
| Spatial Streams | 2x2:2 (2.4 GHz), 2x2:2 (5 GHz) |
| Maximum Data Rate | 1.774 Gbps |
| Ethernet Interface | 1 x 1GbE with PoE support |
| USB Connectivity | 1 x USB 2.0 (IoT module support) |
| Power Consumption | Max 12.62W (PoE) |

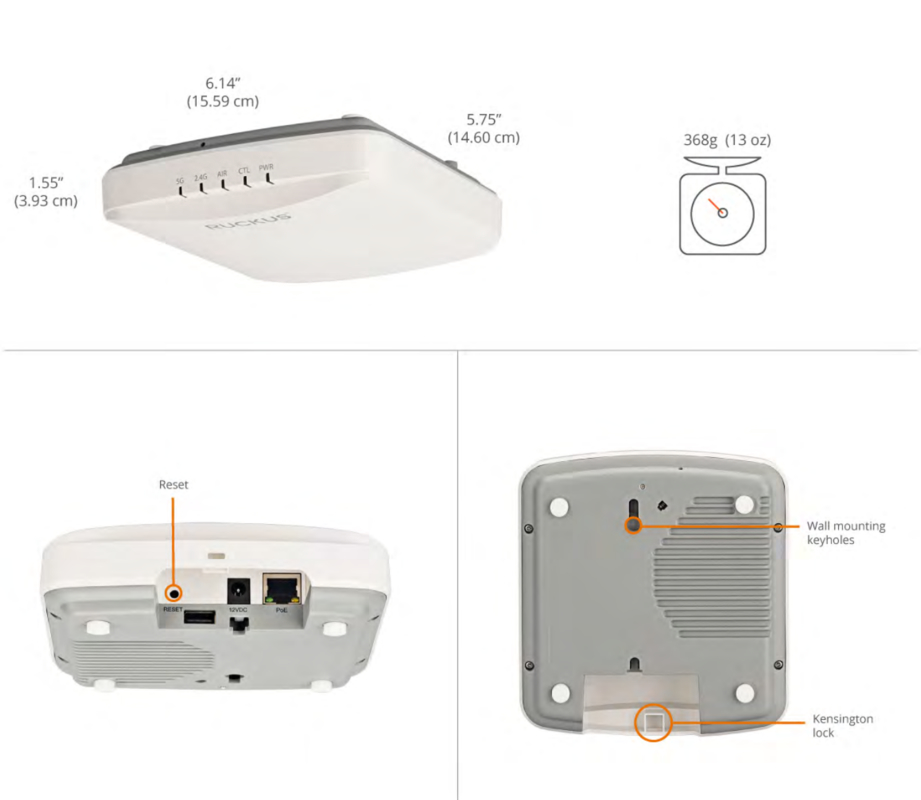

| Dimensions | 146 x 155.9 x 39.3 mm |
| Weight | 368 grams |
Competitive Advantages
- Superior coverage and performance through adaptive antenna technology
- Future-proof design with Wi-Fi 6 and IoT expansion capabilities
- Flexible deployment options with mesh networking support
- Cost-effective operation using standard PoE and existing cabling
- Comprehensive management options including cloud, on-premises, and controller-less
Service & Support
All RUCKUS products include limited lifetime warranty coverage. We provide comprehensive technical support, rapid order processing, and flexible configuration services. Our team offers expert guidance for deployment planning and ongoing optimization to ensure maximum network performance.
Frequently Asked Questions
Q: What makes this Access Point suitable for high-density environments?
A: The R350 supports Wi-Fi 6 features like OFDMA and MU-MIMO, which efficiently manage multiple simultaneous connections with reduced latency.
Q: Can the R350 be mounted in ceiling plenum spaces?
A: Yes, this Wireless AP is plenum-rated for safe installation in air-handling spaces per UL 2043 standards.
Q: What controllers support the R350 Access Point?
A: It is compatible with SmartZone, ZoneDirector, Unleashed, and cloud management platforms, or can operate in standalone mode.
Q: Does this model support IoT devices?
A: Yes, with an optional USB module (sold separately), the R350 can support BLE and Zigbee IoT protocols.
Installation Considerations
- Ensure adequate PoE power budget (802.3at recommended)
- Maintain operating temperature between 0°C to 40°C (32°F to 104°F)
- Verify regional regulatory compliance for channel selection
- Use compatible mounting accessories for secure installation
