Extreme Wireless Wing Ap-7612-680b30-Wr (37102) Indoor Wall Plate External Access Point
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP-7612-680B30-WR(37102) |
| Document: | AP7612-DS.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | AP-7612-680B30-WR(37102) | Transmission Rate: | >200Mbps |
|---|---|---|---|
| Antenna Gain: | 23dBi | Certification: | ISO9001, RoHS, FCC, CE |
| WiFi Antenna Type: | External | Voltage: | 5V |
| Color: | White | Security Features: | AES-Ccmp |
| Highlight: | 37102 Wireless Wing Ap-7612-680b30-Wr,Extreme Wireless Wing Ap-7612-680b30-Wr,Indoor Wall Plate External Access Point |
||
Product Description

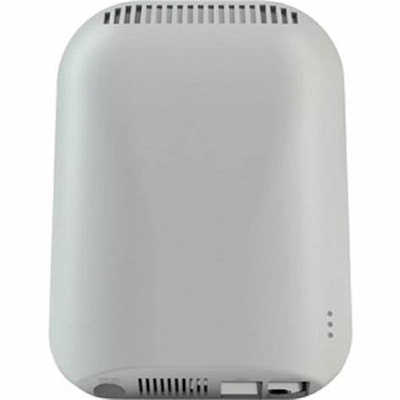

ExtremeWireless™ WiNG AP7612 Wall Plate Access Point
The ExtremeWireless WiNG AP7612 is an enterprise-grade, wall plate-mounted Wireless Access Point designed for high-density environments such as hotels, hospitals, and student housing. It supports 802.11ac Wave 2, MU-MIMO, integrated BLE, and PoE-out for connected devices.
Key Selling Points
- One Access Point per room for superior connectivity and user experience
- MU-MIMO technology for multi-user concurrent streaming
- Integrated BLE for location-based services and push notifications
- PoE-out port to power in-room devices like phones or IoT sensors
- Quick-mount design for non-disruptive installation during room service
Characteristics
- Dual-band 2.4 GHz and 5 GHz radios with 2x2 MIMO
- Integrated Gigabit Ethernet with PoE input and output
- Support for up to 25 devices in virtual controller mode
- Wall plate form factor with minimal aesthetic intrusion
- Cloud-ready for future ExtremeCloud™ integration
Technology
The AP7612 leverages 802.11ac Wave 2 technology with MU-MIMO, beamforming, and high-density modulation schemes (256-QAM). It also supports Bluetooth Low Energy (BLE) for proximity-based services and integrates a full suite of security features including WPA2, IPSec, and captive portal.
Working Principle
The Access Point connects via Ethernet to the network backbone, receiving power via PoE. It establishes dual-frequency Wi-Fi networks and a BLE beacon. The integrated radios manage client devices using MU-MIMO to serve multiple users simultaneously without degradation.
Applications
Ideal for:
- Hospitality guest rooms
- Healthcare patient rooms
- Student dormitories
- Senior living facilities
- Enterprise office suites
Specification Table
| Feature | Specification |
|---|---|
| Model | AP-7612-680B30-WR |
| Wi-Fi Standards | 802.11a/b/g/n/ac Wave 2 |
| MIMO | 2x2:2 MU-MIMO |
| Max Data Rate | 866.7 Mbps (5 GHz), 400 Mbps (2.4 GHz) |

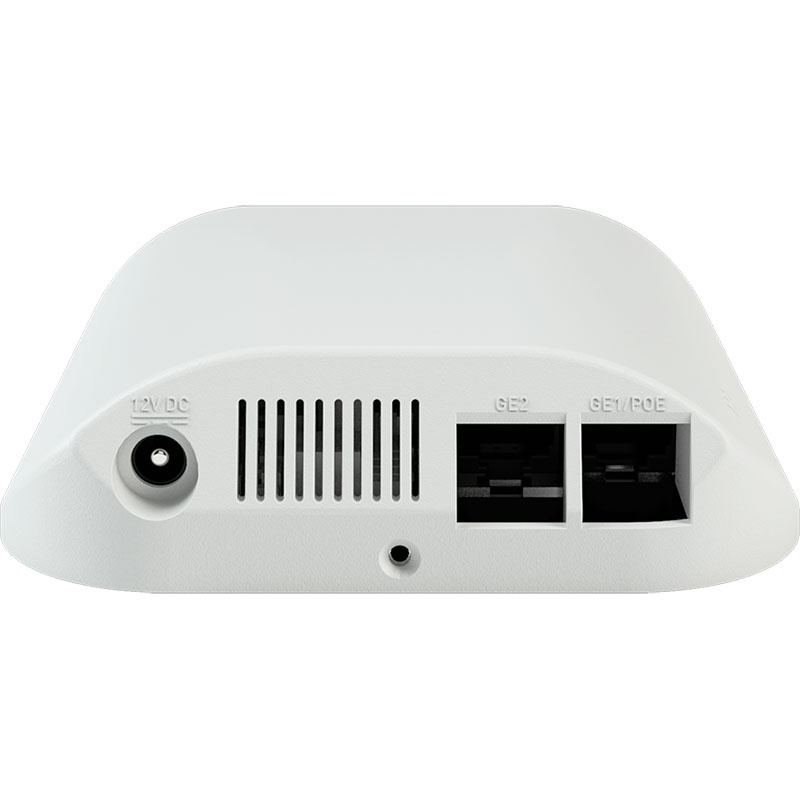

| Ethernet Ports | 2x Gigabit (PoE-in + PoE-out) |
| Bluetooth | BLE 4.2 |
| Power | 802.3af/at PoE or 12VDC adapter |
| Mounting | Wall plate bracket included |
| Operating Temperature | 0°C to 40°C |
Advantages
- Eliminates costly site surveys and guest disruption during installation
- Superior performance per room compared to corridor-mounted APs
- Future-proof with cloud management and integrated analytics
- Reduces total cost of ownership with easy mounting and PoE daisy-chaining
Service & Support
We offer 24/7 customer consultation and technical support. All hardware comes with a standard warranty. Professional deployment and integration services available upon request.
Frequently Asked Questions
Q: Can the AP7612 be mounted on any wall box?
A: Yes, it is designed to cover standard telecommunications junction boxes.
Q: Does it support mesh networking?
A: Mesh support is planned for a future WiNG software release.
Q: Is the BLE radio configurable?
A: Yes, it supports beaconing and push notification services.
Precautions
- Ensure input power meets 802.3at standard if using PoE-out feature
- Do not block vents or operate outside specified temperature ranges
- Verify local regulatory requirements for channel availability
