Extreme Wireless Ap460c-Wr Wi-Fi 6 (802.11ax) Tri-Radio Outdoor New Packaging 2.4 GHz 5 GHz
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP460C-WR |
| Document: | ap460-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | AP460C-WR | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 5V |
| Antenna Gain: | 23dBi | Color: | White |
| Certification: | ISO9001, RoHS, FCC, CE | Security Features: | AES-Ccmp |
| Highlight: | Outdoor Ap460c-Wr Access Points,Wi-Fi 6 Ap460c-Wr Access Points,Tri-Radio Ap460c-Wr Access Points |
||
Product Description

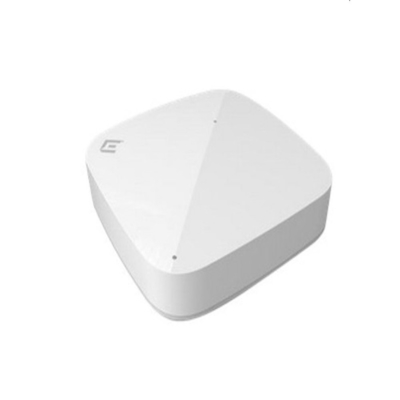

ExtremeWireless™ AP460C-WR: Wi-Fi 6 Tri-Radio Outdoor Access Point
1. Product Overview
The ExtremeWireless AP460C-WR is a high-performance, tri-radio outdoor Access Point designed for demanding environments. Supporting the latest Wireless Wi-Fi 6 (802.11ax) standard, it delivers robust connectivity, advanced security, and seamless integration for enterprise-grade outdoor networks. This model is built to operate in extreme weather conditions and high-density user scenarios, making it ideal for industrial, municipal, and campus deployments.
2. Key Features
- Tri-radio design: 5 GHz 4x4:4, 2.4 GHz 2x2:2, and dedicated dual-band sensor
- Wi-Fi 6 (802.11ax) with aggregate data rates up to 4.8 Gbps
- IP67-rated enclosure for harsh outdoor environments
- Integrated GPS and Bluetooth Low Energy (BLE)
- WPA3 security support and continuous RF monitoring
- Supports 802.3at PoE+ for flexible power options
3. Technology
The AP460C-WR leverages Wi-Fi 6 technology with OFDMA, MU-MIMO, and 1024-QAM modulation for enhanced efficiency and throughput. It includes a dedicated sensor radio for full-time rogue device detection and supports dual-band OFDMA for improved performance in congested Wireless environments.
4. Working Principle
The Access Point uses three independent radios to manage client traffic, background scanning, and IoT communications simultaneously. The main radios handle high-speed data transmission, while the sensor radio continuously monitors the RF environment for threats and optimizes channel selection using AI-driven algorithms.
5. Applications
Ideal for outdoor and high-density environments such as:
- University campuses and stadiums
- Industrial parks and manufacturing sites
- Public venues and smart city infrastructure
- Transportation hubs and logistics centers
6. Specifications
| Attribute | Value |
|---|---|
| Model | AP460C-WR |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Max Data Rate | 4.8 Gbps (5 GHz), 574 Mbps (2.4 GHz) |
| Ethernet Ports | 1x 2.5Gbps PoE+, 1x 1Gbps |
| Power Consumption | Max 19.78W (802.3at) |
| Operating Temperature | -40°C to +60°C |
| Dimensions | 260mm x 192mm x 65mm |
| Weight | 1.7 kg (AP460i) |
| Antenna Type | Internal omnidirectional (AP460i) |
7. Advantages
- Full-time security sensor with no performance impact
- Superior outdoor durability with IP67 and wind resistance
- Future-proof with Wi-Fi 6 and WPA3 support
- Integrated BLE and GPS for location-based services
- Flexible cloud or on-premises management via ExtremeCloud™ IQ
8. Service & Support
We offer 24/7 technical support, a 1-year warranty, and global shipping. Our team provides pre-sales consultation, post-sales troubleshooting, and integration services to ensure seamless deployment of your Wireless network infrastructure.
9. Frequently Asked Questions

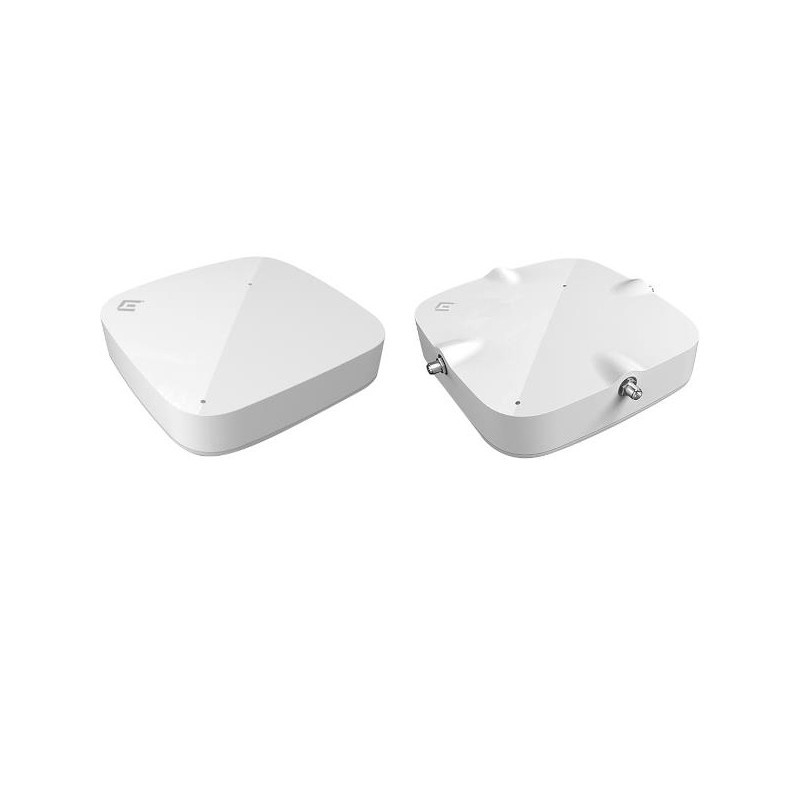

Q: What is the difference between AP460i and AP460e?
A: The AP460i has internal antennas, while the AP460e supports external antennas for customizable coverage.
Q: Does it support Power over Ethernet?
A: Yes, it supports both 802.3at (PoE+) and 802.3af.
Q: Can it be used in extreme cold?
A: Yes, it operates from -40°C to +60°C.
Q: Is WPA3 supported?
A: Yes, WPA3 is fully supported for enhanced security.
Q: What management options are available?
A: It can be managed via ExtremeCloud IQ (cloud) or on-premises controllers.
10. Precautions
- Ensure proper grounding and lightning protection for outdoor installation.
- Use only approved PoE injectors or switches.
- Verify regulatory compliance for your region (FCC, IC, CE, etc.).
- Avoid obstructing antenna paths for optimal Wireless performance.
- Regular firmware updates are recommended for security and performance.
