Extreme Wireless Access Points Ap460I-Wr Wireless Access Point for Fast Internet Speeds
Product Details:
| Brand Name: | Extreme |
| Model Number: | Ap460I-Wr |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | Ap460I-Wr | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 12V |
| Antenna Gain: | 5 DBi | Certification: | ISO9001, RoHS, FCC, CE |
| Security Features: | AES-Ccmp | Specification: | 210 Mm X 21 0mm X 48 Mm |
| Highlight: | Fast Internet Speeds Access Points,Wireless Access Point Ap460I-Wr |
||
Product Description

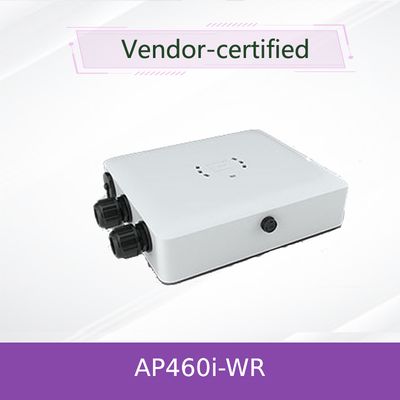

ExtremeWireless™ AP460i-WR | Wi-Fi 6 Tri-Radio Outdoor Access Point
1. Product Overview
The ExtremeWireless™ AP460i-WR is a high-performance, tri-radio outdoor Access Point designed for demanding environments. It supports Wi-Fi 6 (802.11ax) across both 2.4 GHz and 5 GHz bands, delivering aggregate data rates up to 4.8 Gbps. Built to IP67 standards, it operates in extreme temperatures (-40°C to +60°C) and includes integrated GPS and BLE for advanced location services. Ideal for high-density deployments, this Wireless solution offers full-time security scanning and robust RF management.
2. Key Features
- Tri-radio design: 5 GHz 4x4:4, 2.4 GHz 2x2:2, and dedicated dual-band sensor
- Wi-Fi 6 (802.11ax) with OFDMA and MU-MIMO
- Integrated GPS and Bluetooth Low Energy (BLE)
- IP67-rated for harsh outdoor environments
- Supports WPA3 and stateful L2-L7 firewall
- Cloud or on-premises management via ExtremeCloud™ IQ or ExtremeControl
3. Technology
The AP460i-WR leverages Wi-Fi 6 technology with OFDMA, 1024-QAM modulation, and dual-band concurrent operation. It includes a dedicated sensor radio for continuous RF monitoring and threat detection. Cellular Coexistence Filter (CCF) reduces interference from nearby cellular networks.
4. Working Principle
The Access Point uses three independent radios: one for 5 GHz Wi-Fi 6, one for 2.4 GHz Wi-Fi 6, and a third dedicated sensor radio for full-time scanning and security monitoring. It employs SmartRF technology for automated channel management, band steering, and load balancing.
5. Applications
- Outdoor stadiums and public venues
- Industrial campuses and logistics centers
- Smart city and municipal Wi-Fi
- Transportation hubs and ports
- Education and healthcare outdoor coverage
6. Specifications
| Attribute | Value |
|---|---|
| Model | AP460i-WR |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Max Data Rate | 4.8 Gbps (5 GHz), 574 Mbps (2.4 GHz) |
| Ethernet Ports | 1x 2.5Gbps PoE+, 1x 1Gbps |
| Power Consumption | Typ. 15.23W, Max 19.78W |
| Operating Temperature | -40°C to +60°C |
| Ingress Protection | IP67 |
| Antennas | Integrated omnidirectional (2.4 GHz, 5 GHz, BLE) |
| Mounting | Pole, wall, vehicle bracket |
7. Advantages
- Full-time security sensor with no performance impact
- Superior outdoor durability with IP67 and wide temperature range
- Future-proof Wi-Fi 6 performance with high-density support
- Integrated location services via GPS and BLE
- Flexible management options: cloud or on-premises
8. Service & Support
We offer 1-year warranty, 24/7 technical support, and global shipping. Our team provides pre-sales consultation and post-sales integration services. Bulk order discounts available.
9. FAQ
Q: Does the AP460i-WR support Power over Ethernet?
A: Yes, it supports both 802.3at (PoE+) and 802.3af.
Q: Can it be used in high-wind environments?
A: Yes, it is rated for wind gusts up to 165 mph.
Q: Is the sensor radio always active?
A: Yes, the dedicated sensor provides continuous RF monitoring.
Q: What management platforms are supported?
A: ExtremeCloud IQ (cloud), ExtremeControl Appliance, VX, or NX controllers (on-prem).
10. Precautions
- Ensure proper grounding and lightning protection for outdoor installation.
- Use only compatible Extreme Networks antennas for external models.
- Verify PoE switch compatibility for maximum power delivery.
- Avoid obstructing antenna patterns for optimal Wireless performance.
