Versatile Extreme Ap360e-Wr Wireless Access Point with Extended Range
Product Details:
| Brand Name: | Extreme |
| Model Number: | AP360e-WR |
| Document: | ap460-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | AP360e-WR | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 12V |
| Antenna Gain: | 4.8 DBi | Certification: | ISO9001, RoHS, FCC, CE |
| Selling Units: | Single Item | Specification: | 260mm X 192mm X 65mm |
| Highlight: | Extended Range Wireless Access Point,Ap360e-Wr Wireless Access Point,Extended Range Access Point |
||
Product Description

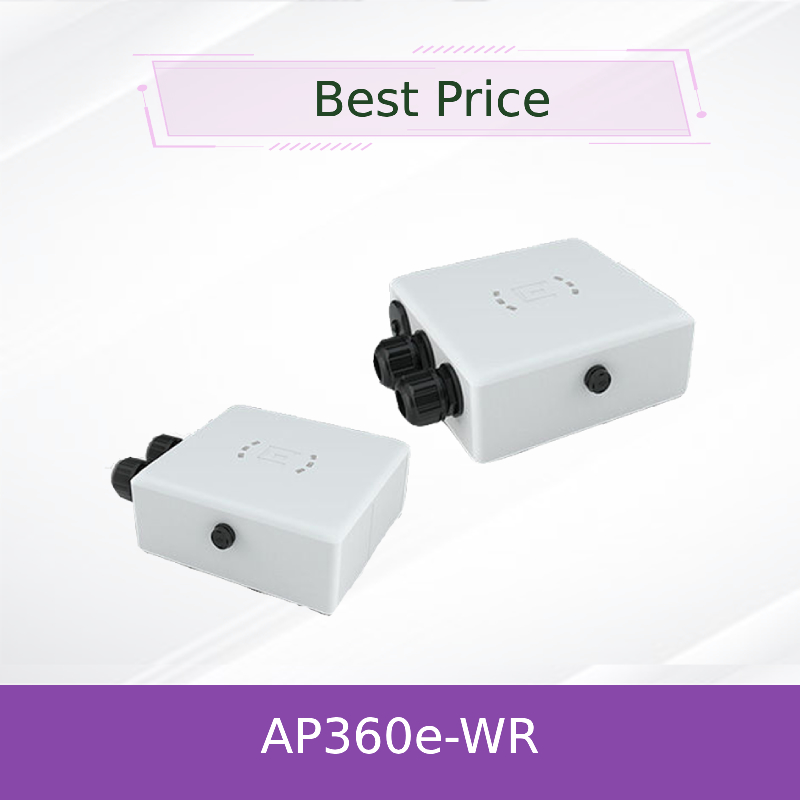

ExtremeWireless™ AP360e-WR Outdoor Access Point
1. Product Overview
The ExtremeWireless™ AP360e-WR is a high-performance, enterprise-grade Wireless Access Point designed for demanding outdoor environments. Supporting Wi-Fi 6 (802.11ax) standards, this Access Point delivers superior connectivity, enhanced capacity, and robust security for modern networks. It features external antenna connectors for flexible deployment and is built to operate reliably in extreme weather conditions, making it ideal for industrial, municipal, and campus-wide coverage.
2. Key Characteristics
- Wi-Fi 6 (802.11ax) dual-band 2x2:2 radio configuration
- Software-selectable radio (SSR) modes including Dual 5 GHz operation
- IP67-rated enclosure for harsh outdoor conditions
- Integrated Bluetooth Low Energy (BLE) and GPS for location services
- Supports WPA3 security and stateful L2-L7 firewall
- Managed via ExtremeCloud™ IQ or on-premises controllers
3. Technology
The AP360e-WR leverages Wi-Fi 6 technologies including OFDMA, MU-MIMO, and 1024-QAM modulation to increase network efficiency and throughput. It also supports dual 5 GHz operation via SSR, allowing simultaneous high-speed connections on two 5 GHz channels. Bluetooth 5.0 and IEEE 802.15.4 are integrated for IoT connectivity and location-based services.
4. Working Principle
The Access Point uses multiple-input multiple-output (MIMO) radio technology to transmit and receive data simultaneously across two spatial streams. It employs beamforming to focus signal strength toward client devices, improving range and reliability. The device can be configured in various radio modes via software, enabling flexible deployment without hardware changes.
5. Applications
Ideal for outdoor and high-density environments such as:
- University and corporate campuses
- Public venues and stadiums
- Industrial parks and manufacturing sites
- Municipal Wi-Fi and smart city deployments
- Transportation hubs and logistics centers
6. Specifications
| Attribute | Value |
|---|---|
| Model | AP360e-WR |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Radio Type | 2x2:2 Dual-Band (2.4 GHz & 5 GHz) |
| Max Data Rate | 1.2 Gbps (5 GHz), 574 Mbps (2.4 GHz) |
| Ethernet Ports | 2 x 10/100/1000 Mbps (PoE input) |
| Power Supply | 802.3af PoE (802.3at required for USB) |
| Operating Temperature | -40°C to 60°C |
| Antenna Type | External (5 x N-type connectors) |
| Bluetooth | BLE 5.0 and IEEE 802.15.4 |
| GPS | Integrated (2.5–3m accuracy) |
7. Advantages
- Dual 5 GHz mode increases capacity without additional hardware
- IP67 rating ensures durability in extreme weather
- Advanced security with WPA3 and deep packet inspection
- Flexible deployment with external antennas and multiple mount options
- Future-proof with Wi-Fi 6 and cloud management readiness
8. Service & Support
We offer 24/7 technical support, worldwide shipping, and a 1-year manufacturer warranty. Our team provides pre-sales consultation and post-sales integration support to ensure seamless deployment.
9. FAQ
Q: Can the AP360e-WR operate in dual 5 GHz mode simultaneously?
A: Yes, via software-selectable radio (SSR) technology.
Q: What power source is required?
A: 802.3af PoE is sufficient for basic operation; 802.3at is needed if using the USB port.
Q: Is the device suitable for high-density environments?
A: Yes, it is designed to maintain performance in dense user scenarios.
Q: Does it support cloud management?
A: Yes, via ExtremeCloud IQ (future update) or on-premises controllers.
10. Precautions
- Ensure proper grounding and lightning protection for outdoor installation.
- Use only compatible Extreme Networks antennas and accessories.
- Verify local regulatory compliance for radio frequency usage.
- Do not block ventilation openings or expose to condensing humidity.
