High-Speed 400G OSFP DR4 Transceiver Module for Data Centers Large Quantity of Spot Goods
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 400G OSFP DR4 |
| Document: | 400G OSFP DR4.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-OSFP04DR4-12C |
|---|---|---|---|
| Performance: | 400G OSFP DR4 | Speed: | 400G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
Product Description

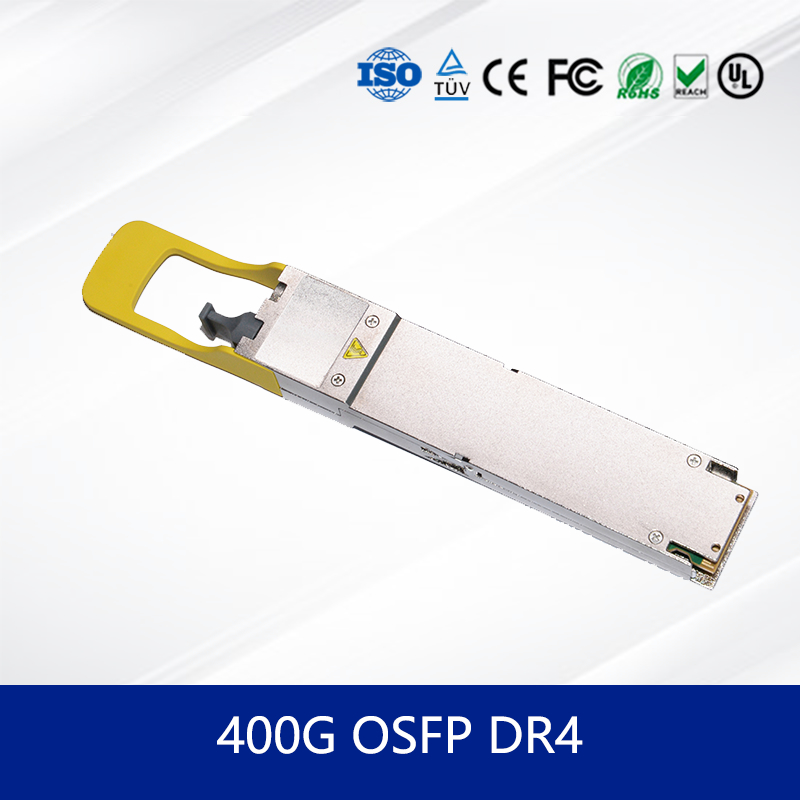

400G OSFP DR4 Optical Transceiver — CC-OSFP04DR4-12C
Deliver high-performance data center connectivity with our optical transceiver module, designed for 400 Gigabit Ethernet applications. This optical module supports up to 500m reach on single-mode fiber, features an MPO-12 APC connector, and complies with CMIS 5.0 for advanced management. Ideal for high-density networking environments requiring reliable, high-speed transmission.
400G OSFP DR4 Key Features
- Hot-pluggable OSFP form factor with MPO-12 APC connector
- Supports 400GBASE-DR4 and breakout configurations (4x100G)
- Reach up to 500m on single-mode fiber
- Compliant with CMIS Rev 5.0 for comprehensive management
- Low power consumption with maximum dissipation of 9W
- Digital diagnostic monitoring via I2C interface
- Class 1 laser safety compliant
400G OSFP DR4 Technology and Standards
This optical transceiver module adheres to IEEE 802.3-2022 (400GBASE-DR4), IEEE 802.3ck-2022 (400GAUI-4), and OSFP MSA Specification Rev 5.1. It utilizes PAM4 signaling at 53.125 GBaud per lane and integrates advanced diagnostics for real-time performance monitoring.
400G OSFP DR4 Working Principle
The optical module converts electrical signals into optical signals using EML technology for transmission over single-mode fiber. The receiver section employs PIN photodiodes for high-sensitivity detection. Internal CDR circuits ensure signal integrity and low jitter, supporting high-speed data transmission.
Applications
- Data center interconnects and backbone networks
- High-performance computing and cloud infrastructure
- 400G Ethernet switches and routers
- Telecom and service provider networks
400G OSFP DR4 Specifications
| Parameter | Value |
|---|---|
| Data Rate | 400G (4x100G) |
| Wavelength | 1310nm |
| Max Reach | 500m |
| Connector | MPO-12 APC |
| Power Consumption | < 9W |
| Operating Temperature | 0°C to 70°C |
Ordering Information
| Model | Description |
|---|---|
| CC-OSFP04DR4-12C | 400G DR4, 500m SMF, 0°C to 70°C |
Advantages
- High bandwidth density with 400G capacity
- Robust construction with MPO-12 connector for reliable connectivity
- Advanced digital diagnostics for real-time monitoring and troubleshooting
- Compliance with industry standards ensures interoperability
- Low power design reduces operational costs
Service and Support
We offer a 5-year warranty, global technical support, and flexible supply options. Our team provides 24/7 consultation and integration assistance to ensure smooth deployment.
400G OSFP DR4 Frequently Asked Questions
Q: What is the maximum reach of this transceiver?
A: It supports up to 500m on single-mode fiber.
Q: Does it support digital diagnostics?
A: Yes, it provides comprehensive digital diagnostic monitoring via the I2C interface.
Q: Is it compatible with existing infrastructure?
A: Yes, it is designed to be compatible with standard OSFP ports and single-mode fiber networks.
Precautions
- Avoid bending the fiber beyond the minimum bend radius.
- Ensure proper cleaning of MPO connectors to prevent contamination.
- Operate within the specified temperature and humidity ranges.
- Follow electrostatic discharge (ESD) protection procedures during handling.
