Advanced 800g Osfp Vr8 Transceiver for High-Performance Networks
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 800G OSFP VR8 |
| Document: | CC-OSFP08VR8-12D_800G OSFP ...27.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Name: | Optical Transceiver Module | Model NO.: | CC-OSFP08VR8-12D |
|---|---|---|---|
| Performance: | 800G OSFP VR8 | Speed: | 800G |
| Specification: | 400*265*100mm | Hot-pluggable: | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Condition: | New |
| Highlight: | Osfp Vr8 Transceiver 800g,800g Osfp Vr8 Transceiver |
||
Product Description

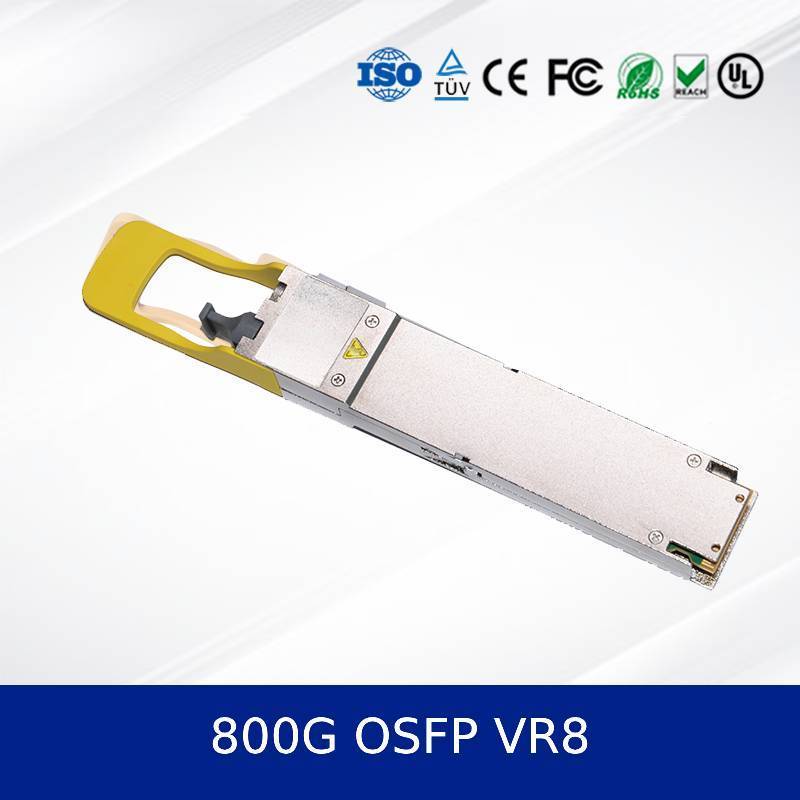

800G OSFP VR8 Optical Transceiver — CC-OSFP08VR8-12D
Experience high-speed data transmission with our 800g osfp transceiver, designed for 800 Gigabit Ethernet and InfiniBand NDR applications. This optical transceiver module delivers up to 50m reach on OM4 multimode fiber, featuring dual MPO-12 APC connectors, CMIS 5.0 management, and low power consumption. Ideal for data centers and high-performance computing environments.
Key Features
- Hot-pluggable OSFP form factor with dual MPO-12 APC connectors
- Supports 800G VR8 and 8x100GbE breakout configurations
- Reach up to 30m on OM3 and 50m on OM4 multimode fiber
- Compliant with CMIS Rev 5.0 for advanced management
- Low power consumption with maximum dissipation of 17W
- Digital diagnostic monitoring via I2C interface
Technology and Standards
This optical module adheres to OSFP MSA, IEEE P802.3db/D3.0, and IEEE P802.3ck standards. It utilizes PAM4 signaling at 53.125 GBaud per lane and integrates advanced diagnostics for real-time performance monitoring.
Working Principle
The 800g osfp transceiver converts electrical signals into optical signals using VCSEL technology for transmission over multimode fiber. The receiver section employs PIN photodiodes for high-sensitivity detection. Internal CDR circuits ensure signal integrity and low jitter.
Applications
- Data center interconnects and backbone networks
- High-performance computing clusters
- InfiniBand NDR applications
- 800G Ethernet switches and routers
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 800G (8x100G) |
| Wavelength | 850nm |
| Max Reach (OM4) | 50m |
| Connector | Dual MPO-12 APC |
| Power Consumption | < 17W |
| Operating Temperature | 0°C to 70°C |
Ordering Information
| Model | Description |
|---|---|
| CC-OSFP08VR8-12D | 800G VR8, 50m OM4, 0°C to 70°C |
Advantages
- Enhanced bandwidth density with 800G capacity
- Robust construction with dual MPO-12 connectors for reliable connectivity
- Advanced digital diagnostics for real-time monitoring and troubleshooting
- Compliance with industry standards ensures interoperability
Service and Support
We offer a 5-year warranty, global technical support, and flexible supply options. Our team provides 24/7 consultation and integration assistance to ensure smooth deployment.
Frequently Asked Questions
Q: What is the maximum reach of this transceiver?
A: It supports up to 30m on OM3 and 50m on OM4 multimode fiber.
Q: Does it support digital diagnostics?
A: Yes, it provides comprehensive digital diagnostic monitoring via the I2C interface.
Q: Is it compatible with existing infrastructure?
A: Yes, it is designed to be compatible with standard OSFP ports and multimode fiber networks.
Precautions
- Avoid bending the fiber beyond the minimum bend radius.
- Ensure proper cleaning of MPO connectors to prevent contamination.
- Operate within the specified temperature and humidity ranges.
Company Introduction

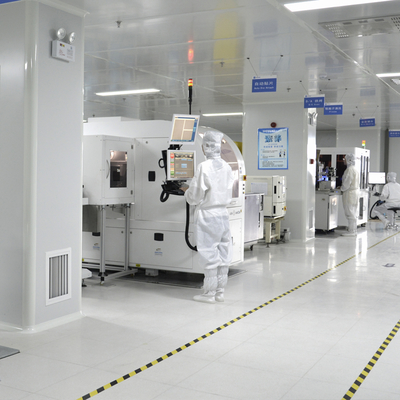

With over a decade of industry experience, we operate a large manufacturing facility and maintain a strong technical team. We represent leading brands including Mellanox, Ruckus, Aruba, and Extreme. Our product range includes original new network switches, adapters, wireless access points, controllers, and cables. We hold over 10 million units in inventory, ensuring ample supply and competitive pricing. Our commitment to quality and service has earned us a reputable standing in the global market.
