Reliable 400g Osfp Sr4 Transceiver for Ultra-Fast Networking
Product Details:
Place of Origin: | China |
Brand Name: | own |
Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Face to face/bulk price |
Packaging Details: | outer box |
Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
Payment Terms: | T/T |
Supply Ability: | Supply by project/batch |
Detail Information |
|||
Model NO.: | CC-OSFP04SR4-12D | Support Network: | Ethernet |
---|---|---|---|
Information Content: | Data | Condition: | New |
Speed: | 400g | Mode: | Sr4 |
Transport Package: | Packing | Specification: | 400*265*100mm |
Trademark: | Optmodule | Origin: | China |
Production Capacity: | 50000 | Hot-pluggable): | Yes |
Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | Model NO.: | CC-OSFP08DR8-12D |
Speed: | 800g | Mode: | Osfp Sr8 |
Product Description

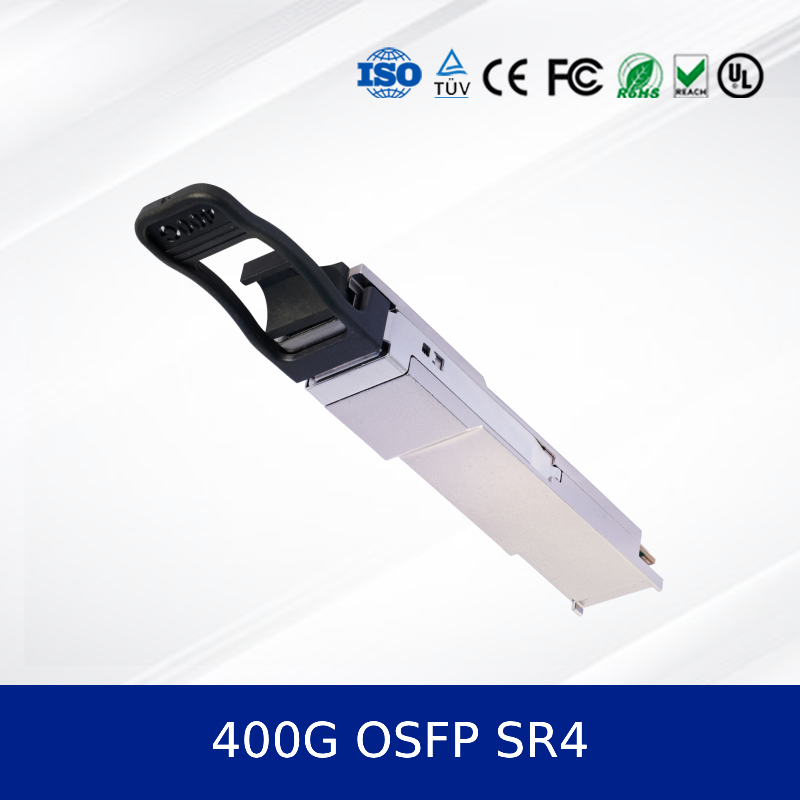

400G OSFP SR4 Transceiver
Features
l Hot-pluggable OSFP400G SR4 multimode transceiver l Compliant with OSFP RHS
l Compliant with CMIS Rev 5.0and above revision
l 4-channels of 100G-PAM4 electrical and optical modulation
l Maximum power consumption 8.5W with 4 channels and 6.5W with 2 channels l Single MPO-12 APC receptacles
l Up to 70m reach on OM3 and 100m reach on OM4
l Operates as a 200Gb/s NDR200 transceiver with 2-fiber splitter ends l Case operating temperature 0°C to 70°C
Applications
l InfiniBand NDR
l 400G SR4 applications with FEC
l 4 x 100GbE breakout application
Description
CC-OSFP04SR4-12D OSFP transceiver modules are designed for use in 400 Gigabit Ethernet or InfiniBand links up to 100m multi-mode fiber. They are compliant with the OSFP MSA, IEEE P802.3db/D3.0 and IEEE P802.3ck . Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038
Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
Operating Case Temperature | TOPR | 0 | - | 70 | ºC | |
Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
Instantaneouspeak current athotplug | ICC_IP | - | - | 3600 | mA | |
Sustainedpeak current athotplug | ICC_SP | - | - | 3000 | mA | |
MaximumPowerDissipation(400G) | PD | - | - | 8.5 | W | |
MaximumPowerDissipation(200G) | PD | - | - | 6.5 | W | |
MaximumPowerDissipation,Low PowerMode | PDLP | - | - | 1.5 | W | |
SignalingRateper Lane | SRL | - | 53.125 | - | GBd | PAM4 |
I2CClockRate | - | -100 | - | 400 | kHz | |
Power SupplyNoise Tolerance (10Hz -10MHz) | - | - | - | 66 | mV | |
RxDifferentialData OutputLoad | - | - | 100 | - | Ohm | |
OperatingDistance(OM3) | - | 2 | - | 70 | m | |
OperatingDistance(OM4) | - | 2 | - | 100 | m |
Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
Wavelength | λC | 844 | 850 | 863 | nm | |
RMS spectral width | λrms | 0.6 | nm | |||
AverageLaunchPower, eachlane | AOPL | -4.6 | - | 4.0 | dBm | 1 |
Outer OpticalModulation Amplitude (OMAouter), eachlane | TOMA | -2.6 | 3.5 | dBm | 2 | |
Transmitter andDispersionEye ClosureforPAM4(TDECQ), eachlane | TDECQ | - | - | 4.4 | dB | |
AverageLaunchPower of OFFTransmitter, eachlane | TOFF | - | - | -30 | dBm | |
ExtinctionRatio, eachlane | ER | 2.5 | - | dB | ||
RIN21.4OMA | RIN | - | - | -132 | dB/Hz | |
OpticalReturnLoss Tolerance | ORL | - | 12 | dB | ||
Transmitter Reflectance | TR | - | - | -26 | dB | 3 |
Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
Wavelength | λC | 842 | 850 | 863 | nm | |
Damage Threshold, average optical power, eachlane | AOPD | 5 | - | - | dBm | |
AverageReceivePower, eachlane | AOPR | -6.3 | - | 4.0 | dBm | |
ReceivePower (OMAouter), eachlane | OMAR | - | - | 3.5 | dBm | |
ReceiverReflectance | RR | - | - | -26 | dB | |
Receiver Sensitivity (OMAouter), eachlane | SOMA | - | - | -4.4 | dBm | 1 |
StressedReceiver Sensitivity(OMAouter), eachlane | SRS | - | - | -1.8 | dBm | 2 |
Conditions of stressedreceiver sensitivity test | ||||||
Stressed eyeclosure forPAM4 | SECQ | 4.4 | dB | |||
OMAouterof each aggressorlane | OMAouter | 3.5 | dBm |
Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
AC common-mode output Voltage(RMS) | - | - | 25 | mV | ||
Differential output Voltage(Longmode) | - | - | 845 | mV | ||
Differential output Voltage(Short mode) | - | - | 600 | mV | ||
Near-endEyeheight, differential | 70 | - | - | mV | ||
Far-endEyeheight, differential | 30 | - | - | mV | ||
Far endpre-cursorratio | -4.5 | - | 2.5 | % | ||
Differential TerminationMismatch | - | - | 10 | % | ||
TransitionTime(min,20%to80%) | 8.5 | - | - | ps | ||
DC common modeVoltage | -350 | - | 2850 | mV |




Packing & Delivery
All products are packed in brand-new, original and sealed packaging. From production to shipment, they have not been opened. This ensures that the products you receive are in perfect condition. During the packaging process, we use professional cushioning materials such as high-density EPE pearl cotton and anti-static air bubble film to build multiple protective barriers for the products. Whether it's routers, switches or precise server components, they can be properly protected in an environment that is shockproof, moisture-proof and anti-static. Our professional logistics team strictly follows standardized packaging procedures, uses customized hard cardboard boxes, and reinforces them with cross-wrapped tapes to ensure the outer packaging is sturdy and durable.
When shipping, we offer a variety of flexible transportation methods for you to choose from: priority air express with delivery to major cities around the world within 48 hours; cost-effective international dedicated logistics covering 100+ countries and regions; and maritime services for bulk goods, equipped with professional container reinforcement plans. The entire transportation process is tracked in real time by the logistics information system, and you can check the product location at any time by entering the order number. In addition, we provide a one-year warranty service for all products. If any non-human damage occurs during transportation, we will immediately arrange for free return or exchange, allowing you to shop with peace of mind without any worries.
When shipping, we offer a variety of flexible transportation methods for you to choose from: priority air express with delivery to major cities around the world within 48 hours; cost-effective international dedicated logistics covering 100+ countries and regions; and maritime services for bulk goods, equipped with professional container reinforcement plans. The entire transportation process is tracked in real time by the logistics information system, and you can check the product location at any time by entering the order number. In addition, we provide a one-year warranty service for all products. If any non-human damage occurs during transportation, we will immediately arrange for free return or exchange, allowing you to shop with peace of mind without any worries.
Company Profile

Company Introduction
Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.



CERTIFICATE DISPLAY /corporate strength
We have product certifications such as CE, FCC, RoHS, UL, etc., ensuring the high quality of our products.

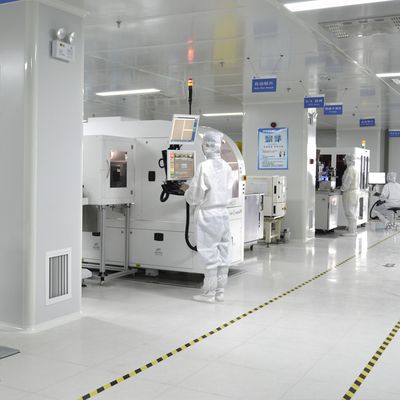

PRODUCTION / Workshop
Large-scale factory processing and manufacturing, with professional operation throughout the entire process to ensure product quality. Professional technical support and on-site construction can provide relevant supply support and deployment for different projects or requirements








FAQ
Q1: What can you buy from us?
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.
Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.
Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.
Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.
Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
Want to Know more details about this product
