Reliable 800g Osfp Dr8 CC-OSFP08DR8-12D Transceiver for High-Performance Data Transmission
Product Details:
| Place of Origin: | China |
| Brand Name: | own |
| Certification: | CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004 |
| Model Number: | 800G OSFP 112 DR4 CC-OSFP08DR8-12D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Face to face/bulk price |
| Packaging Details: | outer box |
| Delivery Time: | Spot goods 3-7 days; Customization 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | CC-OSFP08DR8-12D | Support Network: | Ethernet |
|---|---|---|---|
| Information Content: | Data | Condition: | New |
| Speed: | 800g | Mode: | Osfp Sr8 |
| Transport Package: | Packing | Specification: | 400*265*100mm |
| Trademark: | Optmodule | Origin: | China |
| Production Capacity: | 50000 | Hot-pluggable): | Yes |
| Supply Voltage: | 3.3 V | Operating Case Temperature: | Commercial 0–70 °C; 10G Offers Industrial –40–85 °C Option. |
| Management / Diagnostics: | High-speed: CMIS Rev 5.0+ With I²C; 10G: SFF-8472 DDM With I²C. | Applications: | Data-center Ethernet, HPC/InfiniBand NDR, Cloud/backbone & Metro, Access & Aggregation. |
| Compliance / Environmental: | CE/FCC/UL/TUV /RoHS | ||
Product Description

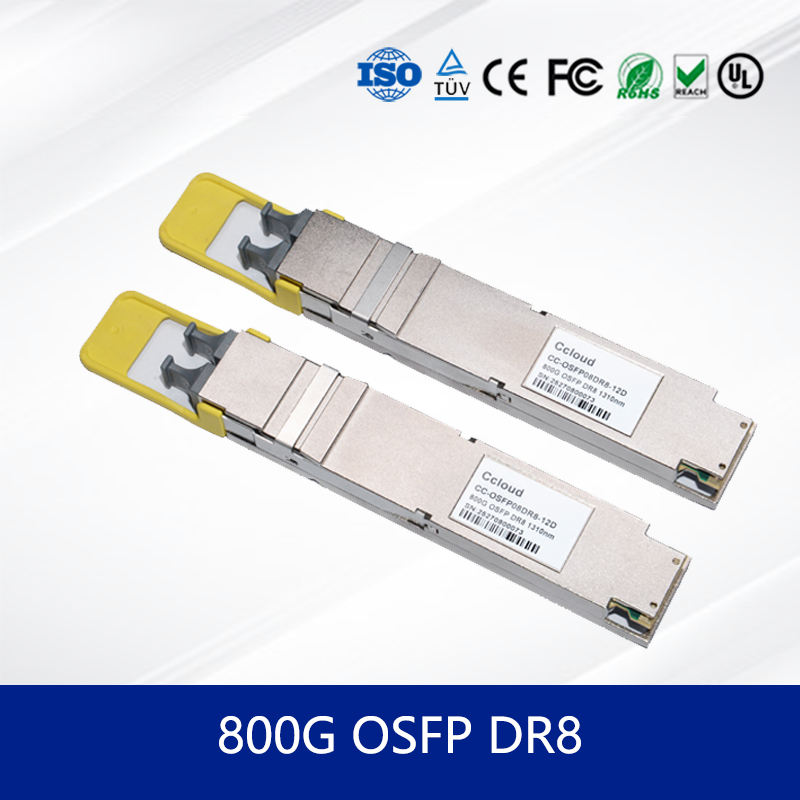

800G OSFP DR8 Optical Transceiver Module
The CC-OSFP08DR8-12D is an 800G OSFP DR8 optical transceiver module designed for next-generation data center and high-performance computing applications. It supports 8x100Gbps lanes over single-mode fiber, delivering high bandwidth and low power consumption in a hot-pluggable form factor.
Key Features
- Supports 800G DR8, 2x400G DR4, and 8x100G DR1 applications
- Low power consumption under 14.6W
- Hot-pluggable OSFP form factor with dual MTP8/APC connectors
- Operates over single-mode fiber up to 500m
- Compliant with OSFP MSA R5.05 and CMIS R5.2
Technology Overview
This optical transceiver module utilizes 53GBaud EML transmitters and PIN PD receivers operating in the 1310nm wavelength range. It employs PAM4 modulation and supports advanced digital diagnostics via I²C interface.
Working Principle
The module converts electrical signals into optical signals using eight independent lanes. Each lane operates at 53.125 GBaud, leveraging LVCML AC-coupled interfaces for high-speed data transmission over single-mode fiber.
Applications
- Data center interconnects
- High-performance computing clusters
- Cloud infrastructure networks
- AI and machine learning fabric
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 800G (8x100G) |
| Wavelength | 1304.5–1317.5 nm |
| Max Distance | 500m over SMF |
| Power Consumption | < 14.6W |
| Operating Temperature | 0°C to 70°C |
| Connector | Dual MTP8/APC |
Advantages
- Higher density and lower power per bit compared to QSFP-DD
- Compliant with latest MSA and CMIS standards for interoperability
- Robust thermal design for reliable operation in data center environments
Service & Support
We offer a 3-year warranty, global shipping, and 24/7 technical support. Custom configuration and integration services are available for large-scale deployments.
FAQ
Q: What is the maximum transmission distance?
A: Up to 500m over single-mode fiber.
Q: Is this module compatible with existing OSFP cages?
A: Yes, it is compliant with OSFP MSA R5.05.
Q: What is the typical power consumption?
A: Under 14.6W under full load.
Precautions
- Avoid bending fiber cables beyond minimum bend radius
- Ensure proper ESD handling during installation
- Operate within specified temperature and humidity ranges
